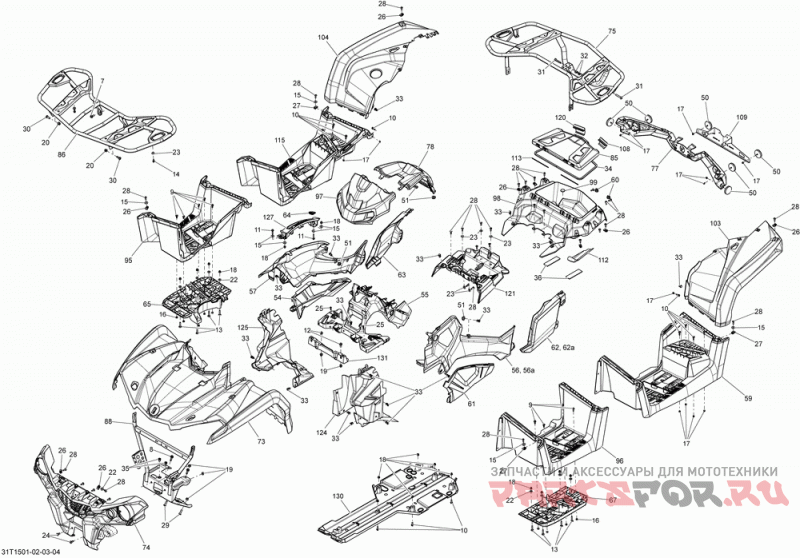

Кузовные принадлежности

Can-Am (Bombardier) Outlander L MAX 500 EFI

Can-Am (Bombardier)
#oem кодцена
7
207582044
Hex. Flanged Screw M8 X 20, Scotch Grip (10.000 Per Pack)
8
207582544
Hex. Flanged Screw M8 X 25, Scotch Grip (10.000 Per Pack)
9
207661684
Hex. Flanged Screw M6 X 16 (10.000 Per Pack)
10
207662054
Винт М6 Х 20
11
207663034
Hex. Flanged Screw M6 X 30 (5.000 Per Pack)
12
207682044
Hex. Flanged Screw M8 X 20 (10.000 Per Pack)
13
207763584
Carriage Bolt M6 X 35 (10.000 Per Pack)
14
210261280
Hex. Flanged Screw M6 X 12
15
224061201
Flat Washer (10.000 Per Pack)
16
232862412
Square Nut M6 (10.000 Per Pack)
17
233251434
Flanged Elastic Nut M5 (4.000 Per Pack)
18
233261434
Flanged Elastic Nut M6 (8.000 Per Pack)
19
233281434
Гайка М8
20
233281464
Elastic Flange Nut M8 (2.000 Per Pack)
22
234062410
Flat Washer 6 Mm (10.000 Per Pack)
23
234062670
Flat Washer (10.000 Per Pack)
24
236282084
Hex. Screw M8 X 20 Package Std (10.000 Per Pack)
25
241152060
Hex. Flanged Screw K50 X 20 (5.000 Per Pack)
26
250000048
Extruded Panel Nut M6 X 1.0 (10.000 Per Pack)
28
250000722
Torx Screw M6 X 20
29
250000197
Torx Truss Screw M8 X 30 (6.000 Per Pack)
30
250000248
Винт М8 Х 25
31
250000298
Torx Truss Screw M8 X 50 (2.000 Per Pack)
32
250100131
Elastic Flange Nut M8 (5.000 Per Pack)
33
293150089
Tuflok Plastic Rivet (25.000 Per Pack)
34
293250312
Neoprene Seal
35
293450307
Вставка
36
293830163
Rubber Pad
50
705002408
Красный Отражатель
51
705003264
Уплотнитель резиновый
54
705003444
Engine Cover
55
715002245
Dash Support Kit Model-europe, International
55
715001552
Dash Support Kit Model North America
56
705003446
Yellow Lh Lateral Panel Model- Yellow
56
705005237
Red Lh Pannel Model- Viper Red
56
705007530
Quarry Gray Lh Lateral Panel Model- Grey
57
705009116
Quarry Gray Rh Lateral Panel Model-grey
57
705009115
Viper Red Rh Lateral Panel Model-viper Red
57
705009019
Yellow Rh Lateral Panel Model-yellow
59
705003525
Lh Footboard, Max Model- Outlander-max
60
705003666
Резиновый патрубок
61
705004147
Lh Extension Pannel
62
715001897
Lh Extension Panel Model- Outlander-max
63
705004348
Rh Extension Panel Model- Outlander-max
64
705005003
Shiftgate Trim Model- Europe
65
705005253
Подножка правая
67
705005254
Подножка левая
73
715002669
Grey Front Fender Model-out-max Grey Europe
73
715002670
Grey Front Fender Model-out-max Grey International
73
715002667
Grey Front Fender Model-out-max Grey North America
73
715002684
Viper Red Front Fender Model-out-max Viper Red International
73
715002682
Viper Red Front Fender Model-out-max Viper Red North America
73
715002677
Yellow Front Fender Model-out-max Yellow Europe
73
715002678
Yellow Front Fender Model-out-max Yellow International
73
715002675
Yellow Front Fender Model-out-max Yellow North America
74
705009335
Front Facia Model-europe
74
705009334
Front Facia Model-north America, International
75
705005304
Black Rear Luggage Rack
77
705005576
Rear Facia Except Model- Europe
77
705007445
Rear Facia Model- Europe
78
715001765
Console Cap Kit
85
715002726
Couvercle Ass *storage Cover Model-europe International
85
715002724
Rear Cover Box Ass Y Model-north America
86
705006887
Black Front Luggage Rack
88
705009256
Structure Peint*paint Struct.
97
705007066
Gage Support
98
705007136
Boite Arriere *rear Cargo Box Model-outlander
98
715002729
Rear Box Ass Y Model-out-max Europe
98
715002727
Rear Box Ass Y Model-out-max North America
99
414859400
Cap (10.000 Per Pack)
103
715002694
Grey Lh Rear Fender Model-out-max Grey Europe
103
715002696
Grey Lh Rear Fender Model-out-max Grey International
103
715002692
Grey Lh Rear Fender Model-out-max Grey North America
103
715002717
Viper Red Lh Rear Fender Model-out-max Viper Red International
103
715002715
Viper Red Lh Rear Fender Model-out-max Viper Red North America
103
715002704
Yellow Lh Rear Fender Model-out-max Yellow Europe
103
715002706
Yellow Lh Rear Fender Model-out-max Yellow International
103
715002702
Yellow Lh Rear Fender Model-out-max Yellow North America
104
715002721
Grey Rh Rear Fender Model-grey Europe
104
705008501
Aile Ar. Rh *rear Fender Rh Model-grey North America
104
715002723
Viper Red Rh Rear Fender Model-viper Red International
104
705008499
Aile Ar. Rh *rear Fender Rh Model-viper Red North America
104
715002732
Camo Rh Rear Fender Model-viper Red North America
104
715002719
Yellow Rh Rear Fender Model-yellow Europe
104
705007210
Aile Ar. Rh *rear Fender Rh Model-yellow North America
108
705007448
Lh Box Rear Latch
109
705007449
Plate Support Model- Europe
112
705007487
Теплозащита
113
705007531
Retaining Rod
115
705003521
Rh Footboard, Max Model- Outlander-max 500
120
705007921
Rh Box Rear Latch
121
705007948
Seat Holder Model- Outlander-max
124
705007999
Lh Inner Fender
125
705008000
Rh Inner Fender
127
705005258
Indicateur *indicator Model- 500 North America, 500 International
127
705005259
Indicateur *indicator Model- 500 Europe
130
715002374
Protective Plate Kit Package Dps
131
705008427
Console Add On
56a
705006871
Heat Shield Model- Outlander-max
62a
705006870
Heat Shield Model- Outlander-max
