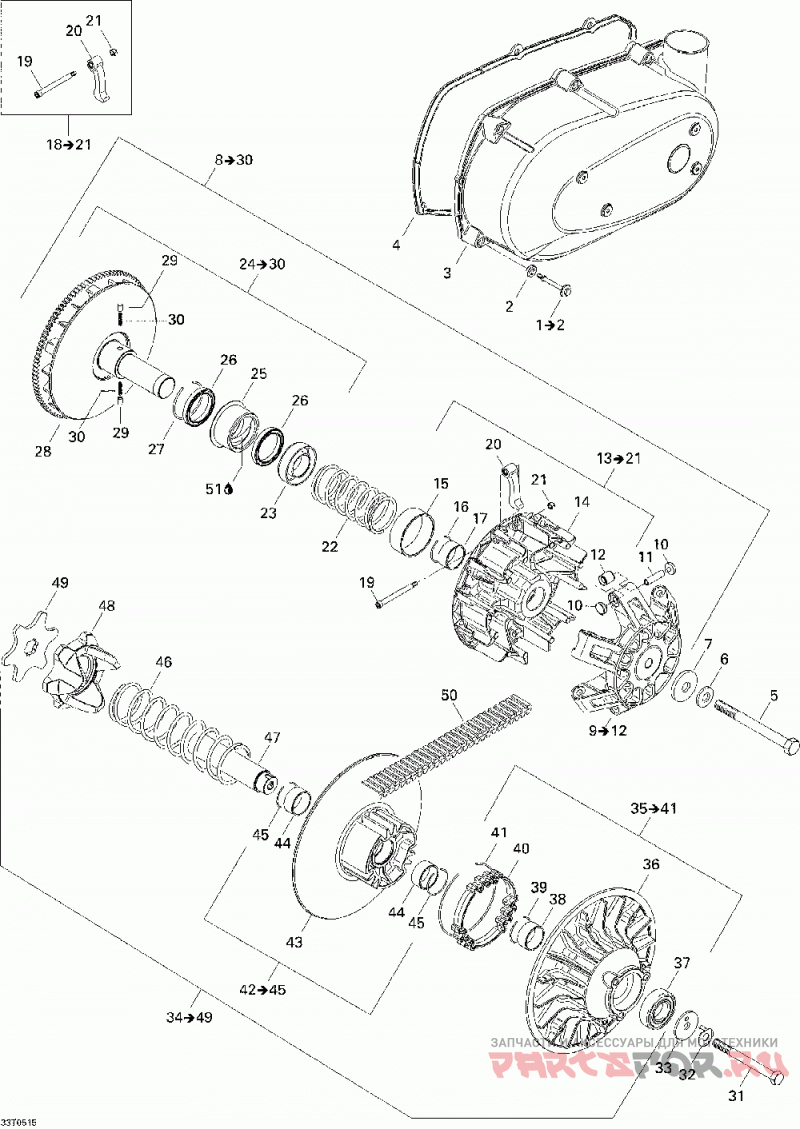

Belt and engine pulley system

Can-Am (Bombardier) Traxter Max CVT 650

Can-Am (Bombardier)
#oem кодцена
1
420240906
Vis Ajustement *screw-distance Includes 1 To 2
2
420260050
Douille Caout. *bushing-rubber
3
420610350
Couv.transmissi*cover-transmission
4
420630110
Joint *gasket
5
420641852
Vis Hex.m12x135*screw-hex.din.931
6
420627765
Шайба пружинная
7
420627920
Упорная шайба
8
420684340
Poulie Cvt Ass.*cvt Drive Assy. Includes 8 To 30
9
420280158
Coupole Regulat*cup-governor Assy Includes 9 To 12
10
420281293
Slider Shoe Set (1 Set = 12 Shoes)
11
420233891
Roulement *sleeve
12
420229586
Bute Rouleau *roller
13
420280147
Flasque Coulis.*half-outher Assy Includes 13 To 21
18
420248408
Centrifugal Lever Set Includes 18 To 21
21
420942025
Ecrou M5 *nut M5
22
420238164
Ressort Poulie *spring-compression
23
420627573
Седло пружины
24
420229577
Manchon Ressort*sleeve-spring Includes 24 To 30
24
420239133
Ressort *spring Includes 24 To 30
24
420245951
Anneau Retenu *ring-retaining Includes 24 To 30
24
420257195
Embrayage Pouli*clutch Includes 24 To 30
24
420280163
Flasque Fixe As*half-inner Assy Includes 24 To 30
24
420632372
Roulement Bille*bearing-ball Includes 24 To 30
25
420257195
Embrayage Pouli*clutch
26
420632372
Подшипник шариковый
27
420245951
Anneau Retenu *ring-retaining
29
420229577
Manchon Ressort*sleeve-spring
30
420239133
Пружина
31
420941906
Vis Hex.m10x110*screw-hex.m10x110
32
420245920
Rondelle Blocag*washer-tab
33
420627591
Шайба упорная
34
420220913
Arbre Poulie Me*shaft-driven Includes 34 To 49
34
420238171
Ressort Poulie *spring-compression Includes 34 To 49
34
420280173
Flasque Fixe *half-outher Assy Includes 34 To 49
34
420280186
Flasque Coulis.*half-inner Assy Includes 34 To 49
34
420280191
Came Poulie Men*rampe Includes 34 To 49
34
420627586
Plaque De Came *plate Includes 34 To 49
35
420280176
Flasque Fixe *half-outher Assy Includes 35 To 41
37
420932421
Подшипник шариковый
40
420660120
Engrenage Coupl*gear-torque
41
420245910
Стопорное кольцо
42
420280186
Flasque Coulis.*half-inner Assy Includes 42 To 45
46
420238171
Ressort Poulie *spring-compression
47
420220913
Arbre Poulie Me*shaft-driven
48
420280191
Came Poulie Men*rampe
49
420627586
Plaque De Came *plate
50
715900023
Courroie Entrai*belt-v
