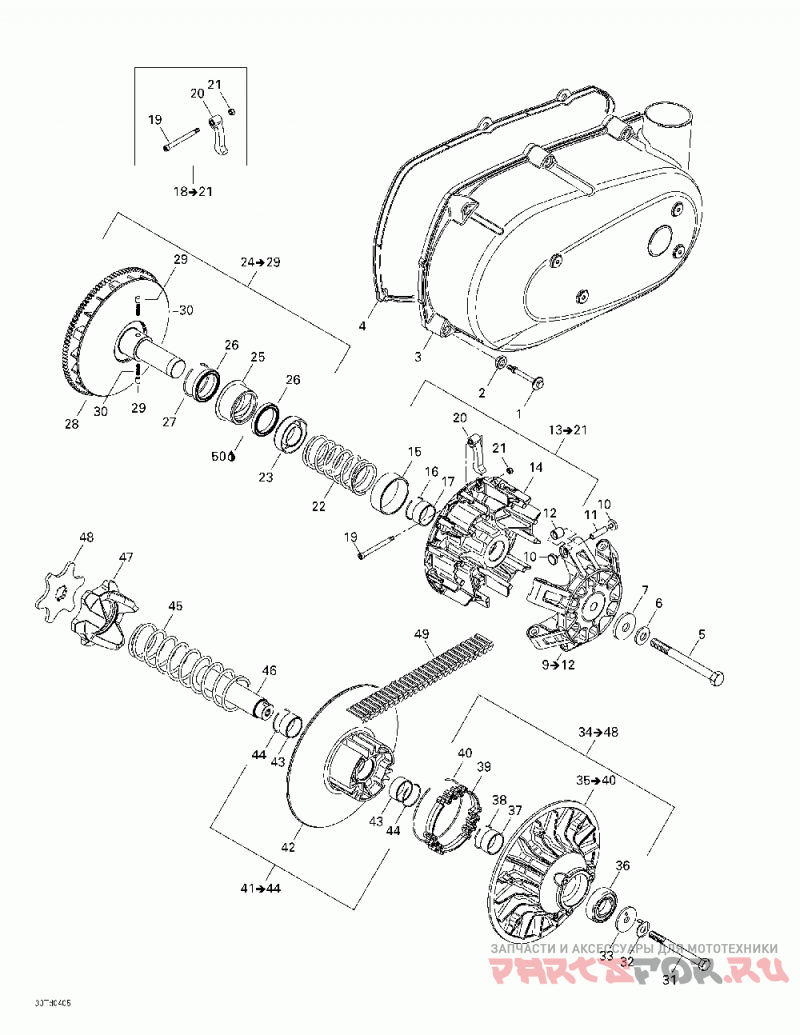

Belt and engine pulley

Can-Am (Bombardier) Quest Std

Can-Am (Bombardier)
#oem кодцена
1
420240906
Vis Ajustement *screw-distance
2
420260050
Douille Caout. *bushing-rubber
3
420610350
Couv.transmissi*cover-transmission
4
420630110
Joint *gasket
5
420641852
Vis Hex.m12x135*screw-hex.din.931
6
420627765
Шайба пружинная
7
420627920
Упорная шайба
8
420684340
Poulie Cvt Ass.*cvt Drive Assy. Includes 8 - 30.
420684345
Poulie Cvt Ass.*cvt Drive Assy.
9
420280158
Coupole Regulat*cup-governor Assy Includes 9 - 12.
10
420281293
Slider Shoe Set (1 Set = 12 Shoes)
11
420233891
Roulement *sleeve
12
420229586
Bute Rouleau *roller
13
420280148
Flasque Coulis.*half-outher Assy Includes 13 - 21.
18
420248431
Ens.levier Cent*set-lever Includes 18 - 21
18
420248408
Centrifugal Lever Set Includes 18 - 21
22
420238164
Ressort Poulie *spring-compression
420238166
Ressort Poulie *spring-compression
23
420627573
Седло пружины
24
420229577
Manchon Ressort*sleeve-spring Includes 24 - 29.
24
420239133
Ressort *spring Includes 24 - 29.
24
420245951
Anneau Retenu *ring-retaining Includes 24 - 29.
24
420257195
Embrayage Pouli*clutch Includes 24 - 29.
24
420280163
Flasque Fixe As*half-inner Assy Includes 24 - 29.
24
420632372
Roulement Bille*bearing-ball Includes 24 - 29.
25
420257195
Embrayage Pouli*clutch
26
420632372
Подшипник шариковый
27
420245951
Anneau Retenu *ring-retaining
29
420229577
Manchon Ressort*sleeve-spring
30
420239133
Пружина
31
420941906
Vis Hex.m10x110*screw-hex.m10x110
32
420245920
Rondelle Blocag*washer-tab
33
420627591
Шайба упорная
34
420220913
Arbre Poulie Me*shaft-driven Includes 34 - 48.
34
420238171
Ressort Poulie *spring-compression Includes 34 - 48.
34
420280173
Flasque Fixe *half-outher Assy Includes 34 - 48.
34
420280186
Flasque Coulis.*half-inner Assy Includes 34 - 48.
34
420280191
Came Poulie Men*rampe Includes 34 - 48.
34
420627586
Plaque De Came *plate Includes 34 - 48.
35
420280176
Flasque Fixe *half-outher Assy Includes 35 - 40.
36
420932421
Подшипник шариковый
39
420660120
Engrenage Coupl*gear-torque
40
420245910
Стопорное кольцо
41
420280186
Flasque Coulis.*half-inner Assy Includes 41 - 44.
45
420238171
Ressort Poulie *spring-compression
46
420220913
Arbre Poulie Me*shaft-driven
47
420280191
Came Poulie Men*rampe
48
420627586
Plaque De Came *plate
49
715900024
Ремень вариатора
715900023
Courroie Entrai*belt-v
