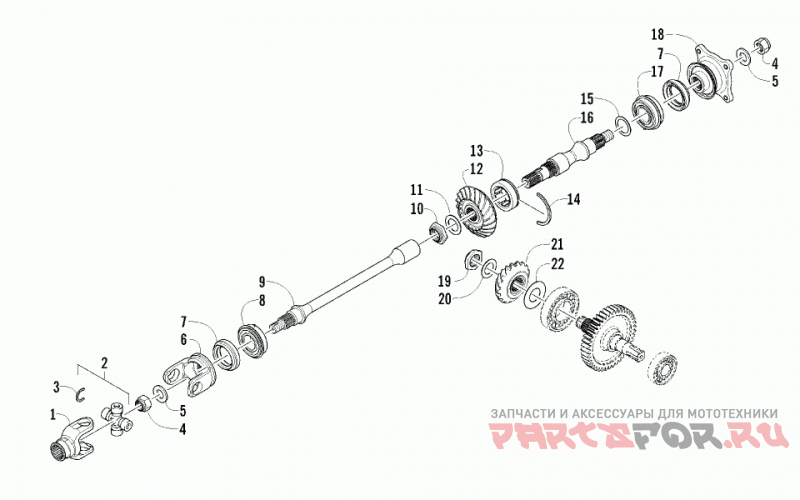

Secondary drive assembly [99955]

Arctic Cat ALTERRA TRV 500 RED [A2020THK4CUSM]

Secondary drive assembly [99955]

#

oem код

название

цена

1

YOKE,PROPELLER SHAFT-ASSY

YOKE,PROPELLER SHAFT-ASSY

10

NUT,SEC DRIVEN GEAR,22MM

NUT,SEC DRIVEN GEAR,22MM

11

WASHER,22.2X35.8X2.5

WASHER,22.2X35.8X2.5

12

GEAR, SECONDARY DRIVEN

GEAR, SECONDARY DRIVEN

13

BEARING,NEEDLE ROLLER-W/CUTOUT

BEARING,NEEDLE ROLLER-W/CUTOUT

14

C-RING-DRIVEN BEARING

C-RING-DRIVEN BEARING

15

SHIM M DRIVEN BEVEL GEAR T=1.2MM

SHIM M DRIVEN BEVEL GEAR T=1.2MM

15

SHIM N DRIVEN BEVEL GEAR T=1.25MM

SHIM N DRIVEN BEVEL GEAR T=1.25MM

15

SHIM A DRIVEN BEVEL GEAR T=0.6MM

SHIM A DRIVEN BEVEL GEAR T=0.6MM

15

SHIM B DRIVEN BEVEL GEAR T=0.65MM

SHIM B DRIVEN BEVEL GEAR T=0.65MM

15

SHIM C DRIVEN BEVEL GEAR T=0.7MM

SHIM C DRIVEN BEVEL GEAR T=0.7MM

15

SHIM D DRIVEN BEVEL GEAR T=0.75MM

SHIM D DRIVEN BEVEL GEAR T=0.75MM

15

SHIM E DRIVEN BEVEL GEAR T=0.8MM

SHIM E DRIVEN BEVEL GEAR T=0.8MM

15

SHIM F DRIVEN BEVEL GEAR T=0.85MM

SHIM F DRIVEN BEVEL GEAR T=0.85MM

15

SHIM G DRIVEN BEVEL GEAR T=0.9MM

SHIM G DRIVEN BEVEL GEAR T=0.9MM

15

SHIM H DRIVEN BEVEL GEAR T=0.95MM

SHIM H DRIVEN BEVEL GEAR T=0.95MM

15

SHIM I DRIVEN BEVEL GEAR T=1.0MM

SHIM I DRIVEN BEVEL GEAR T=1.0MM

15

SHIM J DRIVEN BEVEL GEAR T=1.05MM

SHIM J DRIVEN BEVEL GEAR T=1.05MM

15

SHIM K DRIVEN BEVEL GEAR T=1.1MM

SHIM K DRIVEN BEVEL GEAR T=1.1MM

15

SHIM L DRIVEN BEVEL GEAR T=1.15MM

SHIM L DRIVEN BEVEL GEAR T=1.15MM

16

SHAFT, SECONDARY DRIVEN - REAR

SHAFT, SECONDARY DRIVEN - REAR

17

BEARING,CONRAD-W/SNAPRING

BEARING,CONRAD-W/SNAPRING

18

FLANGE, OUTPUT JOINT - REAR

FLANGE, OUTPUT JOINT - REAR

19

NUT, HEX-COLLLARD (M20X1.5)

NUT, HEX-COLLLARD (M20X1.5)

2

CROSS/CUP (20MM) - SET (RB 1402-164)

CROSS/CUP (20MM) - SET (RB 1402-164)

20

WASHER THRUST 20MM

WASHER THRUST 20MM

21

GEAR, SECONDARY DRIVE

GEAR, SECONDARY DRIVE

22

SHIM DRIVEN BEVEL GEAR T=0.60MM

SHIM DRIVEN BEVEL GEAR T=0.60MM

22

SHIM DRIVEN BEVEL GEAR T=0.65MM

SHIM DRIVEN BEVEL GEAR T=0.65MM

22

SHIM DRIVEN BEVEL GEAR T=0.70MM

SHIM DRIVEN BEVEL GEAR T=0.70MM

22

SHIM DRIVEN BEVEL GEAR T=0.75MM

SHIM DRIVEN BEVEL GEAR T=0.75MM

22

SHIM DRIVEN BEVEL GEAR T=0.80MM

SHIM DRIVEN BEVEL GEAR T=0.80MM

22

SHIM DRIVEN BEVEL GEAR T=0.85MM

SHIM DRIVEN BEVEL GEAR T=0.85MM

22

SHIM DRIVEN BEVEL GEAR T=0.90MM

SHIM DRIVEN BEVEL GEAR T=0.90MM

22

SHIM DRIVEN BEVEL GEAR T=0.95MM

SHIM DRIVEN BEVEL GEAR T=0.95MM

22

SHIM DRIVEN BEVEL GEAR T=1.00MM

SHIM DRIVEN BEVEL GEAR T=1.00MM

22

SHIM DRIVEN BEVEL GEAR T=1.05MM

SHIM DRIVEN BEVEL GEAR T=1.05MM

22

SHIM DRIVEN BEVEL GEAR T=1.10MM

SHIM DRIVEN BEVEL GEAR T=1.10MM

22

SHIM DRIVEN BEVEL GEAR T=1.15MM

SHIM DRIVEN BEVEL GEAR T=1.15MM

22

SHIM DRIVEN BEVEL GEAR T=1.20MM

SHIM DRIVEN BEVEL GEAR T=1.20MM

22

SHIM DRIVEN BEVEL GEAR T=1.25MM

SHIM DRIVEN BEVEL GEAR T=1.25MM

3

RING,RETAINING-CROSS

RING,RETAINING-CROSS

4

Гайка

Гайка

5

WASHER 16mm

WASHER 16mm

6

YOKE,DRIVE OUTPUT-FRONT

YOKE,DRIVE OUTPUT-FRONT

7

SEAL,OIL-REAR SECONDARY DRIVEN SHAFT

SEAL,OIL-REAR SECONDARY DRIVEN SHAFT

8

BEARING,FR SEC DVN SHAFT (4X4)

BEARING,FR SEC DVN SHAFT (4X4)

9

SHAFT,SECONDARY DVN-FRONT (4X4)

SHAFT,SECONDARY DVN-FRONT (4X4)
