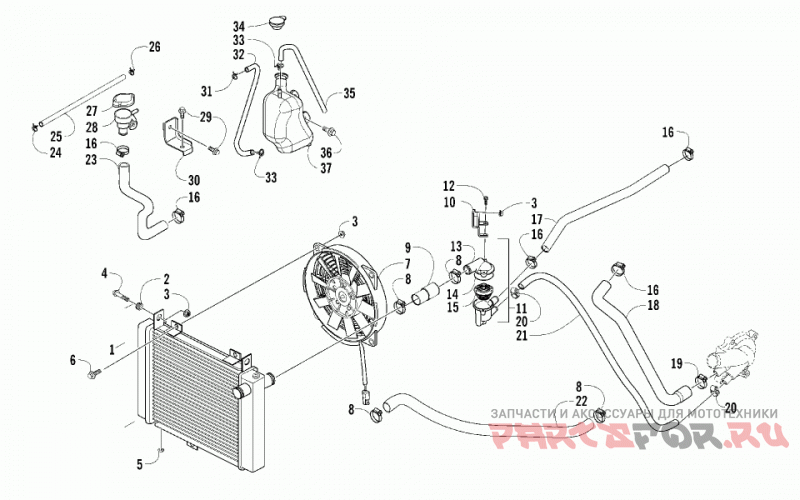

Cooling assembly [94383]

Arctic Cat ALTERRA XC 450 LOF GREEN [A2019KCK4CLFX]

Arctic Cat
#oem кодцена
1
3306-533
RADIATOR ASSY (inc. 2)
10
3306-260
BRKT THERMOSTAT STAY
11
0808-192
THERMOSTAT (2010 450) (inc. 12-15)
12
3303-384
BOLT FLANGE SH 6*25
13
0808-202
COVER THERMOSTAT
14
0830-205
O-RING 18.3X2
15
0813-050
Термостат в сборе
16
1423-008
CLAMP D27.5
17
3306-255
HOSE THERMOSTAT A
18
0410-216
HOSE,WATER B
19
3305-941
CLAMP,D28
2
0423-030
GROMMET(LV 11378)
20
0423-098
CLAMP,HOSE(NORMA FBS 17-12)
21
3306-258
HOSE THERMOSTAT B
22
3306-535
HOSE WATER
23
3306-536
HOSE,WATER
24
3304-161
CLIP B7 TUBE
25
3306-534
HOSE ASSY,WATER
26
3306-349
CLIP C8 TUBE
27
3303-748
CAP COMP
28
3303-738
UNIT RADIATOR
29
3304-553
BOLT FLANGE 6*12
3
3304-654
Гайка
30
3306-336
STAY,UNIT RADIATOR
31
3303-349
CLIP B10 TUBE
32
3306-340
HOSE ASSY,WATER
33
3304-163
CLIP C11 TUBE
34
3303-749
CAP RESERVE TANK
35
3306-339
HOSE ASSY DRAIN
36
3304-652
BOLT WASHER 6*12
37
3313-661
TANK,RESERVE
4
3313-166
BOLT,SHOULDER-9.6X9.55XM6 Z&Y
5
0423-028
Втулка
6
3304-587
BOLT WASHER 6*16
7
3323-204
FAN,COOLING-SMALL
8
3306-256
CLAMP WATER HOSE
9
3306-438
HOSE WATER
