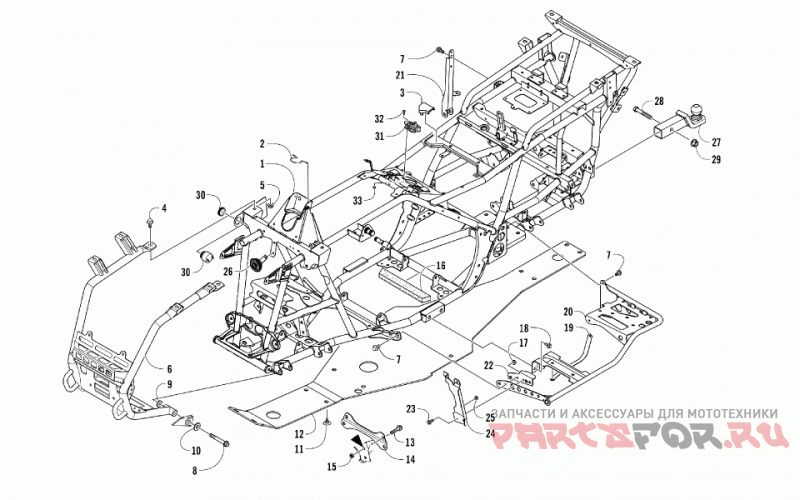

Frame and related parts [301981]

Arctic Cat ALTERRA TRV 700 XT EPS T3 BLUE [A2019TKT1P3TE]

Arctic Cat
#oem кодцена
1
7506-471
FRAME,MAIN-PTD BLK(2017 TRV H1 EURO)
10
8450-164
WASHER,FLAT-M10-11.12 X 10.85 Z&BLK
11
1423-109
Screw, Self-Tapping
12
2406-091
PANEL,BELLY
13
8409-025
Screw, Cap
14
2516-852
BRACE,A-ARM-PTD BLACK
15
1423-335
Гайка
16
0406-289
PAD,BATTERY-TOP RR
17
8424-802
NUT,HEX-FLG M8X1.25 CL8 Z&Y
18
8409-016
Screw, Cap
19
2406-217
STRAP,FOOTREST SUPPORT-LH
19
2406-216
STRAP,FOOTREST SUPPORT-RH
2
2416-401
CLIP,WIRE HARNESS
20
1506-849
FOOTREST,LH-WELDMENT
20
1506-848
FOOTREST,RH-WELDMENT
21
7506-382
BRACKET,FUEL TANK-PTD BLK
22
7506-777
BRACKET,FOOTREST-LWR-LH-PTD BLK
22
7506-776
BRACKET,FOOTREST-LWR-RH-PTD BLK
23
8408-820
Screw, Cap
24
7506-778
BRACKET,FOOTREST UPR-RH-PTD BLK
24
7506-779
BRACKET,FOOTREST-UPR-LH-PTD BLK
25
0406-877
BUMPER,SEAT
26
0430-131
Horn, Electric 12V
27
0541-856
MOUNT,HITCH BALL-50MM BALL
28
1423-128
SCREW,CAP-HHM 16X2X80CL8.8 Z&Y ISO 4014
29
1423-129
NUT,NYLOCK-M16X2.0 CL 8 Z&Y DIN 985
3
5406-439
COVER,FRAME
30
0630-243
Alarm, Reverse
31
0445-128
SWITCH,BATTERY-DISCONNECT
32
8477-616
Screw, Machine
33
0623-038
Гайка
4
8409-020
Screw, Cap
5
8427-002
Гайка
6
7506-332
BUMPER,FRONT-PTD BLK
7
8408-816
Screw, Cap
8
8411-075
SCREW,CAP-HFH M10X1.25X75 CL10.9 BLK
9
5406-160
SPACER,19X11X4 Z&C
