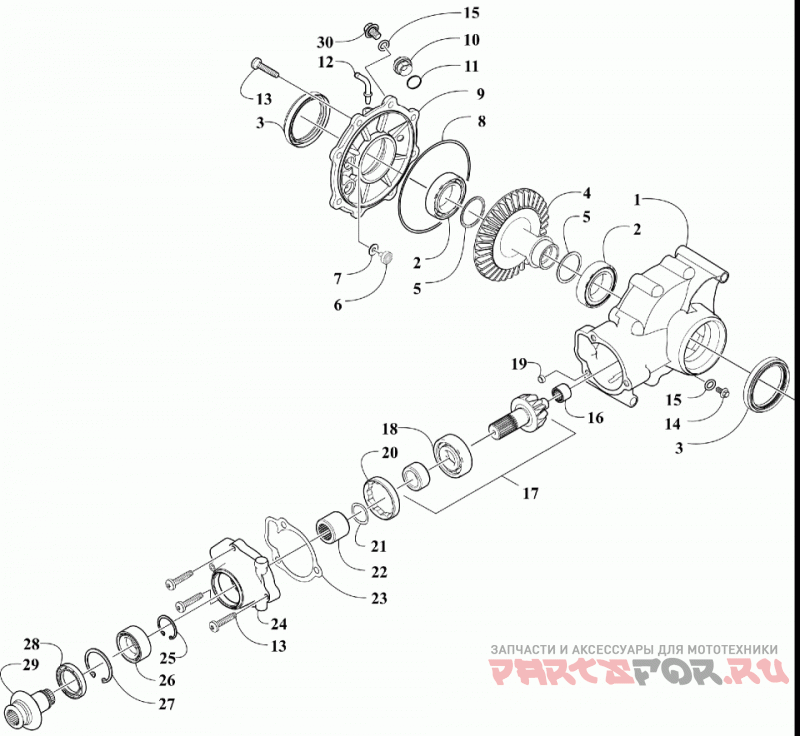

Rear drive gearcase assembly [303515]

Arctic Cat ALTERRA 450 BLUE [A2019KAK4CUSE]

Arctic Cat
#oem кодцена
0
3308-045
Complete Rear Drive Gearcase Assembly
1
3306-024
HOUSING GEARCASE-RR MACH
10
3306-035
PLUG FILL (inc. 11)
11
0423-154
Уплотнительное кольцо
12
3306-034
BARB 90 DEG
13
3305-513
BOLT FLANGE 8*40(G)
14
3306-027
PLUG DRAIN MAG (inc. one No. 15)
15
0423-153
Уплотнительное кольцо
16
3306-038
BEARING NEEDLE
17
3308-046
Gear, Pinion - Assembly - 11T (inc. 18-19)
18
3306-040
BRG BALL RADIAL 6305
19
3306-048
PIN DOWEL
2
3306-801
BEARING BALL
20
3306-042
Collar, Lock
21
3306-043
WASHER WAVE SPRING
22
3306-044
COLLAR SHAFT SPLINED
23
3323-234
Gasket, Flange
24
3306-049
Housing, Pinion
25
3306-045
RING RETAINING
26
3307-295
BEARING,BALL-DOUBLE ROW
27
3306-046
RING RETAINING
28
3308-047
Уплотнение
29
3306-047
SHAFT INPUT ASSEMBLY
3
3308-048
Уплотнение
30
3306-036
PLUG OIL LEVEL (inc. one No. 15)
4
3306-029
GEAR REAR (34T)
5
3306-132
SHIM 41*49*1.0
5
3306-133
SHIM 41*49*1.1
5
3306-134
SHIM 41*49*1.2
5
3306-135
SHIM 41*49*1.3
5
3306-136
SHIM 41*49*1.4
5
3306-137
SHIM 41*49*1.5
5
3306-138
SHIM 41*49*1.6
5
3306-139
SHIM 41*49*1.7
6
3306-031
BUTTON THRUST
7
3306-124
SHIM 6.3*18-1.0
7
3306-125
SHIM 6.3*18-1.1
7
3306-126
SHIM 6.3*18-1.2
7
3306-127
SHIM 6.3*18-1.3
7
3306-128
SHIM 6.3*18-1.4
7
3306-129
SHIM 6.3*18-1.5
7
3306-130
SHIM 6.3*18-1.6
7
3306-131
SHIM 6.3*18-1.7
8
3306-030
O-RING 150*2MM
9
3306-033
COVER GEARCASE-RR MACH
