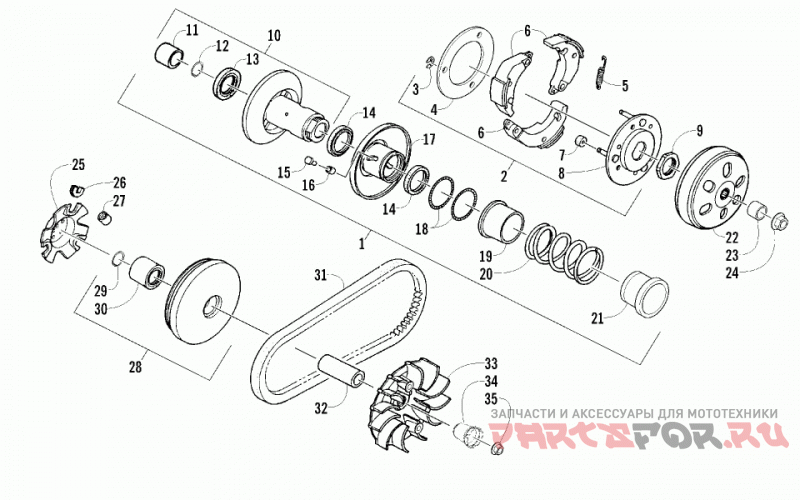

Clutch assembly [94283]

Arctic Cat ALTERRA 300 RED [A2019KAF2BUSM]

Arctic Cat
#oem кодцена
1
3303-781
PULLEY SUB ASSY (inc. 2-21)
10
3303-783
FACE ASSY DRIVEN (inc. 11-13)
11
3304-072
BRG NDL 22*29*18
12
3304-149
CIR CLIP IN 28MM
13
3304-070
BRG BALL RADIAL 6902U 15*28*7
14
3304-082
SEAL DRIVEN FACE 40*47*4
15
3303-786
PIN ROLLER GUIDE
16
3303-787
ROLLER GUIDE
17
3303-785
FACE COMP MOVABLE DRIVEN
18
3304-107
O-RING PINION CAP
19
3303-789
COLLAR SEAL
2
3303-775
PLATE ASSY DRIVE (inc. 3-8)
20
3303-788
SPRING DRIVEN FACE
21
3303-790
COLLAR SPG
22
3303-767
OUTER CLUTCH
23
3303-638
YOSS DRIVEN SHAFT
24
3304-023
NUT C FLANGE M12
25
3303-773
PLATE RAMP
26
3303-774
PIECE SLIDE
27
3303-772
ROLLER COMP WEIGHT
28
3303-770
FACE COMP MOVABLE DRIVE (inc. 29-30)
29
3304-160
CLIP PISTON PIN 33MM
3
3304-054
CIR CLIP 7MM
30
3303-771
BUSH 27*33*37
31
3303-782
BELT DRIVE
32
3303-769
BOSS DRIVEN FACE
33
3303-768
FACE DRIVE
34
3303-828
PLATE RACHET
35
3304-024
NUT,FLANGE 14MM
4
3306-188
PLATE CLUTCH SIDE
5
3303-778
SPRING CLUTCH
6
3303-779
WEIGHT CLUTCH
7
3303-780
RUBBER CLUTCH DAMPER
8
3303-776
PLATE COMP DRIVE
9
3304-025
SPECIAL NUT 28MM
