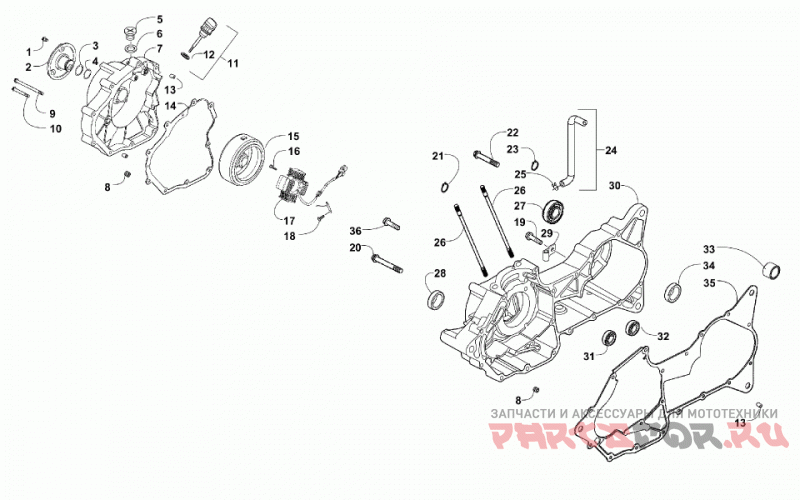

Right crankcase and cover assembly [301233]

Arctic Cat ALTERRA 150 RED [A2019KYC2BUSM]

Arctic Cat
#oem кодцена
1
3304-686
BOLT FLANGE SH 6*12
10
3307-051
BOLT FLANGE 6*45 **07 C.2005.07.01
11
3303-050
GAUGE ASSY OIL LEVEL (inc. 12)
12
3304-102
O-RING 18*3
13
3303-342
PIN DOWEL 10*16
14
3304-964
GASKET R COVER @ A
15
3304-965
FLYWHEEL COMP
16
3304-113
BOLT HEX 5*25
17
3304-967
STATOR COMP
18
3307-216
SCREW PAN 5*16
19
3305-945
BOLT FLANGE SH 6X32
2
3305-918
CAP R COVER
20
3304-904
BOLT FLANGE 6*60
21
3303-344
CIR CLIP EX/20MM
22
3307-053
BOLT FLANGE SH 6*40
23
3304-514
Пружинное стопорное кольцо
24
3304-889
TUBE ASSY MISSION BREATHER
25
3304-433
CLIP B14.5 TUBE
26
3304-008
BOLT STUD 8MM
27
3304-195
BRG RADIAL BALL 6205
28
3304-081
OIL SEAL 14*28*7
29
3304-972
CLAMPER CARB DRAIN
3
3304-971
O RING 26.5*2.0
30
3306-761
Crankcase - Right (inc. one No. 8)
31
3304-699
BRG BALL RADIAL 6204
32
3304-909
BRG BALL RADIAL 6302
33
3304-898
BRG NEEDLE 30*42*17
34
3304-425
OIL SEAL 24.8*52.2*7
35
3304-887
GASKET CRANK CASE @ A
36
3307-116
BOLT FLANGE 6*32
4
3304-596
O-RING 23X2.4
5
3304-012
CAP ACG A.C.G.
6
3304-099
O-RING 13.8*2.5
7
3304-963
Cover, Crankcase (inc. one No. 8)
8
3304-065
CONE TYPE PLUG 6*7
9
3304-192
BOLT FLANGE 6*125
