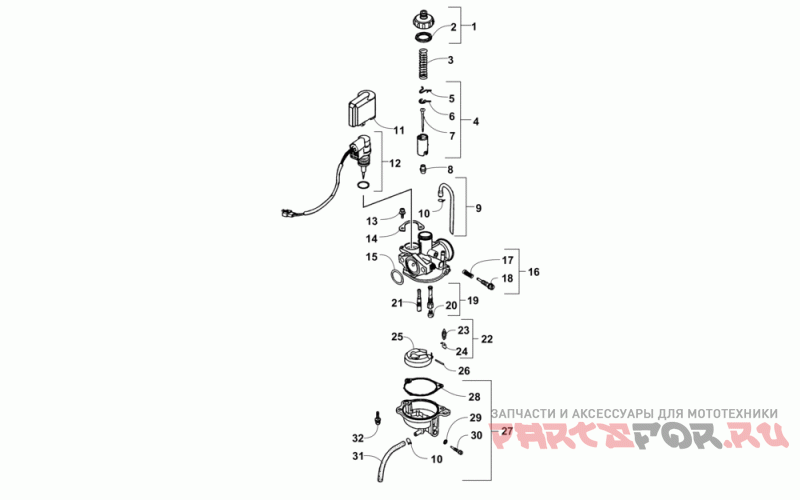

Карбюратор

Arctic Cat ATV 90 2X4 UTILITY Red (US)

Arctic Cat
#oem кодцена
-
3306-829
Carburetor-assy (90 Dvx/util)
1
3304-462
Top Set (inc. 2)
2
3304-463
Top Gasket
3
3304-464
Compr Spring
4
3306-905
Throttle Valve Assy (90cc) (inc. 5-7)
5
3304-465
Needle Clip Plate
6
3304-466
Bar Clip
7
3305-592
Needle Jet
8
3304-468
Needle Jet
9
3304-472
Rubber Pipe Assy (inc. One No. 10)
10
5507-161
Tube Clip
11
3304-469
Holder Cap
12
3304-470
Auto By-starter Assy
13
3307-128
Screw Wash (dark Green) (10 Per Pack)
14
3304-471
Set Plate
15
3304-488
Уплотнительное кольцо
16
3305-446
Adjust Screw Assy (inc. 17-18)
17
3305-444
Compr Spg
18
3304-478
Stop Screw
19
3304-479
Needle Jet Holder Assy (inc. 18 And 20)
20
3304-482
Jet (m.j)
20
5507-170
Main Jet (75) Optional
20
5507-220
Main Jet (78) Optional
21
3304-489
Jet (s.j)
22
3304-490
Float Valve Assy (inc. 23 And One No. 24)
23
3306-752
Float Valve Set
24
3304-484
Зажим
25
3304-491
Float Comp
26
3304-485
Float Arm Pin
27
3304-486
Float Chamber Body Assy (inc. One No. 10 And 28-31)
28
3305-569
Прокладка
29
3304-239
Кольцо (отпускается по 5 шт в упак.)
30
3304-243
Drain Screw Pan
31
3305-248
Трубка
32
3303-320
Screw Washer 4*14 **d19kt-006-1900 (5 Per Pack)
