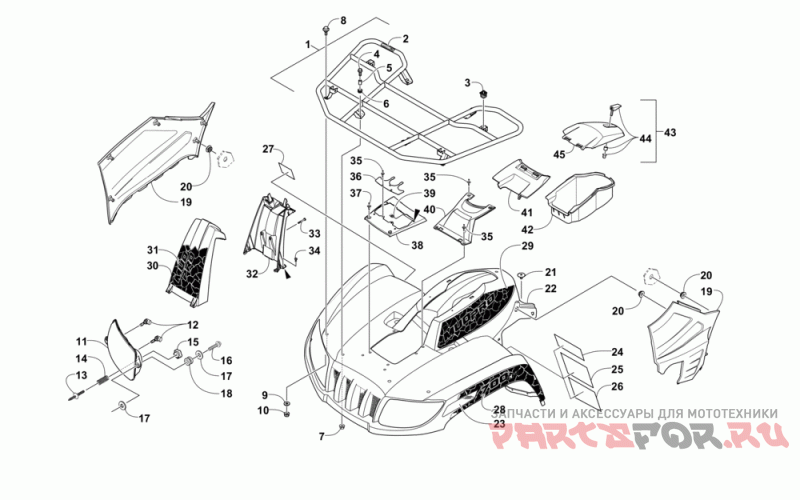

Передний багажник крыло и фара

Arctic Cat ATV 700 MUD PRO LTD Green (US), Green Intl (OS)

Arctic Cat
#oem кодцена
1
2506-643
Rack, Front-assembly (w/o Fence) (inc. 2-3)
2
0411-576
Decal, Warning-trv Rack (100 Lb.)
3
0441-592
Bushing, Rack Frame (10 Per Pack)
4
8410-835
Screw, Cap-hfh M8x1.25x35 Cl8.8 Rie Blk (4 Per Pack)
5
0423-669
Spacer, Steel (4 Per Pack)
6
0423-465
Grommet, Rubber-12.7x23.8125 (8 Per Pack)
7
8432-802
Nut, Hex-thk Nyl M8x1.25 Cl10 Z&y (8 Per Pack)
8
0423-654
Screw, Shoulder-hfh M6-1.0 X 18 Cl8.8 Blk (4 Per Pack)
9
8050-222
Washer, Flat- 1/4 X .734 X .063 Z&y (20 Per Pack)
10
8427-602
Гайка M6x1.0 (отпуск.по 5 шт)
11
0509-044
Headlight, Rh-assy (inc. 12)
11
0509-035
Headligh, Lh-assy (inc. 12)
12
0409-055
Bulb, Headlight-881
13
0423-514
Stud, Double End-m5x.8 (2 Per Pack)
14
0423-522
Spring, Adjustment-headlight (2 Per Pack)
15
0423-513
Knob, Adjustment-m5
16
0623-785
Винт 10-16 X 1
17
8050-217
Шайба 1/4 X .625 X .065 (отпускается по 10 шт)
18
0423-447
Grommet, Gauge Mount (3 Per Pack)
19
2406-300
Panel, Side-rh (a-body)
19
2406-419
Panel, Side-lh (650h1)
20
0423-678
Grommet, Panel-side (5 Per Pack)
21
0423-101
Винт - 6mm (отпуск.по 5 шт)
22
7506-037
Fender, Front-matte Black-assy (inc. 23-27)
23
0411-818
Reflector, Front-rh
23
0411-819
Reflector, Front-lh
24
1411-574
Decal, Warning-off Road Only
25
1411-804
Decal, Warning-age (16)
26
1411-932
Decal, Warning-general
27
4411-818
Decal, Warning-hill (atv)
28
5411-346
Decal, Side-front-700 Efi-rh
28
5411-347
Decal, Side-front-700 Efi-lh
29
5411-348
Decal, Side-upper-mud Pro-rh
29
5411-349
Decal, Side-upper-mud Pro-lh
30
7506-039
Cover, Snorkle Front-matte Black-ptd
31
5411-345
Decal, Snorkel-matte Black
32
7506-041
Cover, Snorkle Rear-matte Black-ptd
33
8468-645
Screw, Mach-tspnh M6x1.0x45 Cl8.8 Blk (10 Per Pack)
34
8468-616
Screw, Mach-tspnh M6x1.0x16 Cl8.8 Blk (4 Per Pack)
35
0623-362
Клепка пластик (5 шт в упаковке)
36
2416-100
Shield, Splash
37
0423-535
Клепка пластик (5 шт в упаковке)
38
2516-170
Cover, Radiator Access-routed
39
0423-577
Клипса (отпуск.по 5 шт)
40
1406-484
Cover, Steering Post
41
0470-513
Cover, Storage Box
42
1406-573
Box, Storage
43
2506-234
Lid, Storage Box-w/latch (inc. 44-45)
44
1406-599
Latch, Swell (southco)
45
0470-514
Lid, Storage Box
