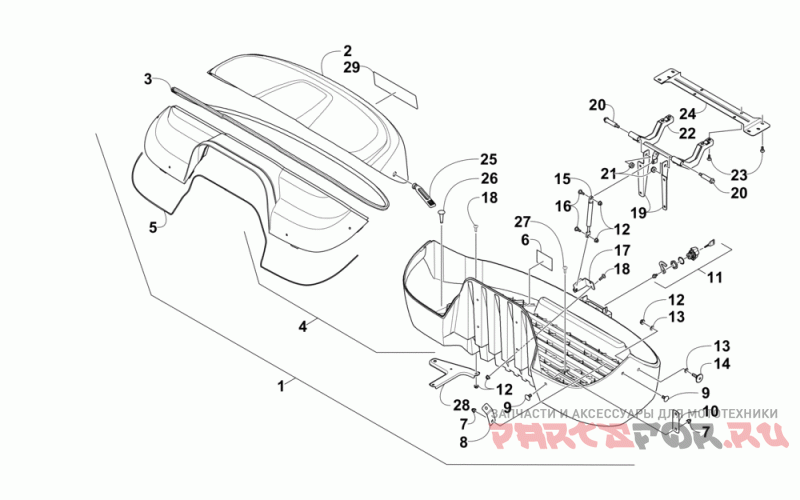

Кофр багажный

Arctic Cat TRV 700 LTD RED

Arctic Cat
#oem кодцена
1
2516-874
Box, Storage-vibe Met Red-assy W/pkg (inc. 2-25)
2
4506-961
Lid, Storage Box-vibe Met Red-rtd-ptd
3
2406-787
Seal, Lid-storage Box
4
4506-958
Bottom, Top-storage Box Assy-vibe Met Red (inc. 5-10)
4
4506-958
Bottom, Top-storage Box Assy-vibe Met Red (inc. 5-10)
5
2406-793
Seal, Top-storage Box
5
2406-793
Seal, Top-storage Box
6
1411-877
Decal, Warning Storage Box
6
1411-877
Decal, Warning Storage Box
7
0423-901
Nut, Hex Domed-m6 X 1.0 (4 Per Pack)
7
0423-901
Nut, Hex Domed-m6 X 1.0 (4 Per Pack)
8
2516-117
Plate, Mounting-storage Box-ptd
8
2516-117
Plate, Mounting-storage Box-ptd
9
0423-895
Bolt, Carriage-m6x13-z&b (8 Per Pack)
9
0423-895
Bolt, Carriage-m6x13-z&b (8 Per Pack)
10
2516-116
Plate, Mounting-storage Box-ptd
10
2516-116
Plate, Mounting-storage Box-ptd
11
2416-209
Latch, Lid (storage Box)
11
2416-209
Latch, Lid (storage Box)
12
8427-602
Гайка M6x1.0 (отпуск.по 5 шт)
12
8427-602
Гайка M6x1.0 (отпуск.по 5 шт)
13
8050-223
Washer, Flat (std) 1/4 Dia Blk (4 Per Pack)
13
8050-223
Washer, Flat (std) 1/4 Dia Blk (4 Per Pack)
14
1423-060
Screw, Shoulder Tstrh M6x1.0x25 Rie Bl (2 Per Pack)
14
1423-060
Screw, Shoulder Tstrh M6x1.0x25 Rie Bl (2 Per Pack)
15
2416-198
Spring, Gas-storage Box
15
2416-198
Spring, Gas-storage Box
16
0423-355
Винт m6-1.0 X 18-blk (отпускается по 4 шт )
16
0423-355
Винт m6-1.0 X 18-blk (отпускается по 4 шт )
17
2516-511
Bracket, Spring-wldmt
17
2516-511
Bracket, Spring-wldmt
18
8477-620
Screw, Mach-tstrh M6x1.0x20 Z&blk (4 Per Pack)
18
8477-620
Screw, Mach-tstrh M6x1.0x20 Z&blk (4 Per Pack)
19
2416-194
Hinge, Stationary-rh
19
2416-194
Hinge, Stationary-rh
19
2416-195
Hinge, Stationary-lh
19
2416-195
Hinge, Stationary-lh
20
0423-505
Screw, Shoulder-m8-1.25x45 (2 Per Pack)
20
0423-505
Screw, Shoulder-m8-1.25x45 (2 Per Pack)
21
8432-802
Nut, Hex-thk Nyl M8x1.25 Cl10 Z&y (8 Per Pack)
21
8432-802
Nut, Hex-thk Nyl M8x1.25 Cl10 Z&y (8 Per Pack)
22
2516-514
Hinge, Pivot-wldmt
22
2516-514
Hinge, Pivot-wldmt
23
8477-616
Screw, Mach-tstrh M6x1.0x16 Z&blk (5 Per Pack)
23
8477-616
Screw, Mach-tstrh M6x1.0x16 Z&blk (5 Per Pack)
24
2516-555
Brace, Lid - Ptd Black (storge Box)
24
2516-555
Brace, Lid - Ptd Black (storge Box)
25
1606-930
Strap, Holddown-hood
25
1606-930
Strap, Holddown-hood
26
2406-843
Plug, Bottom-box-storage
26
2406-843
Plug, Bottom-box-storage
27
0423-889
Screw, Cap-serr Hfh M6 X 1.0 X 20 Blk (5 Per Pack)
27
0423-889
Screw, Cap-serr Hfh M6 X 1.0 X 20 Blk (5 Per Pack)
28
2506-926
Bracket, Flag-safety-painted
28
2506-926
Bracket, Flag-safety-painted
29
1411-725
Decal, Graphic-rear(front)(black Outline)
29
1411-725
Decal, Graphic-rear(front)(black Outline)
