Сцепление для квадроциклов Arctic Cat TRV 550 XT EFT BLUE (2015)

Москва и регионы России

Уважаемые покупатели оригинальных запчастей для техники ARCTIC CAT!
Сроки поставки запчастей марки ARCTIC CAT сейчас нормализовались и сравнимы со сроками поставки запчастей других американских марок. Однако у дилеров этой марки возможны сообщения про отказы и бэк-ордеры с большой задержкой – до месяца. Мы предупреждаем вас об этой особенности работы дилеров, приносим вам извинения за это неудобство и уверяем вас, что никак не можем повлиять на этот момент. Учитывайте пожалуйста это при заказе деталей!

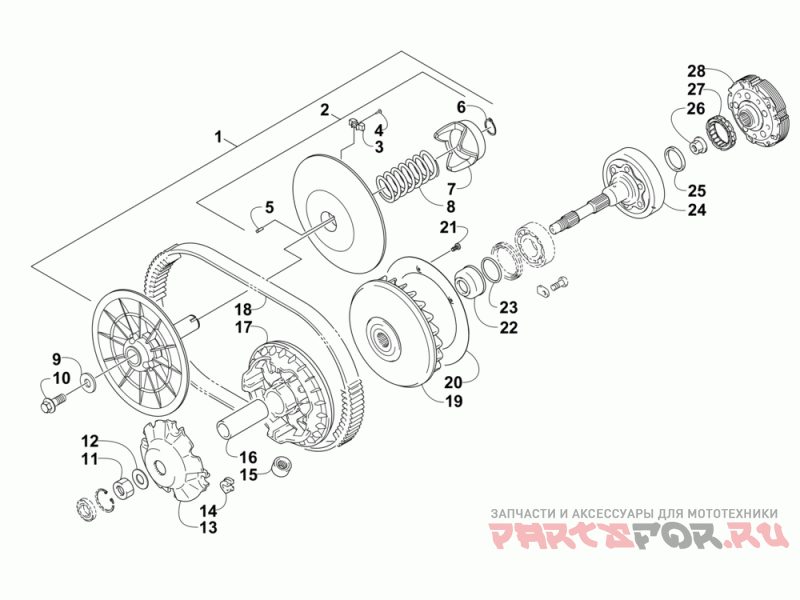

Сцепление

Arctic Cat TRV 550 XT EFT BLUE

Сцепление

#

oem код

название

цена

1

Pulley, Driven-assy(lp3) (inc. 2-8)

Pulley, Driven-assy(lp3) (inc. 2-8)

2

Pulley, Driven-uncalibrated (inc. 3-6)

Pulley, Driven-uncalibrated (inc. 3-6)

3

Shoe, Cam-driven Pulley

Shoe, Cam-driven Pulley

4

Screw, Cam Shoe

Screw, Cam Shoe

5

Key-1/4"

Key-1/4"

6

Snap Ring, External-35.2 Id

Snap Ring, External-35.2 Id

7

Cam, Driven Clutch-45 Deg (diecast)

Cam, Driven Clutch-45 Deg (diecast)

8

Spring-driven Clutch Black

Spring-driven Clutch Black

9

Washer, Flat-7/16 X 1 1/2 X 3/16 Z&c (4 Per Pack)

Washer, Flat-7/16 X 1 1/2 X 3/16 Z&c (4 Per Pack)

10

Screw, Cap-hfh M12x1.25x40 Cl10.9w/2353 (2 Per Pack)

Screw, Cap-hfh M12x1.25x40 Cl10.9w/2353 (2 Per Pack)

11

Гайка m20x1.5

Гайка m20x1.5

12

Washer, Clutch Plate

Washer, Clutch Plate

13

Plate, Movable Drive-z-

Plate, Movable Drive-z-

14

Damper, Movable Drive-z-

Damper, Movable Drive-z-

15

Roller, Movable Drive(blue)(pm 21g)

Roller, Movable Drive(blue)(pm 21g)

15

Roller, Movable Drive(blue)(pm 21g)

Roller, Movable Drive(blue)(pm 21g)

16

Spacer, Movable Drive Face 91 -z-

Spacer, Movable Drive Face 91 -z-

16

Spacer, Movable Drive Face 91 -z-

Spacer, Movable Drive Face 91 -z-

17

Sheave, Movable Drive-asm-z-

Sheave, Movable Drive-asm-z-

17

Sheave, Movable Drive-asm-z-

Sheave, Movable Drive-asm-z-

18

Ремень

Ремень

18

Ремень

Ремень

19

Sheave, Stationary-drive-mach-z-

Sheave, Stationary-drive-mach-z-

19

Sheave, Stationary-drive-mach-z-

Sheave, Stationary-drive-mach-z-

20

Shroud, Stat Sheave-drive

Shroud, Stat Sheave-drive

20

Shroud, Stat Sheave-drive

Shroud, Stat Sheave-drive

21

Screw, Self Tap Thd Lk-tspnh 10-24x.375 (6 Per Pack)

Screw, Self Tap Thd Lk-tspnh 10-24x.375 (6 Per Pack)

21

Screw, Self Tap Thd Lk-tspnh 10-24x.375 (6 Per Pack)

Screw, Self Tap Thd Lk-tspnh 10-24x.375 (6 Per Pack)

22

Spacer, Fixed Drive

Spacer, Fixed Drive

22

Spacer, Fixed Drive

Spacer, Fixed Drive

23

O-ring, Intake Manifold

O-ring, Intake Manifold

23

O-ring, Intake Manifold

O-ring, Intake Manifold

24

Clutch Housing, 6-plate Assy- Rz

Clutch Housing, 6-plate Assy- Rz

24

Clutch Housing, 6-plate Assy- Rz

Clutch Housing, 6-plate Assy- Rz

25

Seal, Drum Shaft

Seal, Drum Shaft

25

Seal, Drum Shaft

Seal, Drum Shaft

26

Nut, Hf-ccw M18x1.5

Nut, Hf-ccw M18x1.5

26

Nut, Hf-ccw M18x1.5

Nut, Hf-ccw M18x1.5

27

Clutch, One Way Asm

Clutch, One Way Asm

27

Clutch, One Way Asm

Clutch, One Way Asm

28

Clutch Centrifical-6 Plate-z 2

Clutch Centrifical-6 Plate-z 2

28

Clutch Centrifical-6 Plate-z 2

Clutch Centrifical-6 Plate-z 2
