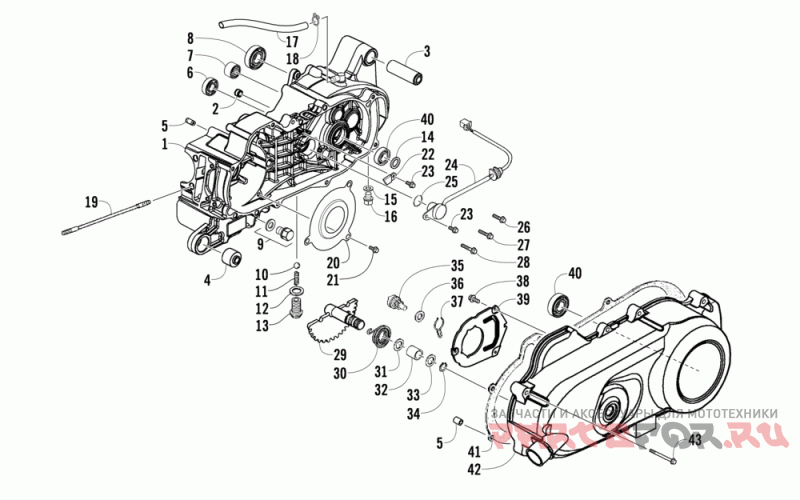

Left crankcase and cover assembly

Arctic Cat ATV 90 2X4 UTILITY RED

Arctic Cat
#oem кодцена
1
3305-795
Crankcase, Set-left (inc. 2-4)
2
3304-597
Bush 8*12*8 (5 Per Pack)
3
3305-906
Cushion, Rubber Bush Rear
4
3303-402
Rubber Bush Eng Hanger
5
3303-341
Pin Dowel 8*14 (2 Per Pack)
6
3304-905
Bearing Ball Radial 6202
7
3304-074
Brg Needle 20*26*16
8
3304-699
Brg Ball Radial 6204
9
3304-052
Bolt Drain Plug Special
10
3304-205
Ball Steel 12
11
3304-063
Spg Bolt Seat Inner
12
3304-021
Washer Bolt Seat
13
3304-109
Bolt Seat Ball Stopper
14
3303-297
Oil Seal 20*32*6 **0030 C.97.07.26.
15
3303-278
Washer 8mm **0000 C.99.07.07. (5 Per Pack)
16
3303-365
Bolt Flange 8*12
17
3305-798
Tube, Transmission Breather
18
3303-714
Clip Breather Tube
19
3303-248
Bolt B Stud 8*190.5 (2 Per Pack)
20
3304-460
Insulator Dust
21
3303-381
Bolt Flange Sh 6*12 (5 Per Pack)
22
3304-040
Plate Brg Holder
23
3304-187
Bolt Flange 6*10 (10 Per Pack)
24
3305-797
Switch, Gear Change (inc. 25)
25
3305-776
O Ring 15.5x2.5 (4 Per Pack)
26
3303-385
Bolt Flange Sh 6*28 (5 Per Pack)
27
3303-370
Bolt Flange 8*45 (golden) (5 Per Pack)
28
3303-372
Bolt Flange 8*60 (5 Per Pack)
29
3303-119
Spinder Comp Kick **9000 C.97.09.18.
30
3303-122
Spring Kick Return **(0) C.2001.06.30
31
3303-121
Collar Kick Boss **0000 C.97.09.18.
32
3303-120
Bush Kick Spindle **6010-m1 C.97.09.18 (2 Per Pack)
33
3303-276
Washer Kick Spindle **6000 C.97.07.26 (5 Per Pack)
34
3303-345
Cir Clip Ex 14mm (10 Per Pack)
35
3303-118
Kick Driven Gear Comp **9000 C.97.09.18.
36
3303-272
Washer Thrust 10mm **0000 C.99.07.07. (5 Per Pack)
37
3303-117
Spg Kick Driven Gear **9000 C.98.10.09
38
3303-391
Bolt Special 5*10 (5 Per Pack)
39
3303-009
Plate Cover **(0) C.2003.01.13
40
3303-465
Brg Ball Radial 6204/20*47*14
41
3303-013
Gasket L Cover A
42
3305-907
Cover L Side
43
3303-386
Bolt Flange Sh 6*35 (5 Per Pack)
