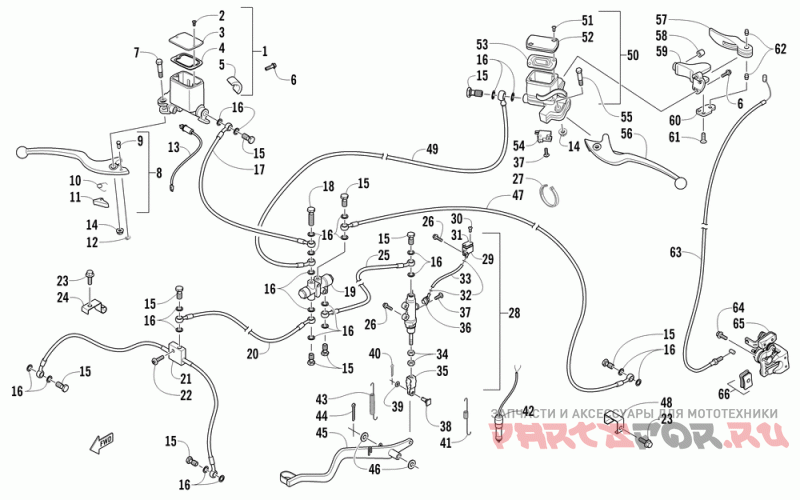

Hydraulic and parking brake assemblies

Arctic Cat ATV 300 DVX EU GREEN

Arctic Cat
#oem кодцена
1
3305-385
Cylinder Set Fr (inc. 2-5)
2
3303-339
Pin Split 3.0*25 (5 Per Pack)
3
3305-381
Cap M/c
4
3305-407
Диафрагма
5
3305-983
Holder M/c
6
3304-746
Bolt Flange 6*22 (g)
7
3303-254
Bolt Handle Lever **(0) C.98.04.02
8
3306-588
Lever Set Brk (inc. 9-11)
9
3305-384
Pin Park
10
3305-383
Пружина
11
3305-382
Стопор
12
3304-680
Зажим
13
3305-373
Sw Assy Fr Stop
14
3304-654
Nut Flange 6mm (5 Per Pack)
15
3303-257
Oil Bolt 10*22 **6110-m1 C.97.07.26. (5 Per Pack)
16
3303-284
Washer Oil Bolt **(1) C.98.06.01. (5 Per Pack)
17
3304-741
Hose Assy Fr Brk (ace)
18
3304-674
Oil Bolt 10*33
19
3304-792
Pgv Assy (ace)
20
3305-379
Hose Assy Brk
21
3305-636
Hose Assy Fr Brk
22
3304-176
Bolt Flange 8*28
23
3304-553
Bolt Flange 6*12 (5 Per Pack)
24
3303-919
Clamp Fr Brk Hose (2 Per Pack)
25
3305-375
Hose Comp Rr Brk
26
3304-551
Bolt Flange 6*22 (2 Per Pack)
27
0123-788
Стяжка кабеля (отпуск.по 10 шт)
28
3304-797
Master Cylinder Assy Rr(ace) (inc. 29-36 And One No. 37)
29
3303-896
Brake Reservoir (inc. 30-31)
30
3304-119
Screw Flat 4*40 (10 Per Pack)
31
3304-332
Cap M/c
32
3303-895
Clamp M/c Oil Hose (2 Per Pack)
33
3304-308
Hose M/c
34
3304-128
Nut Hex 8mm (5 Per Pack)
35
3303-928
Joint Brk Rod
36
3304-307
Штуцер
37
3303-321
Screw Washer 4*12 (5 Per Pack)
38
3303-927
Pin Comp Brk Rod
39
3304-050
Washer 7*12 (5 Per Pack)
40
3304-141
Pin Split 2.0*12 (10 Per Pack)
41
3303-929
Spg Set Brk Pedal (2 Per Pack)
42
3304-685
Rear Stop Switch
43
3303-855
Spring Stop Sw
44
3304-143
Pin Split 2.5*30 (2 Per Pack)
45
3304-335
Pedal Comp Rr Brake
46
3304-139
Washer Plain 14*26*2.3 (10 Per Pack)
47
3304-742
Hose Assy Rr Brk (ace)
48
3303-891
Clamper Rr Brk Hose (2 Per Pack)
49
3304-743
Hose Assy Rr Brk (ace)
50
3305-376
Cylinder Set Rr Master (inc. 51-53)
51
3303-318
Screw Flat 4*12 (5 Per Pack)
53
3303-925
Диафрагма
54
3303-141
Sw Assy Rr Stop
55
3304-017
Bolt L Steering Handle (2 Per Pack)
56
3305-388
Lever L Strg Handle
57
3305-665
Lever, Parking Brake
58
3305-669
Stopper, Parking Brake
59
3305-644
Shaft Comp Change
60
3305-667
Bracket, Parking Brake
61
3305-668
Винт
62
3305-666
Pivot, Parking Brake
63
3305-663
Cable, Parking Brake
64
3305-895
Bolt, Flange 8*20
65
3306-595
Caliper Assy Rear (inc. 66)
66
3305-882
Brake Pad Assy
