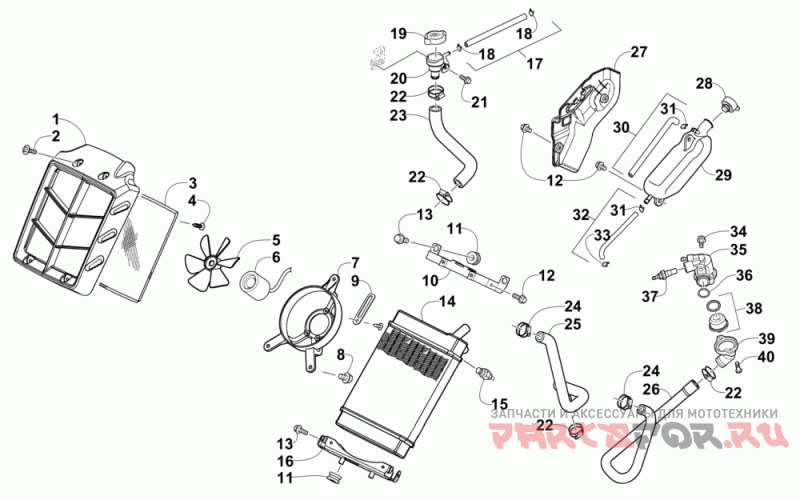

Охлаждение

Arctic Cat ATV 300 DVX EU GREEN

Arctic Cat
#oem кодцена
1
3305-973
Duct, Cooling Air (fascia, Radiator)
2
3303-263
Bolt Wash 5*12 **9000 C.97.07.26. (2 Per Pack)
3
3303-744
Grid Radiator
4
3304-123
Screw Washer 4mm (5 Per Pack)
5
3303-741
Fan Cooling
6
3303-742
Motor Assy Fan
7
3303-739
Shroud Comp
8
3304-586
Bolt Washer 6*20 (2 Per Pack)
9
3304-155
Clip 2*100 (5 Per Pack)
10
3303-983
Stay Radiator Up
11
3303-239
Rubber Tail Light
12
3304-587
Bolt Washer 6*16 (5 Per Pack)
13
3304-116
Bolt Washer 6*12 (5 Per Pack)
14
3303-737
Radiator Comp
15
3303-862
Sw Assy Thermo
16
3303-984
Stay Radiator Bottom
17
3304-066
Tube Assy Water Pump-pressure (inc. 18)
18
3304-161
Clip B7 Tube
19
3303-748
Cap Comp
20
3303-738
Unit Radiator
21
3304-553
Bolt Flange 6*12 (5 Per Pack)
22
3304-165
Clip Water Hose
23
3303-761
Hose Water G Radiator-pressure
24
3304-164
Clip Tube
25
3303-759
Hose Water D Radiator-eng
26
3303-760
Hose Water Eng-radiator
27
3305-974
Protector Master Cylinder
28
3303-749
Cap Reserve Tank
29
3304-692
Tank Reserve
30
3303-745
Hose Assy Drain (inc. 31)
31
3304-163
Clip C11 Tube (5 Per Pack)
32
3304-255
Hose Assy Reserve Tank Pressure Valve (inc. 33 And One No. 31)
33
3303-349
Clip B10 Tube (5 Per Pack)
34
3303-617
Bolt Flange Sh 6*18
35
3303-756
Case Comp Thermostat
36
3304-094
O-ring 17.8*1.9 (2 Per Pack)
37
3303-861
Thermo Unit Assy
38
3303-755
Thermo Stat Assy
39
3303-757
Cover Thermostat
40
3304-118
Screw Pan 5*16 (10 Per Pack)
