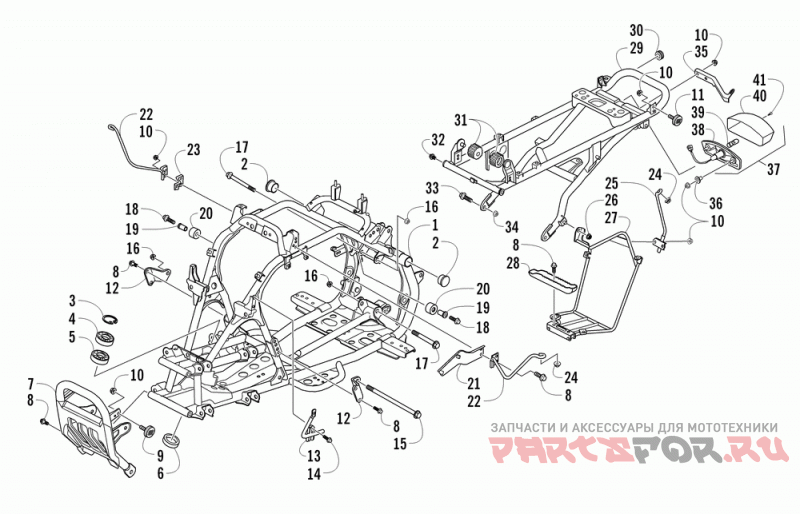

Frame, taillight, and related parts assembly

Arctic Cat ATV 300 DVX CAT GREEN

Arctic Cat
#oem кодцена
1
3304-338
Body Comp Frame
2
3304-658
Cap Pipe
3
3304-150
Cir Clip In 40 (5 Per Pack)
4
3304-203
Bearing Ball Radial 6203/17*40*12
5
3303-298
Oil Seal 22*35*7
6
3304-064
Dust Seal 27*40*6
7
3305-270
Pipe Comp Fr Bumper
8
3304-543
Bolt Flange 8*16 (4 Per Pack)
9
3305-272
Reflex Reflector (amber) Amber
10
3304-654
Nut Flange 6mm (5 Per Pack)
11
3305-273
Reflex Reflector (red) Red
12
3303-938
Bracket Eng Hanger
13
3304-352
Stay R Fr Fender (black)
13
3304-353
Stay L Fr Fender
14
3304-553
Bolt Flange 6*12 (5 Per Pack)
15
3304-184
Bolt Flange 10*160 (5 Per Pack)
16
3304-031
Nut U 10mm (5 Per Pack)
17
3304-183
Screw, Cap-hfh M10x1.25x85 (5 Per Pack)
18
3304-408
Bolt Flange 8*38 (5 Per Pack)
19
3304-701
Collar Chain Rubber
20
3304-362
Rubber Chain Drive (2 Per Pack)
21
3303-935
Stay Catch Tank
22
3304-350
Stay Rh Fr Fender Support
22
3304-351
Stay Lh Fr Fender Support
23
3303-740
Stay Unit Radiator
24
3304-417
Nut, Stamped (4 Per Pack)
25
3304-348
Stay R Rr Fender Support
25
3304-349
Stay L Rr Fender Support
26
3303-332
Nut Flange 8mm (4 Per Pack)
27
3304-354
Stay R Rr Fender
27
3304-356
Stay L Rr Fender
28
3304-346
Rnfct Floor
29
3305-271
Pipe Comp Frame Rr
30
3303-239
Rubber Tail Light
31
3304-245
Cushion Seat (2 Per Pack)
32
3304-435
Bolt Flange 10*12 (10 Per Pack)
33
3304-181
Bolt Flange 10*25 (2 Per Pack)
34
3303-333
Nut Flange 10mm
35
3304-345
Rr Stay Rh Rear Fender
35
3304-344
Rr Stay Lh Rear Fender
36
3303-226
Collar Fr Fender
37
3303-420
Light Assy Tail (inc. 38-41)
38
3303-422
Base Comp Tail Light
39
3303-849
Bulb Tail & Stop 12v21w/5w
40
3304-283
Lens Comp Tail Light
41
3304-537
Tapping Screw M4x35l
