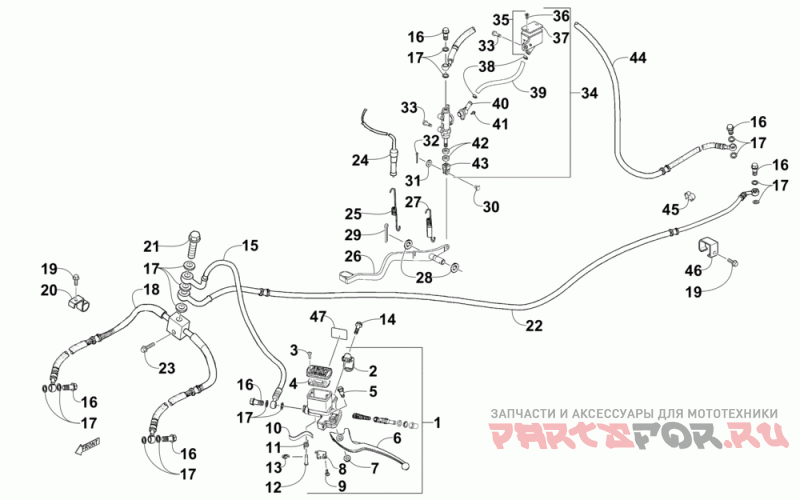

Гидравлический тормозной механизм

Arctic Cat ATV 300 DVX CAT GREEN

Arctic Cat
#oem кодцена
1
3304-676
M/c Set Rr (inc. 2-4)
2
3305-983
Holder M/c
3
3303-318
Screw Flat 4*12 (5 Per Pack)
4
3303-925
Диафрагма
5
3304-017
Bolt L Steering Handle (2 Per Pack)
6
3304-369
Lever L Strg Handle
7
3304-654
Nut Flange 6mm (5 Per Pack)
8
3303-141
Sw Assy Rr Stop
9
3303-321
Screw Washer 4*12 (5 Per Pack)
10
3304-442
Lever Parking
11
3304-678
Spring Return
12
3304-679
Штифт
13
3304-680
Зажим
14
3304-746
Bolt Flange 6*22 (g)
15
3304-321
Hose Assy C/p Fr Brk
16
3303-257
Oil Bolt 10*22 **6110-m1 C.97.07.26. (5 Per Pack)
17
3303-284
Washer Oil Bolt **(1) C.98.06.01. (5 Per Pack)
18
3305-681
Hose Assy Fr Brk
19
3304-553
Bolt Flange 6*12 (5 Per Pack)
20
3303-919
Clamp Fr Brk Hose (2 Per Pack)
21
3304-674
Oil Bolt 10*33
22
3304-319
Hose Assy Combine Brk
23
3304-176
Bolt Flange 8*28
24
3304-685
Rear Stop Switch
25
3303-855
Spring Stop Sw
26
3304-335
Pedal Comp Rr Brake
27
3303-929
Spg Set Brk Pedal (2 Per Pack)
28
3304-139
Washer Plain 14*26*2.3 (10 Per Pack)
29
3304-143
Pin Split 2.5*30 (2 Per Pack)
30
3303-927
Pin Comp Brk Rod
31
3304-050
Washer 7*12 (5 Per Pack)
32
3304-141
Pin Split 2.0*12 (10 Per Pack)
33
3304-551
Bolt Flange 6*22 (2 Per Pack)
34
3304-306
Master Cylinder Assy Rr (inc. 35-43)
35
3303-896
Brake Reservoir (inc. 36-37)
36
3304-119
Screw Flat 4*40 (10 Per Pack)
37
3304-332
Cap M/c
38
3303-895
Clamp M/c Oil Hose (2 Per Pack)
39
3304-308
Hose M/c
40
3304-307
Штуцер
41
3303-321
Screw Washer 4*12 (5 Per Pack)
42
3304-128
Nut Hex 8mm (5 Per Pack)
43
3303-928
Joint Brk Rod
44
3304-299
Hose Assy Rr Brk
45
3304-675
Clamp Tube
46
3303-891
Clamper Rr Brk Hose (2 Per Pack)
47
1411-865
Decal, Warning-brake Lever Lock
