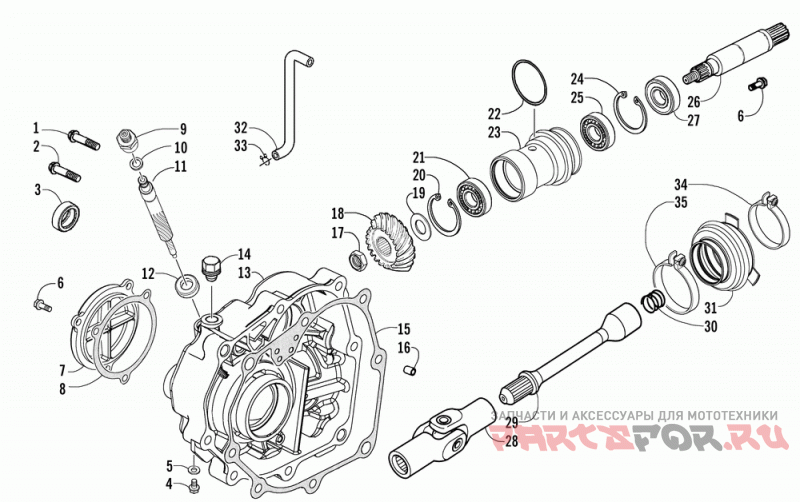

Transmission case assembly

Arctic Cat ATV 300 2X4 UTILITY RED

Arctic Cat
#oem кодцена
1
3303-615
Bolt Flange 8*40
2
3303-370
Bolt Flange 8*45 (golden) (5 Per Pack)
3
3304-081
Oil Seal 14*28*7
4
3303-365
Bolt Flange 8*12
5
3303-591
Washer 8mm
6
3303-383
Bolt Flange Sh 6*20 (5 Per Pack)
7
3303-763
Cap Mission
8
3303-766
Gasket Mission Cover
9
3304-108
Bolt Tachometer
10
3304-047
Thrust Washer 8mm
11
3303-662
Gear Tachometer
12
3304-077
Oil Seal 12*18*3
13
3303-762
Case Comp Mission (inc. One No. 12)
14
3304-052
Bolt Drain Plug Special
15
3303-765
Gasket Mission Case
16
3303-342
Pin Dowel 10*16 (4 Per Pack)
17
3304-131
Nut Hex 16mm
18
3303-802
Gear Bevel Driven
19
3304-624
Shim Driven Bevel Gear 20.2 X 30 X 0.6
19
3304-625
Shim Driven Bevel Gear 20.2 X 30 X 0.65
19
3304-626
Shim Driven Bevel Gear 20.2 X 30 X 0.7
19
3304-627
Shim Driven Bevel Gear 20.2 X 30 X 0.75
19
3304-628
Shim Driven Bevel Gear 20.2 X 30 X 0.8
19
3304-629
Shim Driven Bevel Gear 20.2 X 30 X 0.85
19
3304-630
Shim Driven Bevel Gear 20.2 X 30 X 0.9
19
3304-631
Shim Driven Bevel Gear 20.2 X 30 X 0.95
19
3304-632
Shim Driven Bevel Gear 20.2 X 30 X 1.0
19
3304-633
Shim Driven Bevel Gear 20.2 X 30 X 1.05
19
3304-634
Shim Driven Bevel Gear 20.2 X 30 X 1.1
19
3304-635
Shim Driven Bevel Gear 20.2 X 30 X 1.15
20
3304-151
Cir Clip In 56
21
3304-069
Brg Ball Radial 63/22
22
3304-105
O-ring 58*4*3.1
23
3303-764
Case Final Shaft
24
3304-152
Cir Clip In 58
25
3304-071
Brg Ball Radial 62/28
26
3304-642
Shaft Final
27
3304-087
Oil Seal 28*59*7
28
3303-869
Joint York
29
3303-868
Вал гребного винта
30
3303-870
Spg Propeller Shaft
31
3303-945
Boot Joint
32
3303-630
Tube Mission Breather (inc. 33)
33
3304-433
Clip B14.5 Tube
34
3304-058
Band 90 Connecting Tube
35
3304-059
Ba 66 Boot
