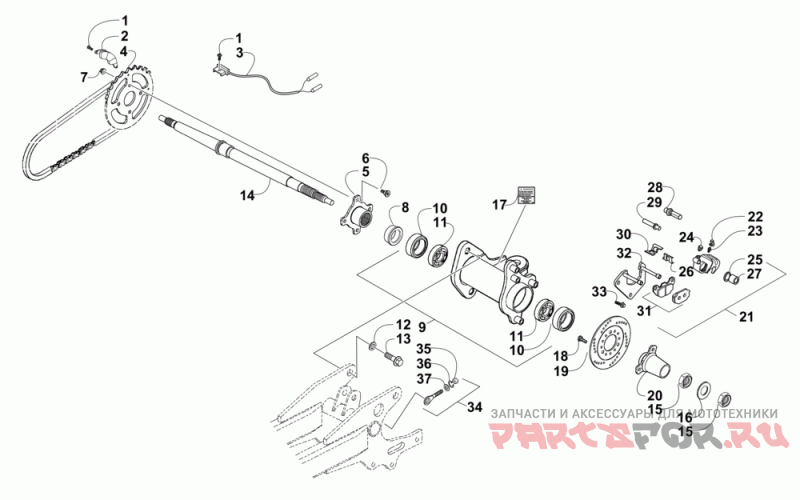

Rear axle and brake assembly

Arctic Cat ATV 150 UTILITY RED

Arctic Cat
#oem кодцена
1
3305-924
Screw Washer 5*12
2
3305-069
Sensor Magnet Wheel Rpm
3
3305-068
Sensor Wheel Rpm
4
3305-722
Sprkt Final Driven
5
3305-129
Holder Sprocket
6
3305-142
Bolt Stud 10*20
7
3304-031
Nut U 10mm (5 Per Pack)
8
3305-132
Collar Rr Side
9
3305-133
Hub Assy Rr (inc. 10-11)
10
3305-144
Seal Dust
11
3305-145
Bearing Ball Radial 6907
12
3303-281
Washer 12.2*28*4 (5 Per Pack)
13
3303-379
Bolt Flange 12*28mm (5 Per Pack)
14
3305-131
Shaft Rr Wheel
15
3305-141
Nut Rr Shaft
16
3305-127
Disk Spring
18
3303-253
Bolt Disk
19
3303-162
Disk Rr Brake
20
3305-138
Bracket Brake Disk
21
3307-089
Caliper Assy Rear (inc. 22-32)
22
3304-331
Cap Bleeder (5 Per Pack)
23
3307-091
Screw Bleeder
24
3304-334
Plug (2 Per Pack)
25
3306-585
Пыльник
26
3305-380
Seal Piston (foot Brake)
27
3307-092
Поршень
28
3304-589
Bush Boot Pin
29
3304-590
Пыльник
30
3304-315
Spring Pad (2 Per Pack)
31
3303-908
Колодки комплект
32
3307-090
Bracket Rr
33
3303-256
Bolt Flange 8*28
34
3305-194
Drive Chain Adjuster Assy (inc. 35-37)
35
3304-125
Nut Hex 8mm (2 Per Pack)
36
3303-607
Washer Spring 8mm (10 Per Pack)
37
3304-135
Washer Plain 8mm (4 Per Pack)
