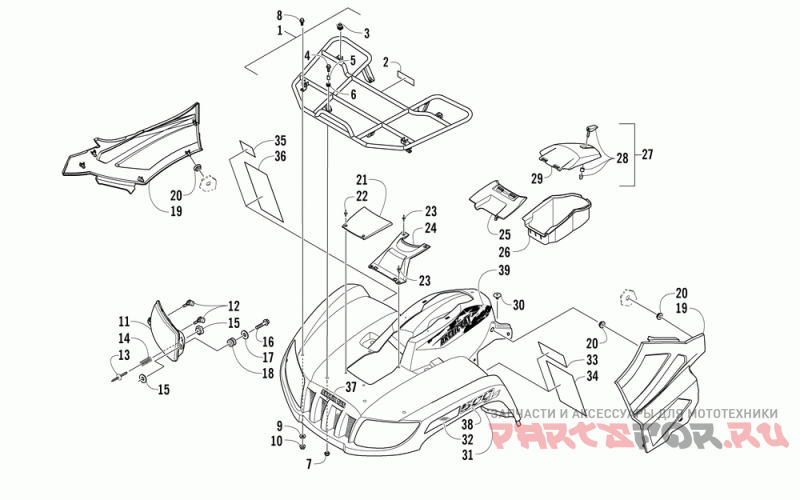

Передний багажник крыло и фара

Arctic Cat TRV 500

Arctic Cat
#oem кодцена
1
2506-106
Rack, Front W/fence-assembly (inc. 2-3)
1
4506-322
Fender, Rear Red-assy(trv) (inc. 2-6) (4cusr/4cosr)
1
4506-324
Fender, Rear Marsh-assy(trv) (inc. 2-6) (4cusg/4cosg)
1
2516-339
Rack, Rear-trv Assy (plas) (inc. 2)
2
1411-201
Decal, Warning-rack(50 Lb.)
2
1411-592
Reflector, Rear-rh
2
1411-593
Reflector, Rear-lh
2
0411-576
Decal, Warning-trv Rack (100 Lb.)
3
0441-592
Bushing, Rack Frame (10 Per Pack)
3
1411-251
Decal, Warning Seat-passenger
3
8410-640
Screw, Cap-hfh M6x1.0x40 Cl8.8 Rie Blk (4 Per Pack)
4
8050-223
Washer, Flat (std) 1/4 Dia Blk (4 Per Pack)
4
1411-269
Decal, Warning Passenger Trv
4
8410-835
Screw, Cap-hfh M8x1.25x35 Cl8.8 Rie Blk (4 Per Pack)
5
0423-669
Spacer, Steel (4 Per Pack)
5
2411-176
Decal, Warning-tire Psi H2 Trv (7psi)
5
0423-891
Nut, Hex Domed-self Locking-m6x1.0 (2 Per Pack)
6
8410-645
Screw, Cap-hfh M6x1.0x45 Cl8.8 Rie Blk
6
2411-257
Decal, Warning-passenger
6
0423-465
Grommet, Rubber-12.7x23.8125 (8 Per Pack)
7
8432-802
Nut, Hex-thk Nyl M8x1.25 Cl10 Z&y (8 Per Pack)
7
1411-725
Decal, Graphic-rear(front)(black Outline)
7
2506-926
Bracket, Flag-safety-painted
8
2516-169
Rack, Rear Frame-assy (inc. 9-13)
8
8427-602
Гайка M6x1.0 (отпуск.по 5 шт)
8
0423-654
Screw, Shoulder-hfh M6-1.0 X 18 Cl8.8 Blk (4 Per Pack)
9
8050-222
Washer, Flat- 1/4 X .734 X .063 Z&y (20 Per Pack)
9
0423-101
Винт - 6mm (отпуск.по 5 шт)
9
0541-504
Pin, Mrp-assy (inc. 10-12)
10
0423-635
Pin, Roll-2.5mm (2 Per Pack)
10
2406-042
Footwell, Rear-rh
10
2406-043
Footwell, Rear-lh
10
8427-602
Гайка M6x1.0 (отпуск.по 5 шт)
11
0509-044
Headlight, Rh-assy (inc. 12)
11
0509-035
Headlight, Lh - Assy (inc. 12)
11
0423-419
Screw, Mach-tstrh-m6-1.0 X 16 Black (5 Per Pack)
11
0423-677
Collar, Seat Latch
12
0423-636
Spring, Mrp Latch (2 Per Pack)
12
0423-355
Винт m6-1.0 X 18-blk (отпускается по 4 шт )
12
0409-055
Bulb, Headlight-881
13
0423-514
Stud, Double End-m5x.8 (2 Per Pack)
13
5506-497
Footpeg, Black
13
0441-592
Bushing, Rack Frame (10 Per Pack)
14
8410-835
Screw, Cap-hfh M8x1.25x35 Cl8.8 Rie Blk (4 Per Pack)
14
4506-156
Footwell, Rtd-rh
14
4506-157
Footwell, Rtd-lh
14
0423-522
Spring, Adjustment-headlight (2 Per Pack)
15
0423-513
Knob, Adjustment-m5
15
8477-620
Screw, Mach-tstrh M6x1.0x20 Z&blk (4 Per Pack)
15
0423-669
Spacer, Steel (4 Per Pack)
16
0423-465
Grommet, Rubber-12.7x23.8125 (8 Per Pack)
16
0623-785
Винт 10-16 X 1
17
8050-217
Шайба 1/4 X .625 X .065 (отпускается по 10 шт)
17
8432-802
Nut, Hex-thk Nyl M8x1.25 Cl10 Z&y (8 Per Pack)
18
0423-087
Washer, 5/16 X 1 1/8-1/16 -z&y (5 Per Pack)
18
0423-447
Grommet, Gauge Mount (3 Per Pack)
19
2416-624
Panel, Side-rh
19
2416-625
Panel, Side-lh
19
0423-654
Screw, Shoulder-hfh M6-1.0 X 18 Cl8.8 Blk (4 Per Pack)
20
2506-092
Bracket, Rear Fender Support-rh-painted
20
2506-093
Bracket, Rear Fender Support-lh-painted
20
0423-678
Grommet, Panel-side (5 Per Pack)
21
1406-358
Radiator-access
21
8050-222
Washer, Flat- 1/4 X .734 X .063 Z&y (20 Per Pack)
22
8427-602
Гайка M6x1.0 (отпуск.по 5 шт)
22
0423-535
Клепка пластик (5 шт в упаковке)
23
0623-362
Клепка пластик (5 шт в упаковке)
24
1406-484
Cover, Steering Post
25
0470-513
Cover, Storage Box
26
1406-573
Box, Storage
27
2506-234
Lid, Storage Box-w/latch (inc. 28-29)
28
1406-599
Latch, Swell (southco )
29
0470-514
Lid, Storage Box
30
0423-101
Винт - 6mm (отпуск.по 5 шт)
31
4506-244
Fender, Front Red-assy (inc. 32-36) (4cusr/4cosr)
31
4506-246
Fender, Front Marsh-assy (inc. 32-36) (4cusg/4cosg)
32
0411-818
Reflector, Front-rh
32
0411-819
Reflector, Front-lh
33
1411-574
Decal, Warning-off Road Only
34
2411-259
Decal, Warning-trv General 16
35
0411-894
Decal, Warning Hill (trv)
36
1411-250
Decal, Warning-pre Ride(ae)
37
1411-725
Decal, Graphic-rear(front)(black Outline)
38
3411-490
Decal, Efi-500-red (4cusr/4cosr)
38
3411-491
Decal, Efi-500-marsh Green (4cusg/4cosg)
39
3411-574
Decal, Side-rh-red (a-body) (4cusr/4cosr)
39
3411-575
Decal, Side-lh-red (a-body) (4cusr/4cosr)
39
3411-576
Decal, Side-rh-marsh (a-body) (4cusg/4cosg)
39
3411-577
Decal, Side-lh-marsh (a-body) (4cusg/4cosg)
