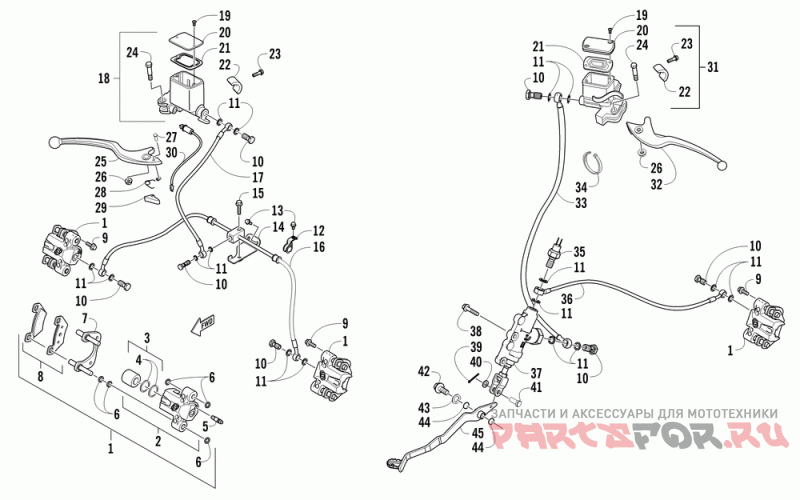

Гидравлический тормозной механизм

Arctic Cat XC 450

Arctic Cat
#oem кодцена
1
3323-230
Caliper, Brake 1.25"-rh (inc. 2-8)
1
3323-231
Caliper, Brake 1.25"-lh (inc. 2-8)
2
1436-160
Kit-housing, Pistons, Seals, Bleader-rh (inc. 3-5)
2
1436-161
Kit-housing, Pistons, Seals, Bleader-lh (inc. 3-5)
3
0502-606
Set, Pistons/seals (inc. 4)
4
0502-607
Set, Seals-caliper (fc)
5
0502-609
Bleeder, Caliper (fc)
6
0502-608
Guide, O-rings-caliper (fc)
7
0502-605
Bracket, Assembly
8
1436-420
Kit-pad, Brake-set
9
3305-785
Bolt Flange 8*20 (3 Per Pack)
10
3303-257
Oil Bolt 10*22 **6110-m1 C.97.07.26. (5 Per Pack)
11
3303-284
Washer Oil Bolt **(1) C.98.06.01. (5 Per Pack)
12
3303-919
Clamp Fr Brk Hose (2 Per Pack)
13
3304-553
Bolt Flange 6*12 (5 Per Pack)
14
3313-523
Bracket, Brake Hose Junction
15
3305-789
Bolt Flange 6*30 (g) (5 Per Pack)
16
3313-750
Assembly, Brake Hose(junction)
17
3313-422
Hose, Brake(mc-junction)
18
3306-452
Cylinder Set Fr Master (inc. 19-22)
19
3303-318
Screw Flat 4*12 (5 Per Pack)
20
3305-381
Cap M/c
21
3305-407
Диафрагма
22
3305-983
Holder M/c
23
3304-746
Bolt Flange 6*22 (g)
24
3303-254
Bolt Handle Lever **(0) C.98.04.02
25
3306-540
Lever R Strg Handle
26
3304-654
Nut Flange 6mm (5 Per Pack)
27
3305-384
Pin Park
28
3305-383
Пружина
29
3305-382
Стопор
30
3306-449
Sw Assy Fr Stop
31
3306-450
Cylinder Set Master (inc. 19-22)
32
3305-389
Lever L Strg Hndl
33
3306-451
Hose, Brake Lhm/c-foot M/c
34
0123-788
Стяжка кабеля (отпуск.по 10 шт)
35
3313-820
Switch-brake Pressure-banjo
36
3313-681
Hose, Brake-secondary
37
3306-370
M/c Assy Foot (eft)
38
3303-383
Bolt Flange Sh 6*20 (5 Per Pack)
39
3304-141
Pin Split 2.0*12 (10 Per Pack)
40
3304-050
Washer 7*12 (5 Per Pack)
42
3304-543
Bolt Flange 8*16 (4 Per Pack)
43
3304-138
Washer Plain 8*16*1.2 (2 Per Pack)
44
1602-213
Кольцо (2 шт в упаковке)
45
3306-499
Lever Comp Brake
