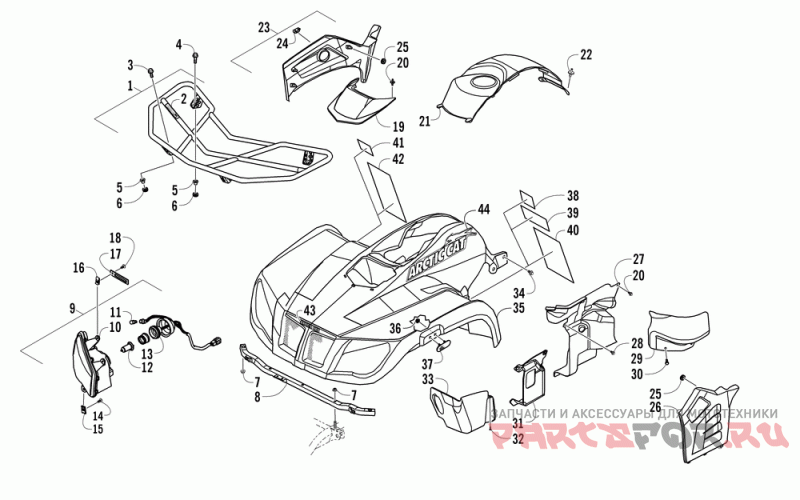

Передний багажник крыло и фара

Arctic Cat ATV 450 CR

Arctic Cat
#oem кодцена
1
3306-330
Rack, Front (inc. 2)
2
1411-681
Decal, Warning Rack (75lb)
3
3313-713
Bolt, Flange 8*50
4
3313-522
Bolt, M8*25
5
0423-669
Spacer, Steel (4 Per Pack)
6
0423-465
Grommet, Rubber-12.7x23.8125 (8 Per Pack)
7
3304-668
Nut, Hex-thk Nyl M8x1.25 Cl10 Z&y (4 Per Pack)
8
3306-331
Tube, Rear Mount-front Rack
9
3306-268
Light Ass'y R Head (inc. 10-13)
9
3306-269
Light Ass'y L Head (inc. 10-13)
10
3306-270
Unit Head Light R
10
3306-271
Unit Head Light L
11
3303-847
Bulb Position Light 12v5w (2 Per Pack)
12
3303-846
Bulb Head Light
13
3306-272
Socket Comp
14
3304-586
Bolt Washer 6*20 (2 Per Pack)
15
3303-267
Nut Clip 6mm **0000 C.97.07.26. (5 Per Pack)
16
3304-061
Nut Clip 5mm (4 Per Pack)
17
3304-157
Clip 2*70 (10 Per Pack)
18
3304-029
Bolt Wash 5*16 (4 Per Pack)
19
3306-404
Access Panel, Electric (black)
20
3303-592
Clip Mudguard (5 Per Pack)
21
3306-280
Cover, Tank (red) (4cusr)
21
3306-397
Cover, Tank (marsh) (4cusg)
22
3304-057
Clip Fender (5 Per Pack)
23
3313-857
Panel, Side-rh-assy (inc. 24)
25
0423-678
Grommet, Panel-side (5 Per Pack)
26
3313-667
Panel, Side-lh
27
3306-284
Panel, Splash Right
27
3306-285
Panel Splash Left
28
3305-448
Clip, Mudguard (5 Per Pack)
29
3313-844
Protector Hose
30
3304-587
Bolt Washer 6*16 (5 Per Pack)
31
3306-286
Panel Front, Splash Right
31
3306-287
Panel Assy, Splash Left
32
3304-650
Screw Tapping 5*16 (circle Head) (2 Per Pack)
33
3313-754
Shield Linkage
34
3305-783
Bolt Washer 8*16 (4 Per Pack)
35
3306-282
Fender, Front (red) W/decals (inc. 36-42) (4cusr)
35
3306-399
Fender, Front-w/decals (marsh)
36
3304-774
Nut Flange 5mm(g)
37
3313-359
Reflector, Front (oval)
38
0411-835
Decal, Warning Hill
39
1411-804
Decal, Warning-age (16)
40
1411-932
Decal, Warning-general
41
1411-574
Decal, Warning-off Road Only
42
1411-250
Decal, Warning-pre Ride(ae)
43
2411-465
Decal, "arctic Cat" (kymco)
44
3411-034
Decal, Side-rh (a, B, Cr Body)
44
3411-035
Decal, Side-lh (a, B, Cr Body)
