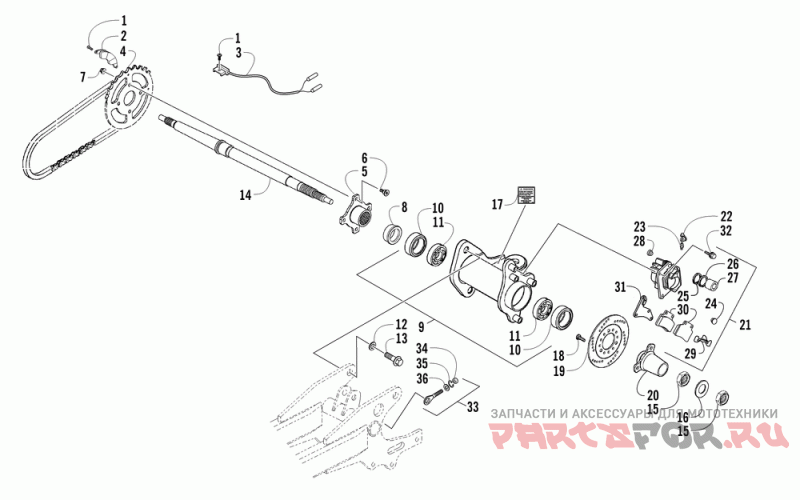

Rear axle and brake assembly

Arctic Cat ATV 150

Arctic Cat
#oem кодцена
1
3305-924
Screw Washer 5*12
2
3305-069
Sensor Magnet Wheel Rpm
3
3305-068
Sensor Wheel Rpm
4
3305-722
Sprkt Final Driven
5
3305-129
Holder Sprocket
6
3305-142
Bolt Stud 10*20
7
3304-031
Nut U 10mm (5 Per Pack)
8
3305-132
Collar Rr Side
9
3305-133
Hub Assy Rr (inc. 10-11)
10
3305-144
Seal Dust
11
3305-145
Bearing Ball Radial 6907
12
3303-281
Washer 12.2*28*4 (5 Per Pack)
13
3303-379
Bolt Flange 12*28mm (5 Per Pack)
14
3305-131
Shaft Rr Wheel
15
3305-141
Nut Rr Shaft
16
3305-127
Disk Spring
18
3303-253
Bolt Disk
19
3303-162
Disk Rr Brake
20
3305-138
Bracket Brake Disk
21
3303-568
Caliper Assy Rr (inc. 22-31)
22
3304-303
Cap Bleeder (2 Per Pack)
23
3304-302
Screw Bleeder
24
3304-333
Заглушка
25
3305-377
Dust Seal (foot Brake)
26
3305-380
Seal Piston (foot Brake)
27
3304-314
Piston (foot Brake)
28
3304-590
Пыльник
29
3304-591
Spring Pad
30
3304-567
Pad Comp
31
3303-469
Bracket Rr
32
3303-256
Bolt Flange 8*28
33
3305-194
Drive Chain Adjuster Assy (inc. 34-36)
34
3304-125
Nut Hex 8mm (2 Per Pack)
35
3303-607
Washer Spring 8mm (10 Per Pack)
36
3304-135
Washer Plain 8mm (4 Per Pack)
