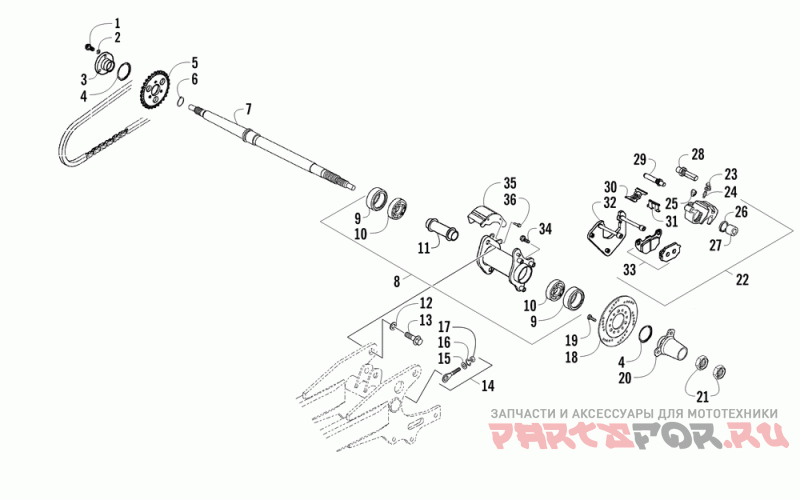

Rear axle and brake assembly

Arctic Cat 90 DVX

Arctic Cat
#oem кодцена
1
3304-565
Bolt Flange 8*20 (3 Per Pack)
2
3303-607
Washer Spring 8mm (10 Per Pack)
3
3305-835
Крепление
4
3305-298
O-ring 30mm
5
3303-148
Sprkt Final Driven **(0) C.2003.10.06
6
3305-840
Кольцо
7
3305-838
Shaft, Rr Wheel
8
3305-347
Hub Assy Rear (inc. 9-11)
9
3303-461
Seal Dust
10
3303-466
Bearing Ball Radial 6006/30*55*13
11
3303-427
Collar Rr Hub
12
3303-281
Washer 12.2*28*4 (5 Per Pack)
13
3303-379
Bolt Flange 12*28mm (5 Per Pack)
14
3303-147
Drive Chain Adjuster Assy (inc. 15-17)
15
3304-135
Washer Plain 8mm (4 Per Pack)
16
3303-607
Washer Spring 8mm (10 Per Pack)
17
3304-125
Nut Hex 8mm (2 Per Pack)
18
3303-162
Disk Rr Brake
19
3303-253
Bolt Disk
20
3305-249
Bracket, Brake Disk
21
3305-839
Nut, Axle Shaft Rr
22
3305-997
Caliper Assy Rr (inc. 23-33)
23
3304-303
Cap Bleeder (2 Per Pack)
24
3304-302
Screw Bleeder
25
3304-333
Заглушка
26
3305-380
Seal Piston (foot Brake)
27
3304-314
Piston (foot Brake)
28
3304-589
Bush Boot Pin
29
3304-590
Пыльник
30
3304-591
Spring Pad
31
3305-377
Dust Seal (foot Brake)
32
3303-469
Bracket Rr
33
3304-567
Pad Comp
34
3303-256
Bolt Flange 8*28
35
3303-144
Cover Comp Chain
36
3304-610
Bolt Flange 6*10 (2 Per Pack)
