Заднее крыло ,багажник и фонари для квадроциклов Arctic Cat 425 CR (2012)

Москва и регионы России

Уважаемые покупатели оригинальных запчастей для техники ARCTIC CAT!
Сроки поставки запчастей марки ARCTIC CAT сейчас нормализовались и сравнимы со сроками поставки запчастей других американских марок. Однако у дилеров этой марки возможны сообщения про отказы и бэк-ордеры с большой задержкой – до месяца. Мы предупреждаем вас об этой особенности работы дилеров, приносим вам извинения за это неудобство и уверяем вас, что никак не можем повлиять на этот момент. Учитывайте пожалуйста это при заказе деталей!

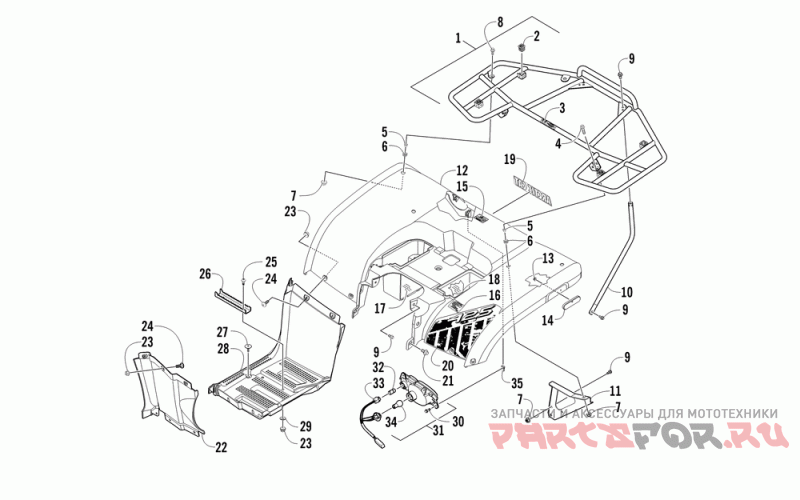

Заднее крыло ,багажник и фонари

Arctic Cat 425 CR

Заднее крыло ,багажник и фонари

#

oem код

название

цена

1

Rack, Rear-assembly (inc. 2-3)

Rack, Rear-assembly (inc. 2-3)

2

Bushing, Rack Frame

Bushing, Rack Frame

3

Decal, Warning Rack (150lb)

Decal, Warning Rack (150lb)

4

Screw, Cap-hfh M8x1.25x30 Cl8.8 Rie Blk

Screw, Cap-hfh M8x1.25x30 Cl8.8 Rie Blk

5

Spacer, Steel

Spacer, Steel

6

Grommet, Rubber-12.7x23.8125

Grommet, Rubber-12.7x23.8125

7

Гайка M8x1.25

Гайка M8x1.25

8

Bolt, M8*25

Bolt, M8*25

9

Bolt Flange 8*16

Bolt Flange 8*16

10

Tube, Mount-rack-rear-painted

Tube, Mount-rack-rear-painted

11

Bracket, Rack Mount-painted Black(rh)

Bracket, Rack Mount-painted Black(rh)

11

Bracket, Rack Mount-painted Black(lh)

Bracket, Rack Mount-painted Black(lh)

12

Fender, Rear (red) W/decals (inc. 13-18) (4cusr)

Fender, Rear (red) W/decals (inc. 13-18) (4cusr)

12

Fender, Rear (marsh) W/decals (inc. 13-18) (4cusg)

Fender, Rear (marsh) W/decals (inc. 13-18) (4cusg)

12

Fender, Rear-black Diamond-w/decals (inc. 13-18) (4cusq)

Fender, Rear-black Diamond-w/decals (inc. 13-18) (4cusq)

12

Fender Rear W/decals (silver Crystal) (inc. 13-18) (4cuss)

Fender Rear W/decals (silver Crystal) (inc. 13-18) (4cuss)

13

Nut Flange 5mm(g)

Nut Flange 5mm(g)

14

Reflector, Rear (oval)

Reflector, Rear (oval)

15

Decal, Warning-passenger

Decal, Warning-passenger

16

Decal, Tire Pressure

Decal, Tire Pressure

17

Shield, Rh

Shield, Rh

18

Shield, Lh

Shield, Lh

19

Decal, Front-"arctic Cat" (350/425)

Decal, Front-"arctic Cat" (350/425)

20

Decal, Fender-rear-red-rh (425 Cr) (4cusr)

Decal, Fender-rear-red-rh (425 Cr) (4cusr)

20

Decal, Fender-rear-red-lh (425 Cr) (4cusr)

Decal, Fender-rear-red-lh (425 Cr) (4cusr)

20

Decal, Fender-rear-marsh-rh (425 Cr) (4cusg)

Decal, Fender-rear-marsh-rh (425 Cr) (4cusg)

20

Decal, Fender-rear-marsh-lh (425 Cr) (4cusg)

Decal, Fender-rear-marsh-lh (425 Cr) (4cusg)

20

Decal, Fender-rear-black-rh (425 Cr) (4cusp)

Decal, Fender-rear-black-rh (425 Cr) (4cusp)

20

Decal, Fender-rear-black-lh (425 Cr) (4cusp)

Decal, Fender-rear-black-lh (425 Cr) (4cusp)

20

Decal, Fender-rear-met Black-rh (425 Cr) (4cusq)

Decal, Fender-rear-met Black-rh (425 Cr) (4cusq)

20

Decal, Fender-rear-met Black-lh (425 Cr) (4cusq)

Decal, Fender-rear-met Black-lh (425 Cr) (4cusq)

20

Decal, Fender-rear-tm-rh (425 Cr) (4cuss)

Decal, Fender-rear-tm-rh (425 Cr) (4cuss)

20

Decal, Fender-rear-tm-lh (425 Cr) (4cuss)

Decal, Fender-rear-tm-lh (425 Cr) (4cuss)

21

Bolt Washer 8*16

Bolt Washer 8*16

22

Footwell Front-rh

Footwell Front-rh

22

Footwell, Front-lh

Footwell, Front-lh

23

Гайка

Гайка

24

Screw Special 6*20

Screw Special 6*20

25

Bolt Washer 6*20

Bolt Washer 6*20

26

Footpeg, Black

Footpeg, Black

27

Винт

Винт

28

Footwell Rear Rh

Footwell Rear Rh

28

Footwell Rear Lh

Footwell Rear Lh

29

Washer, Plain 6mm

Washer, Plain 6mm

30

Bolt Wash 5*16

Bolt Wash 5*16

31

Assy, Taillight - Rh (sae) (inc. 32-34)

Assy, Taillight - Rh (sae) (inc. 32-34)

31

Assy, Taillight - Lh (sae) (inc. 32-34)

Assy, Taillight - Lh (sae) (inc. 32-34)

32

Bulb, Backup(r5w -12v 5w) (clear)

Bulb, Backup(r5w -12v 5w) (clear)

33

Assy, Socket-taillight (sae)

Assy, Socket-taillight (sae)

34

Bulb Tail & Stop 12v21w/5w

Bulb Tail & Stop 12v21w/5w

35

Nut Clip 5mm

Nut Clip 5mm
