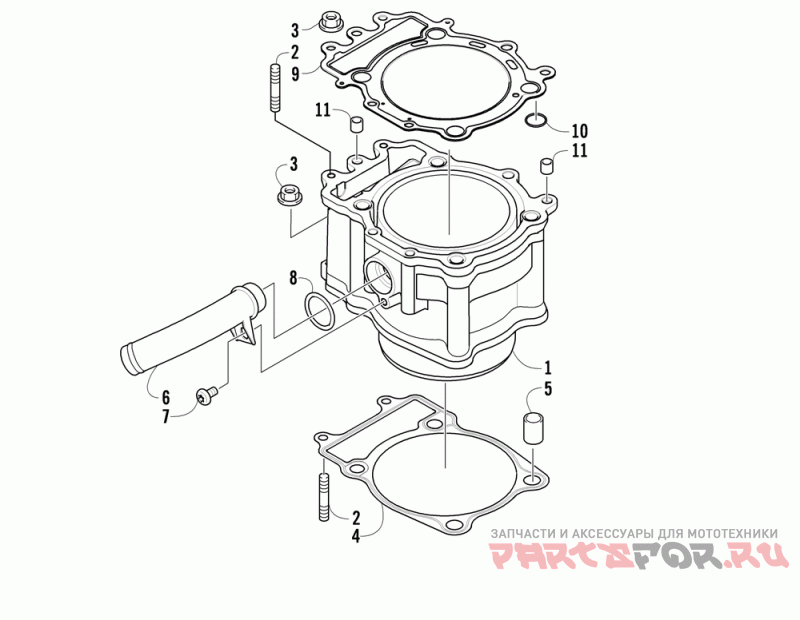

Блок цилиндров

Arctic Cat TRV 700 H1 EFI GT

Блок цилиндров

#

oem код

название

цена

1

Cylinder, A700, 09ma102

Cylinder, A700, 09ma102

2

Stud, M6 X 1 X 38

Stud, M6 X 1 X 38

3

Nut, Hex-flg M6x1.0 Cl8 Rie Sil

Nut, Hex-flg M6x1.0 Cl8 Rie Sil

4

Прокладка

Прокладка

5

Dowel, Split, 13 X 18

Dowel, Split, 13 X 18

6

Fitting, Coolant

Fitting, Coolant

7

Screw, Mach-tspnh M6x1.0x12 Cl8.8 Blk

Screw, Mach-tspnh M6x1.0x12 Cl8.8 Blk

8

O-ring, 21.9 Id X 2.7 W

O-ring, 21.9 Id X 2.7 W

9

Gasket, Cylinder Head A700

Gasket, Cylinder Head A700

10

O-ring, Cyl.head-10.8x1.78

O-ring, Cyl.head-10.8x1.78

19

Screw, Cap Hfh M6 X 1 X 30

Screw, Cap Hfh M6 X 1 X 30

20

Screw, Cap Hfh M6 X 1 X 35

Screw, Cap Hfh M6 X 1 X 35

21

Screw, Cap Hfh M6 X 1 X 25

Screw, Cap Hfh M6 X 1 X 25

22

Bolt, Hfh M10 X 1.25 - 195 (head Bolt)

Bolt, Hfh M10 X 1.25 - 195 (head Bolt)

23

Washer, Steel, 10x22x2.3

Washer, Steel, 10x22x2.3

24

Plug, Cylinder Head

Plug, Cylinder Head

25

Screw, Cap Hfh M6 X 1 X 20

Screw, Cap Hfh M6 X 1 X 20

26

Cap, Valve Inspection

Cap, Valve Inspection

27

O-ring, Inspection Cap(-137)

O-ring, Inspection Cap(-137)

28

Screw, Cap Hh-m6-1x10.5 W/thd Lock

Screw, Cap Hh-m6-1x10.5 W/thd Lock

29

Washer, Lock Camshaft

Washer, Lock Camshaft

30

Звезда ,распред. вала

Звезда ,распред. вала

31

Pin, Solid Dowel-m5x8

Pin, Solid Dowel-m5x8

32

Camshaft - Assy

Camshaft - Assy

33

Plate, Cam Retainer

Plate, Cam Retainer

34

Spark Plug, Cpr8e

Spark Plug, Cpr8e

35

Flange, Intake Manifold-cast

Flange, Intake Manifold-cast

36

Screw, Mach-tsph M6 X 1 X 20w/threadloc

Screw, Mach-tsph M6 X 1 X 20w/threadloc

37

O-ring, Intake Manifold

O-ring, Intake Manifold

40

Хамут,50mmx9mm, (40-60 норма)

Хамут,50mmx9mm, (40-60 норма)

41

Oring, 7.6454 Id X 1.778 Cs

Oring, 7.6454 Id X 1.778 Cs

42

Plug, Cv, Dia 4mm

Plug, Cv, Dia 4mm

43

Cover, Thermostat-w/bypass

Cover, Thermostat-w/bypass

43

Screw, Cap-hfh M5x0.8x12 Cl8.8 Z&y

Screw, Cap-hfh M5x0.8x12 Cl8.8 Z&y

44

Thermostat (65 Deg)

Thermostat (65 Deg)

44

O-ring, -008 (3/16x5/16x1/16)

O-ring, -008 (3/16x5/16x1/16)

45

Sensor, Water Temp.-assy

Sensor, Water Temp.-assy

46

Stud, M8 X 1.25 X 80

Stud, M8 X 1.25 X 80

47

Nut, Hex-flg M8x1.25 Cl8 Rie Sil

Nut, Hex-flg M8x1.25 Cl8 Rie Sil

48

Stud, M6 X 1.0 X 76

Stud, M6 X 1.0 X 76

1

Cylinder, 700h1, 11ma102

Cylinder, 700h1, 11ma102

1

Head, Cylinder-(700)final Assembly (inc. 2-17)

Head, Cylinder-(700)final Assembly (inc. 2-17)

2

Dowel, Sleeve-od8 X L7

Dowel, Sleeve-od8 X L7

3

Plug, M14x1.5x14

Plug, M14x1.5x14

4

Arm, Valve Rocker Assy-exhaust (inc. Two No. 5-6)

Arm, Valve Rocker Assy-exhaust (inc. Two No. 5-6)

5

Screw, Lash Adjustment

Screw, Lash Adjustment

6

Nut, Hex M5x0.5

Nut, Hex M5x0.5

7

Arm, Valve Rocker Assy-intake (inc. Two No. 5-6)

Arm, Valve Rocker Assy-intake (inc. Two No. 5-6)

8

Shaft, Rocker Arm-intake

Shaft, Rocker Arm-intake

9

Shaft, Rocker Arm-exhaust

Shaft, Rocker Arm-exhaust

10

Keeper, Valve

Keeper, Valve

11

Dowel, Sleeve-od8 X L7

Dowel, Sleeve-od8 X L7

11

Retainer, Upper, Spring

Retainer, Upper, Spring

12

Пружина клапана

Пружина клапана

13

УПЛОТНЕНИЕ, ШТОК КЛАПАНА

УПЛОТНЕНИЕ, ШТОК КЛАПАНА

14

Seat, Lower, Valve-spring

Seat, Lower, Valve-spring

15

Valve, Intake-31.6mm

Valve, Intake-31.6mm

16

Valve, Exhaust-27.9mm

Valve, Exhaust-27.9mm

17

Screw, Cap Hfh M6x1x55

Screw, Cap Hfh M6x1x55

18

Seal, Fastener

Seal, Fastener

30

Cam Sprocket

Cam Sprocket

38

Kit, Service- Intake Boot W/ Clamp (inc. 39)

Kit, Service- Intake Boot W/ Clamp (inc. 39)

39

Clamp, Manifold-t-bolt

Clamp, Manifold-t-bolt

40

Oring, 7.6454 Id X 1.778 Cs

Oring, 7.6454 Id X 1.778 Cs

41

Plug, Cv, Dia 4mm

Plug, Cv, Dia 4mm

41

Cover, Thermostat W/bypass-assy (inc. 42-43)

Cover, Thermostat W/bypass-assy (inc. 42-43)

42

Cover, Thermostat-w/bypass

Cover, Thermostat-w/bypass

42

Screw, Cap-hfh M5x0.8x12 Cl8.8 Z&y

Screw, Cap-hfh M5x0.8x12 Cl8.8 Z&y

43

Thermostat (65 Deg)

Thermostat (65 Deg)

43

O-ring, -008 (3/16x5/16x1/16)

O-ring, -008 (3/16x5/16x1/16)

44

Sensor, Water Temp.-assy

Sensor, Water Temp.-assy

45

Stud, M8 X 1.25 X 80

Stud, M8 X 1.25 X 80

46

Nut, Hex-flg M8x1.25 Cl8 Rie Sil

Nut, Hex-flg M8x1.25 Cl8 Rie Sil

47

Stud, M6 X 1.0 X 76

Stud, M6 X 1.0 X 76

48

Nut, Hex-flg M6x1.0 Cl8 Rie Sil

Nut, Hex-flg M6x1.0 Cl8 Rie Sil

49

Nut, Hex-flg M6x1.0 Cl8 Rie Sil

Nut, Hex-flg M6x1.0 Cl8 Rie Sil
