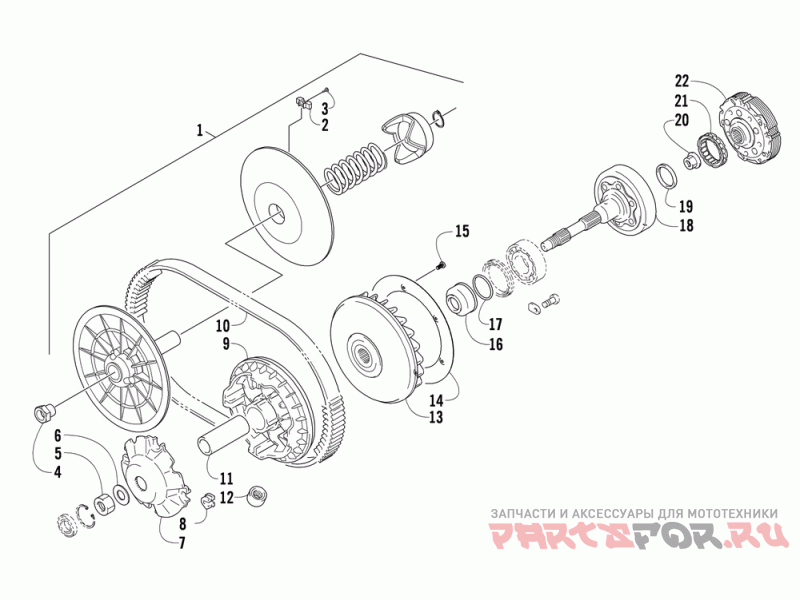

Трансмиссия

Arctic Cat TBX 700LTD

Arctic Cat
#oem кодцена
1
0823-157
Pulley, Driven - Assembly (inc. 2-4)
1
0822-091
Countershaft Assy (nfg) (inc. 2-15)
2
0823-176
Shoe, Cam-driven Pulley
2
0822-014
Собачка
3
0823-177
Screw, Cam Shoe
3
0831-011
Кольцо
4
0823-178
Nut, Driven Pulley
4
0822-045
Insert, Gear
5
0827-010
Гайка m20x1.5
5
0828-008
Шайба
6
0828-106
Washer, Clutch Plate
6
0822-013
Шестерня
7
0823-008
Plate, Movable Drive
7
0832-011
Подшипник
8
0823-010
Damper, Movable Drive
8
0822-005
Втулка
9
0823-159
Sheave, Movable Drive-assembly
9
0828-014
Шайба
10
0823-013
Ремень
10
0828-015
Шайба
11
0823-149
Spacer, Movable Drive Face
11
0822-004
Шестерня пониженая 40зуб
12
0823-167
Roller, Movable Drive(blue)(pm 21g)
12
0822-046
Shim, Drive Gear Spacer
12
0828-019
Washer,thrust, Secondary Transmission
13
0823-156
Sheave, Stationary-drive-mach
13
0822-003
Промежуточный вал
13
0828-011
Washer, Steel 20 X 40 X 1
14
0823-131
Shroud, Stat Sheave-drive
14
0822-007
Шестерня
14
0831-040
Ring, External Retaining - Dsh-17
15
0623-914
Screw, Self Tap Thd Lk-tspnh 10-24x.375
15
0822-006
Gear, Driven-high (30t)
15
0822-050
Trigger, Speedo Sensor
16
0823-015
Spacer, Fixed Drive
16
0822-089
Gear, Spur-drive-no.2 (13t Cut)
16
0828-069
Шайба
17
0470-531
O-ring, Intake Manifold
17
0831-039
Ring, External Retaining - Dsh-13
18
0823-261
Housing, Clutch Asm-6 Plate
18
0830-129
Gasket, Odometer Drive
19
0830-189
Seal, Drum Shaft
19
0829-023
Pin, Solid Dowel (6 X12)
20
0827-011
Nut, Hf-ccw M18x1.5
20
0822-049
Housing, Speedo Sensor
21
0823-018
Clutch, One Way Asm
21
0824-042
Sensor, Speedo-hall Effect
22
0823-310
Clutch Centrifical-6 Plate-z 2
22
8468-620
Винт
23
8468-645
Винт M6x1.0x45
24
0830-107
Seal, Fastener
25
0822-001
Driveshaft
26
0828-016
Washer,thrust, Secondary Transmission
27
0822-011
Gear, Reverse Idle
28
0822-012
Bushing, Reverse Idle Gear
29
0822-015
Shaft, Reverse Idle
1
0823-353
Pulley, Driven Assy-lp3 (inc. 2-4)
1
0822-124
Countershaft Assy-sd (no Drive Gear) (inc. 2-10)
2
0831-085
Cirlclip, Ce-shaft-external
3
0822-120
Dog, Sliding-reverse Sd
4
0822-121
Shim, Drive Gear Spacer
5
0822-119
Шестерня реверса - 32 зуба
6
0832-082
Bearing, Roller Needle-25x30x13
7
0822-114
Шестерня 40 зуб.
8
0822-113
Countershaft-sd
9
0822-116
Dog, Sliding-forward Sd
10
0822-115
Шестерня - 30зуб.
11
0822-125
Gear, Spur - 13t-13t 20 Pa
17
0828-011
Washer, Steel 20 X 40 X 1
18
0821-002
Clutch Drum Assembly 6-plate -z-
18
0828-019
Washer,thrust, Secondary Transmission
19
0831-040
Ring, External Retaining - Dsh-17
20
0828-069
Шайба
21
0822-050
Trigger, Speedo Sensor
22
0831-039
Ring, External Retaining - Dsh-13
23
0830-129
Gasket, Odometer Drive
24
0829-023
Pin, Solid Dowel (6 X12)
25
0822-049
Housing, Speedo Sensor
26
0824-042
Sensor, Speedo-hall Effect
27
8468-620
Винт
28
8468-645
Винт M6x1.0x45
29
0830-107
Seal, Fastener
30
0822-001
Driveshaft
31
0828-016
Washer,thrust, Secondary Transmission
32
0822-011
Gear, Reverse Idle
33
0822-012
Bushing, Reverse Idle Gear
34
0822-015
Shaft, Reverse Idle
