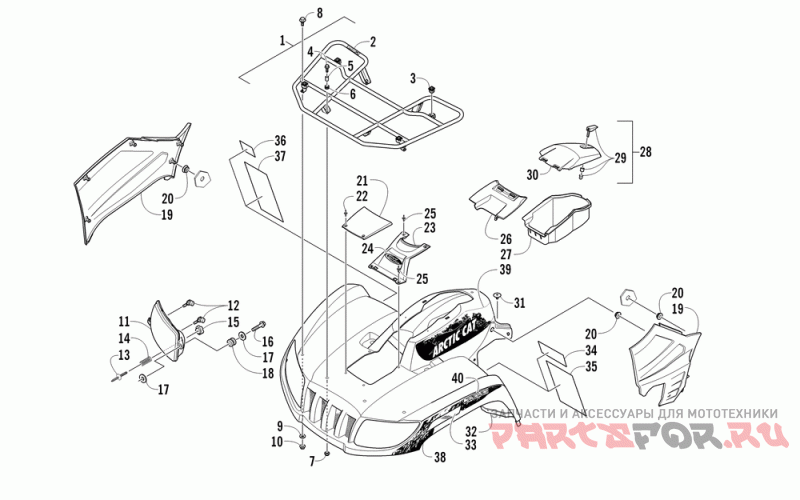

Передний багажник крыло и фара

Arctic Cat TBX 700LTD

Arctic Cat
#oem кодцена
1
2506-643
Rack, Front-assembly (w/o Fence) (inc. 2-3)
2
0411-576
Decal, Warning-trv Rack (100 Lb.)
3
0441-592
Bushing, Rack Frame
4
8410-830
Screw, Cap-hfh M8x1.25x30 Cl8.8 Rie Blk
5
0423-669
Spacer, Steel
6
0423-465
Grommet, Rubber-12.7x23.8125
7
8432-802
Гайка M8x1.25
8
0423-654
Screw, Shoulder-hfh M6-1.0 X 18 Cl8.8 Blk
9
8050-222
Шайба 1/4 X .734 X .063
10
0423-540
Гайка м6
11
0509-044
Headlight, Rh-assy (inc. 12)
11
0509-035
Headlight, Lh - Assy (inc. 12)
12
0409-055
Bulb, Headlight-881
13
0423-514
Stud, Double End-m5x.8
14
0423-522
Пружина
15
0423-513
Knob, Adjustment-m5
16
0623-785
Винт
17
8050-217
Шайба
18
0423-447
Grommet, Gauge Mount
19
2406-300
Panel, Side-rh (a-body)
19
2406-419
Panel, Side-lh (650h1)
20
0423-678
Grommet, Panel-side
21
1406-358
Radiator-access
22
0423-535
Клипса, Пластмасса
23
1406-484
Cover, Steering Post
25
0623-362
Клипса, Пластмасса
26
0470-513
Cover, Storage Box
27
1406-573
Box, Storage
28
2506-234
Lid, Storage Box-w/latch (inc. 29-30)
29
1406-599
Latch, Swell (southco )
30
0470-514
Lid, Storage Box
31
0423-101
Винт M6
32
2516-132
Fender, Assy-fr (apple Green Metallic) (inc. 33-37)
33
0411-818
Reflector, Front-rh
33
0411-819
Reflector, Front-lh
34
1411-574
Decal, Warning-off Road Only
35
2411-124
Decal, Warning-general 16
36
0411-835
Decal, Warning Hill
37
1411-250
Decal, Warning-pre Ride(ae)
24
2411-330
Decal, Power Steering
38
2411-332
Decal, Front Side-rh (a-body Utly)
38
2411-333
Decal, Front Side-lh (a-body Utly)
39
2411-398
Decal, Side-arctic Cat-rh-amgrn(abody Uty
39
2411-399
Decal, Side-arctic Cat-lh-amgrn(abody Uty
40
2411-338
Decal, Rear Side-700-rh (a-body Utly)
40
2411-339
Decal, Rear Side-700-lh (a-body Utly)
