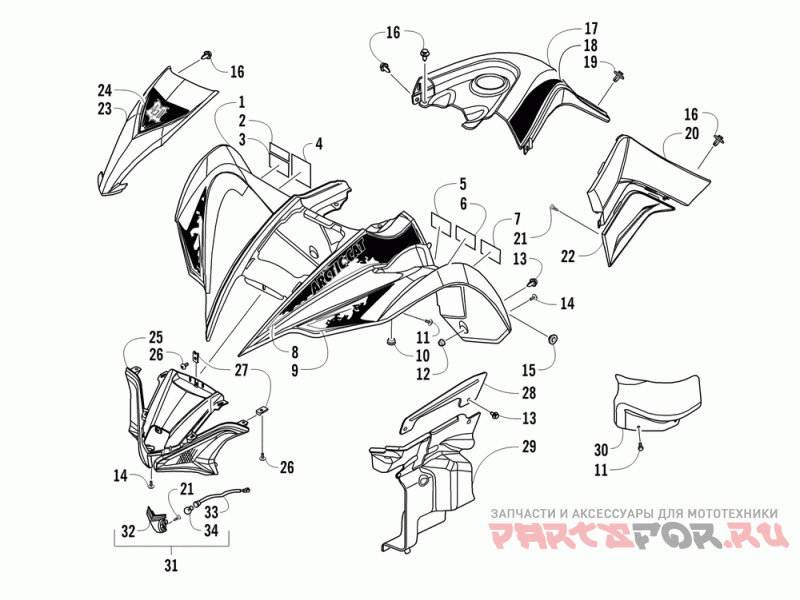

Front body assembly (4cusz)

Arctic Cat 450 XC

Arctic Cat
#oem кодцена
1
3306-558
Fender, Front-w/decals (lime) (inc. 2-7)
2
1411-577
Decal, Warning-off Road Only
3
1411-804
Decal, Warning-age (16)
4
1411-932
Decal, Warning-general
5
0411-835
Decal, Warning Hill
6
1411-109
Decal, Warning-reverse
7
0411-457
Decal, Warning-rvs/pre Ride
8
2411-584
Decal, Hood-lime Green-rh
8
2411-585
Decal, Hood-lime Green-lh
9
2411-572
Decal, Front Fender-rh-lime Green
9
2411-573
Decal, Front Fender-lh-lime Green
10
3306-458
Бампер
11
3304-587
Bolt Washer 6*16
12
3304-431
Гайка
13
3305-448
Clip, Mudguard
14
3304-404
Bolt Special 6*16
15
0423-678
Grommet, Panel-side
16
3303-592
Clip Mudguard
17
3306-555
Cover Tank (lime)
18
2411-578
Decal, Tank-rh
18
2411-579
Decal, Tank-lh
19
3304-652
Bolt Washer 6*12
20
3306-570
Cover A R Side
20
3306-571
Cover A L Side
21
3304-651
Screw Tapping 4*12
22
3306-548
Cover B.r Side
22
3306-549
Cover B.l Side
23
3306-561
Cover, Front (lime)
24
2411-569
Decal, Crest-lime Green
25
3306-539
Решетка передняя
26
3304-029
Bolt Wash 5*16
27
3304-061
Nut Clip 5mm
28
3306-542
Panel B, Splash Rh/lh
29
3306-284
Panel, Splash Right
29
3306-285
Panel Splash Left
30
3313-844
Protector Hose
31
3306-507
Light Assy Fr Position (inc. 32-34)
32
3306-508
Light Fr Position Comp
33
3306-509
Socket Comp Position Light
34
3303-847
Bulb Position Light 12v5w
