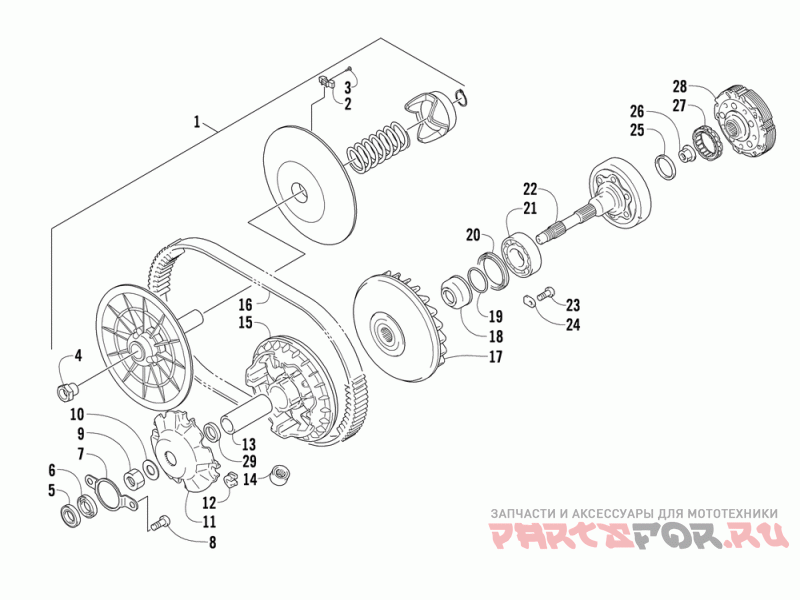

Трансмиссия

Arctic Cat 1000 Cruiser PS

Arctic Cat
#oem кодцена
1
0823-353
Pulley, Driven Assy-lp3 (inc. 2-4)
1
0822-091
Countershaft Assy (nfg) (inc. 2-15)
1
0822-124
Countershaft Assy-sd (no Drive Gear) (inc. 2-10)
2
0823-176
Shoe, Cam-driven Pulley
2
0822-014
Собачка
2
0831-085
Cirlclip, Ce-shaft-external
3
0823-177
Screw, Cam Shoe
3
0831-011
Кольцо
3
0822-120
Dog, Sliding-reverse Sd
4
0823-178
Nut, Driven Pulley
4
0822-045
Insert, Gear
4
0822-121
Shim, Drive Gear Spacer
5
0832-010
Подшипник-sc03a78c3
5
0828-008
Шайба
5
0822-119
Шестерня реверса - 32 зуба
6
0830-176
Сальник 47x16x5.5
6
0822-013
Шестерня
6
0832-082
Bearing, Roller Needle-25x30x13
7
0823-020
Обойма подшипника
7
0832-011
Подшипник
7
0822-114
Шестерня 40 зуб.
8
0826-031
Screw, Mach-tsfh M6 X1x12 W/ Thd Lock
8
0822-005
Втулка
8
0822-113
Countershaft-sd
9
0827-010
Гайка m20x1.5
9
0828-014
Шайба
9
0822-116
Dog, Sliding-forward Sd
10
0828-106
Washer, Clutch Plate
10
0828-015
Шайба
10
0822-115
Шестерня - 30зуб.
11
0823-008
Plate, Movable Drive
11
0822-004
Шестерня пониженая 40зуб
11
0822-125
Gear, Spur - 13t-13t 20 Pa
12
0823-010
Damper, Movable Drive
12
0822-046
Shim, Drive Gear Spacer
12
0828-019
Washer,thrust, Secondary Transmission
13
0823-265
Spacer, Movable Drive Sheave
13
0822-003
Промежуточный вал
13
0828-011
Washer, Steel 20 X 40 X 1
14
0823-170
Roller, Movable Drive(green) (pm 23.5g)
14
0822-007
Шестерня
14
0831-040
Ring, External Retaining - Dsh-17
15
0823-159
Sheave, Movable Drive-assembly
15
0822-006
Gear, Driven-high (30t)
15
0822-050
Trigger, Speedo Sensor
16
0823-231
Belt, Drive
16
0822-089
Gear, Spur-drive-no.2 (13t Cut)
16
0828-069
Шайба
17
0823-156
Sheave, Stationary-drive-mach
17
0828-019
Washer,thrust, Secondary Transmission
17
0831-039
Ring, External Retaining - Dsh-13
18
0823-015
Spacer, Fixed Drive
18
0828-011
Washer, Steel 20 X 40 X 1
18
0830-194
Gasket, Shift-speedo
19
0470-531
O-ring, Intake Manifold
19
0831-040
Ring, External Retaining - Dsh-17
19
0829-062
Dowel, Sleeve-od8 X L7
20
0822-050
Trigger, Speedo Sensor
20
0806-105
Cover, Shift-speedo
21
0832-009
Bearing, Conrad-6208ruef- 1
21
0828-069
Шайба
21
0830-044
Seal, Sub-gear Shift
22
0821-002
Clutch Drum Assembly 6-plate -z-
22
0831-039
Ring, External Retaining - Dsh-13
22
8468-630
Screw, Mach-tspnh M6x1.0x30 Cl8.8 Blk
23
0826-029
Screw, Mach-tsph M6 X1x12 W/ Thd Lock
23
0829-062
Dowel, Sleeve-od8 X L7
23
0430-091
Датчик спидометра
24
0822-010
Обойма подшипника
24
0830-194
Gasket, Shift-speedo
24
8468-620
Винт
25
0830-189
Seal, Drum Shaft
25
0806-105
Cover, Shift-speedo
25
0822-001
Driveshaft
26
0827-011
Nut, Hf-ccw M18x1.5
26
0830-044
Seal, Sub-gear Shift
26
0828-016
Washer,thrust, Secondary Transmission
27
0823-018
Clutch, One Way Asm
27
8468-630
Screw, Mach-tspnh M6x1.0x30 Cl8.8 Blk
27
0822-011
Gear, Reverse Idle
28
0823-310
Clutch Centrifical-6 Plate-z 2
28
0430-091
Датчик спидометра
28
0822-012
Bushing, Reverse Idle Gear
29
0823-292
Spacer, Moveable Drivesheave-35x50x6.85
29
8468-620
Винт
29
0822-015
Shaft, Reverse Idle
30
0822-001
Driveshaft
31
0828-016
Washer,thrust, Secondary Transmission
32
0822-011
Gear, Reverse Idle
33
0822-012
Bushing, Reverse Idle Gear
34
0822-015
Shaft, Reverse Idle
