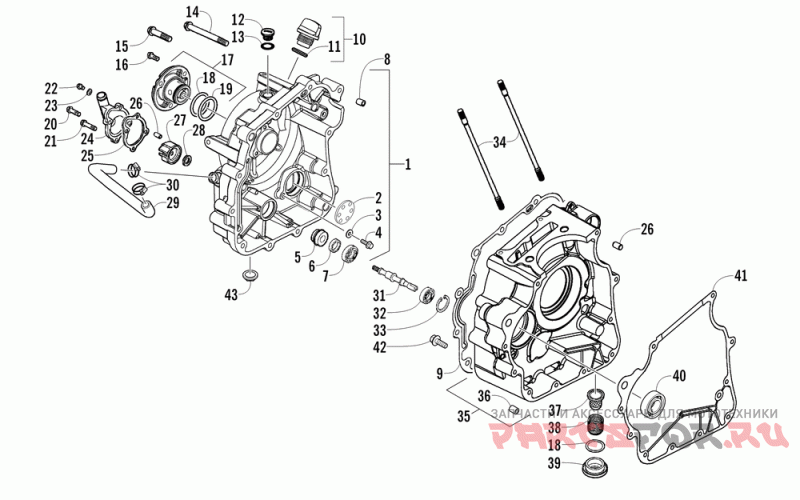

Right crankcase and cover assembly

Arctic Cat 300 Utility

Arctic Cat
#oem кодцена
1
3305-626
Cover Comp R Crank Case (inc. 2-7)
2
3303-696
Finder Oil Level
4
3304-005
Bolt Special 6*10 96600-08010 N.c.
5
3303-751
Seal Mechanical
6
3304-078
Oil Seal 12*20*4
7
3304-068
Bearing Ball Ridial 6901 12*24*6
8
3303-342
Pin Dowel 10*16
9
3303-641
Gasket R Cover
10
3303-695
Gauge Oil Level Assy (inc. 11)
11
3304-102
O-ring 18*3
12
3304-012
Cap A C Gerator
13
3304-099
O-ring 13.8*2.5
14
3304-192
Bolt Flange 6*125
15
3303-387
Bolt Flange Sh 6*45
16
3303-382
Bolt Flange 6*16mm
17
3304-013
Cap Assy R Cover (inc. 18-19)
18
3304-096
O-ring 30.8mm
19
3304-098
O Ring 27.4*2.1
20
3303-619
Bolt Flange Sh 6*22
21
3303-385
Bolt Flange Sh 6*28
22
3304-186
Bolt Flange Sh 6*10
23
3304-049
Washer A 6mm
24
3303-752
Cover Water Pump
25
3303-753
Gasket Water Pump
26
3303-341
Pin Dowel 8*14
27
3303-750
Impeller Water Pump
28
3304-038
Washer 7.2*13*1.2
29
3303-758
Hose B Water
30
3304-165
Clip Water Hose
31
3303-754
Shaft Water Pump
32
3304-193
Bearing Ball Radial 6000/10*26*8
33
3304-148
Cir Clip Interal 26mm
34
3304-008
Bolt Stud 8mm
35
3305-605
Crank Case Comp R (inc. 36)
36
3304-065
Cone Type Plug 6*7
37
3303-691
Screen Oil Filter
38
3303-692
Spg Oil Filter Screen
39
3303-021
Hole Cap Tappet Adjusting **9000 C.97.09
40
3304-198
Brg Ball Radial 6304/20*52*15
41
3303-628
Gasket Crank Case A
42
3304-191
Bolt Flange Sh 6*50
43
3304-052
Bolt Drain Plug Special
