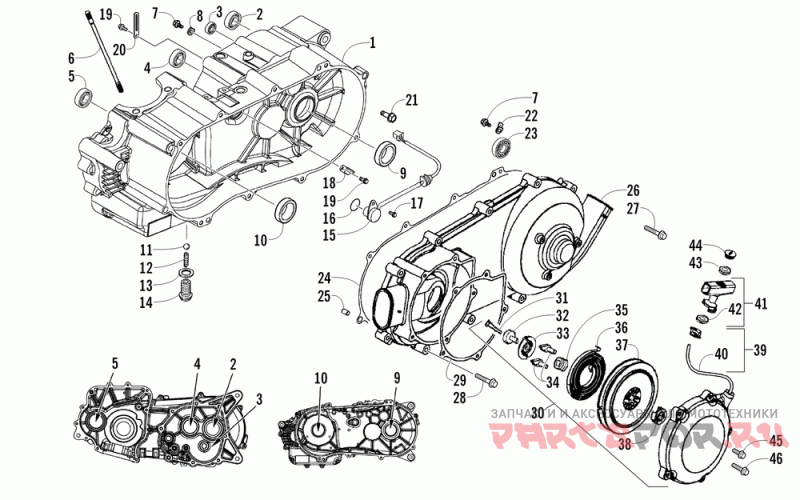

Left crankcase, cover, and recoil assembly

Arctic Cat 300 Utility

Arctic Cat
#oem кодцена
1
3303-629
Crank Case Comp L
2
3304-067
Brg Ball 6305
3
3304-074
Brg Needle 20*26*16
4
3304-195
Brg Radial Ball 6205
5
3304-198
Brg Ball Radial 6304/20*52*15
6
3305-606
Bolt A Stud 8mm
7
3304-005
Bolt Special 6*10 96600-08010 N.c.
8
3304-039
Plate Brg Holder
9
3304-091
Oil Seal 25*40*8
10
3304-079
Oil Seal 27*42*7
11
3304-205
Ball Steel 12
12
3304-063
Spg Bolt Seat Inner
13
3304-021
Washer Bolt Seat
14
3304-109
Bolt Seat Ball Stopper
15
3303-856
Sw Assy Gear Change (inc. 16)
16
3305-776
O Ring 15.5x2.5
17
3304-187
Bolt Flange 6*10
18
3303-843
Clamper Wire Harness
19
3303-381
Bolt Flange Sh 6*12
20
3304-158
Clip 2*100
21
3303-365
Bolt Flange 8*12
22
3304-040
Plate Brg Holder
23
3304-073
Bearing Ball Radial
24
3303-642
Gasket L Cover
25
3303-342
Pin Dowel 10*16
26
3303-632
Cover Left
27
3304-003
Bolt Flange Shf 6*28
28
3304-004
Bolt Flange Shf 6*40
29
3304-101
Gasket Starting Cover
30
3305-459
Recoil Starting (inc. 31-44)
31
3304-113
Bolt Hex 5*25
32
3303-651
Манжета
33
3303-649
Rachet Guide Staring
34
3303-646
Rachet Starting
35
3303-647
Spring Rachet Guide
36
3303-645
Spiral Spg Starting
37
3305-346
Reel Starting
38
3303-648
Spacer Starting
39
3303-639
Cover Starting (inc. 40)
40
3303-650
Rope, Starting
41
3303-652
Holder Assy Starting (inc. 42)
42
3304-103
O-ring 18.1*3
43
3304-137
Washer Plain 6mm
44
3305-269
Cover Assy Holder
45
3303-384
Bolt Flange Sh 6*25
46
3304-190
Bolt Flange Sh 6*32
