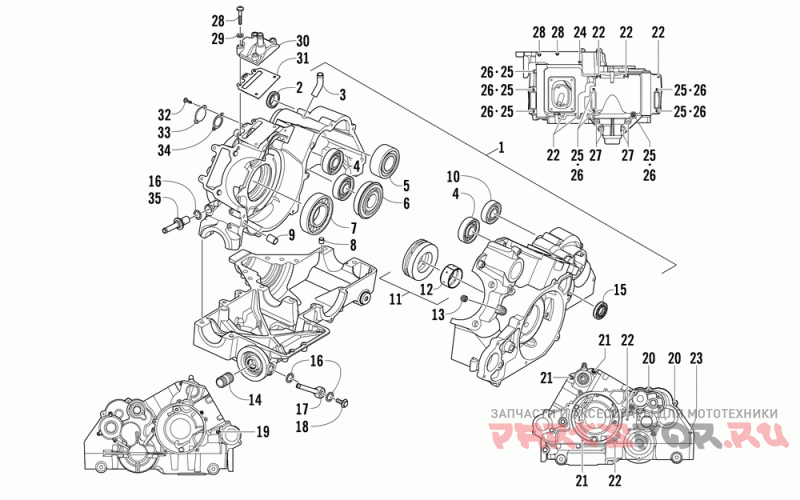

Блок цилиндров

Arctic Cat 1000 Mud Pro

Arctic Cat
#oem кодцена
1
0801-074
Crankcase Assembly W/bearings (inc. 2-15)
2
0830-035
Seal, Driveshaft
3
0801-118
Трубка
4
0832-050
Bearing, Conrad-6304
5
0832-048
Bearing, Driveshaft
6
0832-058
Bearing, Ball-30x72x19
7
0832-042
Bearing, Ball-s/r 40x80x18
8
0829-001
Dowel, Sleeve 8x8
9
0829-002
Dowel, Split, 13 X 18
10
0832-049
Bearing, Conrad-6204
11
0832-055
Bearing, Crank-shell Assy (inc. 12)
12
0832-057
Bearing, Crank-plain
13
0801-002
Plug, Engine Case
14
0812-008
Штуцер
15
0822-052
Seal, Counter Shaft Rh
16
0812-026
Gasket, Washer
17
0812-028
Fitting, Oil Cooler-40 Deg.
18
0812-025
Болт
19
8468-685
Screw, Mach-tspnh M6x1.0x85 Cl8.8 Blk
20
8468-650
Screw, Mach-tspnh M6x1.0x50 Cl8.8 Blk
21
8468-625
Винт M6x1.0x25
22
8468-665
Screw, Mach-tspnh M6x1.0x65 Cl8.8 Blk
23
8468-670
Screw, Mach-tspnh M6x1.0x70 Cl8.8 Blk
24
8468-640
Screw, Mach-tspnh M6x1.0x40 Cl8.8 Blk
25
8412-870
Screw, Cap-hfh M8x1.25x70 Cl8.8 Rie Sil
26
0830-008
Gasket, Copper 8x14x1
27
8412-830
Screw, Cap-hfh M8x1.25x30 Cl8.8 Rie Sil
28
8468-630
Screw, Mach-tspnh M6x1.0x30 Cl8.8 Blk
29
0830-107
Seal, Fastener
30
0801-088
Крышка
31
0830-160
Gasket, Breather
32
8470-520
Screw, Mach-tspnh M5x0.8x20 Cl8.8 Z&y
34
0830-134
Gasket,chain Tensioner & Shift, Vtwin
35
0812-051
Fitting, Oil-threaded (vtwin)
6
0832-083
Bearing, 6306nr-w/snap Ring
8
0829-062
Dowel, Sleeve-od8 X L7
33
0818-107
Cap, Engine Case Shift Shaft
