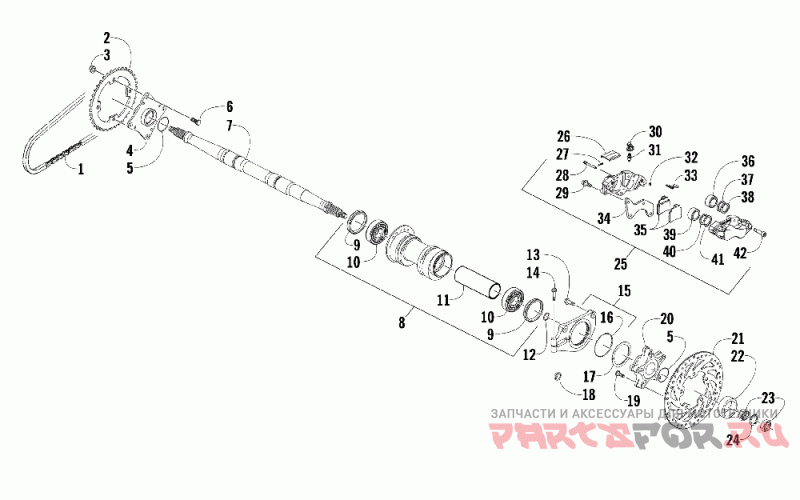

Rear axle and brake assembly

Arctic Cat DVX 300

Arctic Cat
#oem кодцена
1
3304-510
Chain Drive
2
3304-291
Sprkt Final Driven
3
3304-031
Гайка 10мм
4
3304-292
Flange Sprocket
5
3303-603
O-ring 39.8*2.2
6
3304-403
Bolt Weld 10*25
7
3305-639
Axle Shaft Rr
8
3304-294
Hub Assy Rr (inc. 9-11)
9
3304-424
Oil Seal 52*62*7
10
3304-688
Bearing Ball Radial 6008
11
3305-593
Втулка задней оси
12
3304-415
Ring Snap
13
3304-687
Bolt Flange 8*25
14
3304-518
Bolt Flange 6*55
15
3304-305
Brkt Assy Rr Caliper (inc. 16)
16
3305-259
O-ring, 76*3
17
3304-519
Пружинное стопорное кольцо
18
3304-304
Collar Rr Caliper Brkt
19
3304-015
Bolt Step Holder 8*24
20
3304-300
Hub Brake Disk (inc. One No. 5)
21
3304-301
Disk Rr Brk
22
3304-343
Collar Rr Shaft
23
3304-342
Nut Rr Shaft
25
3304-298
Caliper Assy Rr (inc. 26-42)
26
3304-318
Cover Dust
27
3303-608
Pin Lock 8mm
28
3304-325
Pin Hanger
29
3304-174
Bolt Flange 8*20
30
3304-303
Cap Bleeder
31
3304-302
Screw Bleeder
32
3304-333
Заглушка
33
3304-696
Spring Pad
34
3304-328
Bracket Assy L
35
3304-697
Pad Assy
36
3305-257
Piston, Caliper
37
3303-922
Seal Piston
38
3305-406
Пыльник
39
3305-262
Piston, Caliper
40
3305-380
Seal Piston
41
3305-377
Пыльник
42
3304-440
Socket Bolt
