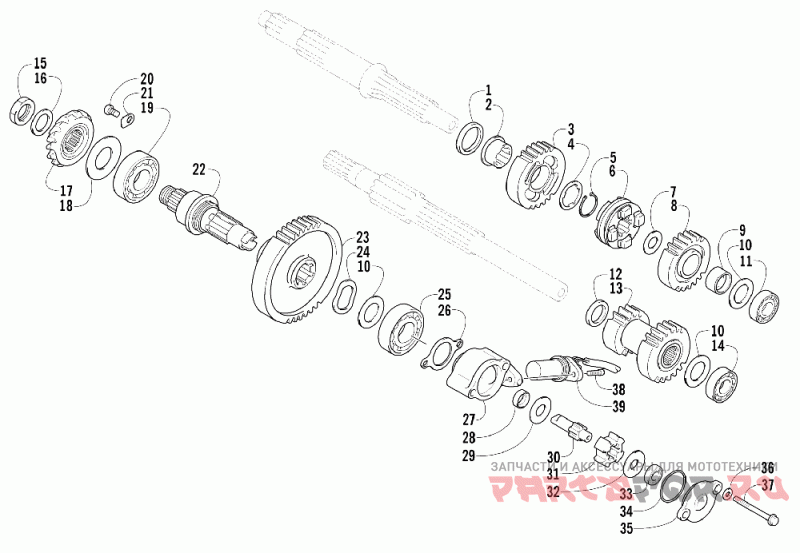

Трансмиссия

Arctic Cat 500 manual

Arctic Cat
#oem кодцена
1
3446-246
Spacer, Sub T/m Drive No.1 Gr
2
3446-247
Bushing, Sub T/m Drive No.1 Gr
3
3446-342
Gear, Sub T/m Drive No. 1
4
3423-036
Washer, 25mm
5
3423-066
Circlip, M25
6
3446-343
Dog, Sub T/m Sliding
7
3402-195
Shim, 20mm
8
3446-248
Gear, Sub T/m Drive No.2
9
3446-103
Bush, Sub T/m Drive, No, 2
10
3402-381
Washer, M20x34x1
11
3402-046
Bearing, M20x52x15
12
3423-148
Spacer, Sub T/m Idle Gear,20mm
13
3446-066
Gear, Sub T/m Idle
14
3402-979
Bearing, Center Shaft Lh
15
3423-023
Nut 20mm
16
3423-032
Washer, 20mm
17
3446-274
Gear, Sec Drive Bevel
18
3423-549
Shim Set, Sec Drive Bevel
19
3402-055
Ball Bearing , M35x72x17
20
3423-370
Screw, 6mm
21
3446-031
Обойма подшипника
22
3446-344
Shaft, Sub T/m Output
23
3446-345
Gear, Sub T/m Driven
24
3423-548
Lock, Washer
25
3402-045
Ball Bearing, M20x52x15
26
3446-244
Gasket, Odometer Gear Slv
27
3446-400
Housing, Odometer Gear
28
3006-322
Seal, Oil, 12x21x7 '02 440 Sno Pro
29
3423-617
Шайба
30
3446-402
Shaft, Odometer Gear
31
3402-837
Rotor, Speed
32
3423-767
Шайба
33
3402-980
Bearing, Gear Shaft
34
3423-766
O-ring, Gear Housing
35
3446-401
Cover, Odometer
36
3003-290
Прокладка
37
3007-505
Болт поддона
38
3423-226
Bolt, Oil Hose 6x16
39
3402-981
Датчик скорости
