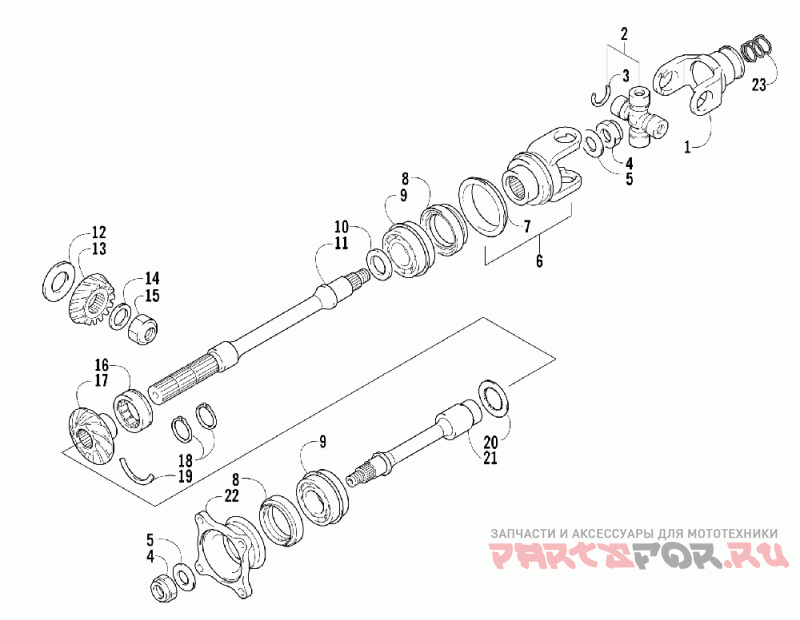

Вторичный привод в сборе

Arctic Cat 500 Auto Revised

Arctic Cat
#oem кодцена
1
3446-327
Yoke, Prop Shaft Joint
2
3402-562
Joint Set, Universal (inc. 3)
3
3423-479
Пружинное стопорное кольцо
4
3423-025
Nut, 16mm
5
3423-028
Washer, 16mm
6
3402-742
Yoke, Fr Drive Output (inc. 7)
7
3402-743
Plate, Output
8
3402-072
Oil Seal , M34x52x9
9
3403-210
Bearing, Rear Output Shaft Rr
11
3402-740
Shaft, Sec Driven Fr
12
3423-549
Shim Set, Sec Drive Bevel
13
3402-738
Gear, Sec Drive Bevel
14
3005-372
Washer, Piston Pin
15
3423-023
Nut 20mm
16
3402-515
Bearing, Sec Driven Gear,m (30x50x17)
17
3402-739
Gear, Sec Driven Bevel
18
3423-908
Circlip, Fastener
19
3423-072
C Ring, M50
20
3423-415
Washer, Sec Driven Shaft
21
3402-513
Shaft, Sec Driven Output Rr
22
3402-514
Flange, Rr Output Joint
23
1402-026
Пружина
10
3402-017
Shim, 25mm
3402-018
Shim, 25mm
3402-019
Shim, 25mm
3402-020
Shim, 25mm
3403-217
Тонкая прокладка 25x34x0.8
3402-022
Shim, 25mm
3402-023
Shim, 25mm
3402-024
Shim, 25mm
3423-421
Washer, Shift Shaft (m25x34x1.0)
3402-028
Shim, 25mm
3402-029
Shim, 25mm
3402-030
Shim, 25mm
3402-031
Shim, 25mm
18
3423-340
Circlip, Fastener (r/b 3423-908)
