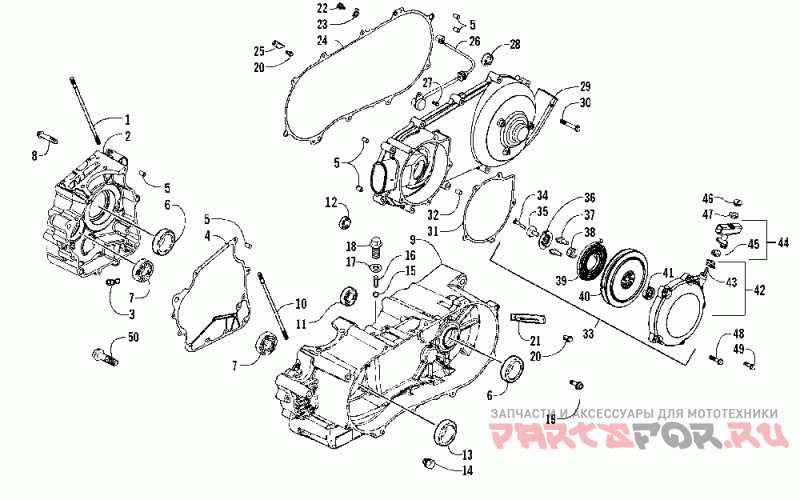

Блок цилиндров

Arctic Cat 250 Utility

Arctic Cat
#oem кодцена
1
3304-008
Bolt Stud 8mm
2
3303-626
Crank Case Comp R (inc. 3)
3
3304-065
Cone Type Plug 6*7
4
3303-628
Gasket Crank Case A
5
3303-342
Pin Dowel 10*16
6
3304-091
Oil Seal 25*40*8
7
3304-198
Brg Ball Radial 6304/20*52*15
8
3304-191
Bolt Flange Sh 6*50
9
3303-629
Crank Case Comp L
10
3304-009
Bolt B Stud 8mm
11
3304-195
Brg Radial Ball 6205
12
3304-074
Brg Needle 20*26*16
13
3304-079
Oil Seal 27*42*7
14
3304-052
Bolt Drain Plug Special
15
3304-205
Ball Steel 12
16
3304-063
Spg Bolt Seat Inner
17
3304-021
Washer Bolt Seat
18
3304-109
Bolt Seat Ball Stopper
19
3303-365
Bolt Flange 8*12
20
3303-381
Bolt Flange Sh 6*12
21
3304-158
Clip 2*100
22
3304-005
Bolt Special 6*10 96600-08010 N.c.
23
3304-039
Plate Brg Holder
24
3303-642
Gasket L Cover
25
3303-843
Clamper Wire Harness
26
3303-856
Sw Assy Gear Change
27
3304-187
Bolt Flange 6*10
28
3304-073
Bearing Ball Radial
29
3303-632
Cover Left
30
3304-003
Bolt Flange Shf 6*28
31
3304-101
Gasket Starting Cover
32
3303-341
Pin Dowel 8*14
33
3305-459
Recoil Starting (inc. 34-47)
34
3304-113
Bolt Hex 5*25
35
3303-651
Втулка
36
3303-649
Rachet Guide Staring
37
3303-646
Rachet Starting
38
3303-647
Spring Rachet Guide
39
3303-645
Spiral Spg Starting
40
3305-346
Reel Starting
41
3303-648
Spacer Starting
42
3303-639
Cover Starting (inc. 43)
43
3303-650
Rope, Starting
44
3303-652
Holder Assy Starting (inc. 45)
45
3304-103
O-ring 18.1*3
46
3305-269
Cover Assy Holder
47
3304-137
Washer Plain 6mm
48
3304-190
Bolt Flange Sh 6*32
49
3303-384
Bolt Flange Sh 6*25
50
3304-004
Bolt Flange Shf 6*40
