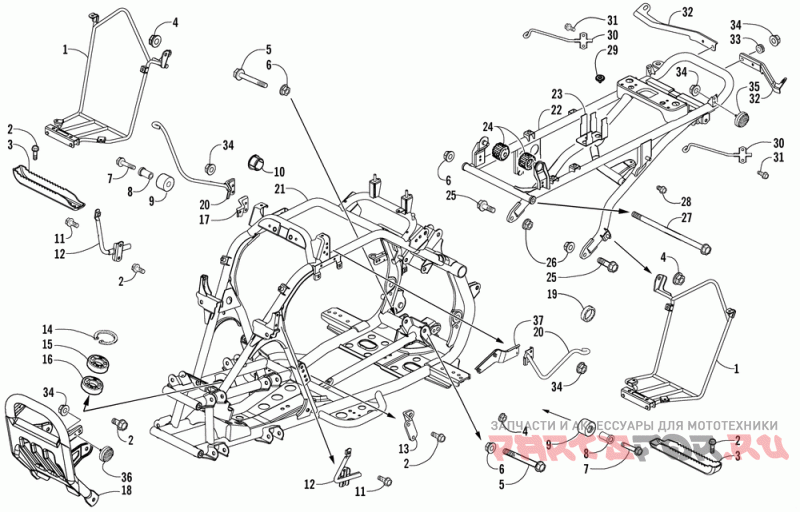

Frame and related parts assembly

Arctic Cat DVX 250

Arctic Cat
#oem кодцена
1
3304-354
Stay R Rr Fender
3304-356
Stay L Rr Fender
2
3304-543
Bolt Flange 8*16
3
3304-346
Rnfct Floor
4
3303-332
Nut Flange 8mm
5
3304-183
Винт M10x1.25x85
6
3304-031
Гайка 10мм
7
3304-408
Bolt Flange 8*38
8
3304-701
Collar Chain Rubber
9
3304-362
Rubber Chain Drive
10
3304-658
Cap Pipe
11
3304-553
Bolt Flange 6*12
12
3304-352
Stay R Fr Fender
3304-353
Stay L Fr Fender
13
3303-938
Bracket Eng Hanger
14
3304-150
Cir Clip In 40
15
3304-203
Bearing Ball Radial 6203/17*40*12
16
3303-298
Oil Seal 22*35*7
17
3303-226
Collar Fr Fender
18
3305-270
Pipe Comp Fr Bumper
19
3304-064
Dust Seal 27*40*6
20
3304-350
Stay Lh Fr Fender Support
3304-351
Stay Rh Fr Fender Support
22
3305-271
Pipe Comp Frame Rr
24
3304-245
Cushion Seat
25
3304-181
Bolt Flange 10*25
26
3303-333
Nut Flange 10mm
27
3304-184
Bolt Flange 10*160
28
3304-435
Bolt Flange 10*12
29
3304-057
Clip Fender
30
3304-348
Stay R Rr Fender Support
3304-349
Stay L Rr Fender Support
31
3305-344
Bolt Flange 6*16
32
3304-344
Rr Stay Lh Rear Fender
3304-345
Rr Stay Rh Rear Fender
33
3303-239
Rubber Tail Light
34
3304-654
Nut Flange 6mm
35
3305-273
Reflex Reflector (red)
36
3305-272
Reflex Reflector (amber)
21
3305-270
Pipe Comp Fr Bumper 1
NULL
3304-356
Stay L Rr Fender 1
NULL
3304-353
Stay L Fr Fender 1
NULL
3304-351
Stay Lh Fr Fender Support 1
NULL
3304-349
Stay L Rr Fender Support 1
NULL
3304-345
Rr Stay Rh Rear Fender 1
