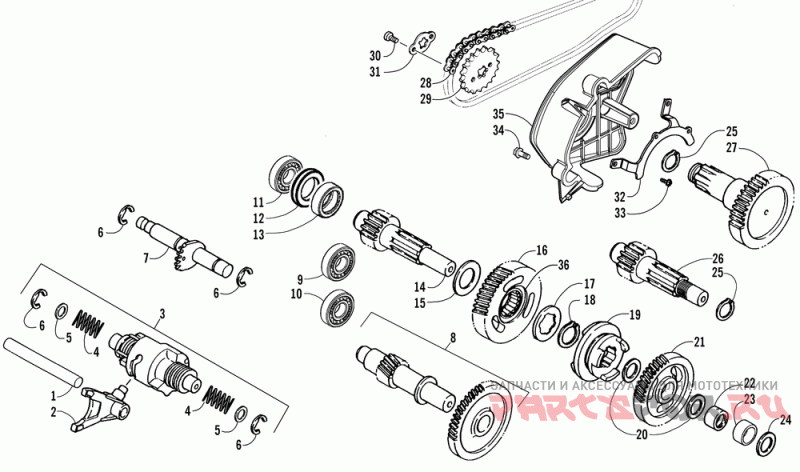

Трансмиссия

Arctic Cat DVX 250

Arctic Cat
#oem кодцена
1
3304-513
Shaft Gear Shift Fork Guide
2
3304-267
Fork Gear Shift
3
3304-268
Drum Assy Gear Shift (inc. 4-5 And Two No. 6)
4
3304-700
Spring Drum
5
3304-412
Washer Thrust 14mm
6
3304-153
E Ring 12
7
3304-269
Spindle Comp Drum Shift
8
3304-261
Gear Comp Counter
9
3304-198
Brg Ball Radial 6304/20*52*15
10
3304-699
Brg Ball Radial 6204
11
3304-195
Brg Radial Ball 6205
12
3304-425
Oil Seal 24.8*52.2*7
13
3304-422
Brg Needle 30*42*23
14
3304-259
Shaft Main
15
3304-044
Washer Thrust 25mm
16
3304-263
Gear, Backward
17
3304-045
Washer Spline 25mm
18
3304-056
Set Ring 23mm
19
3304-264
Shift Main
20
3304-413
Washer Thrust 20mm B
21
3303-795
Gear Forward
22
3304-509
Collar 20*22*11
23
3304-508
Collar 20*25*11
24
3304-042
Washer Thrust 20mm
25
3304-147
Cir Clip Ex 25mm
26
3304-260
Shaft Drive
27
3304-262
Shaft Final
28
3304-510
Chain Drive
29
3304-265
Sprocket Drive 14t
30
3303-307
Bolt Hex 6*10
31
3304-266
Plate A2 Fixing
32
3304-515
Stay Chain
33
3304-650
Screw Tapping 5*16
34
3303-383
Bolt Flange Sh 6*20
35
3304-286
Cover Chain
36
3304-423
Brg Needle 25*33*16
