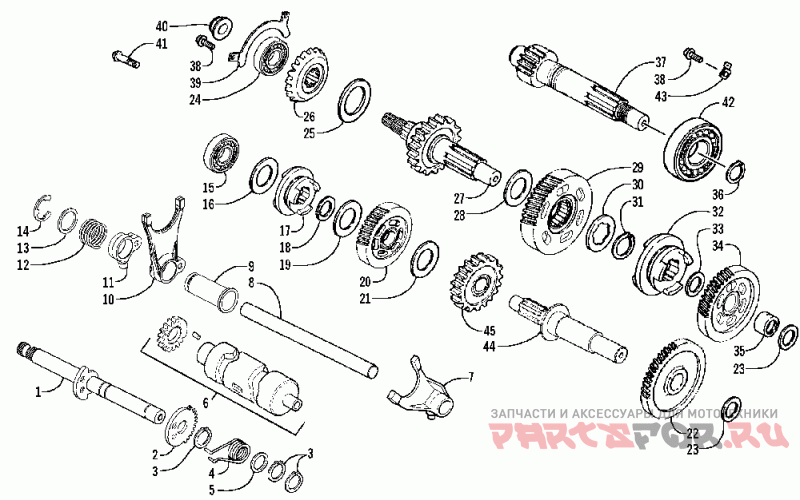

Трансмиссия

Arctic Cat 250 Utility

Arctic Cat
#oem кодцена
1
3303-812
Spindle Comp Drum Shift
2
3303-815
Gear Change Handle
3
3304-153
E Ring 12
4
3303-813
Spring Gear Shift Return
5
3304-036
Washer Thrust 14*28*2
6
3304-623
Drum Assy Gear Shift(use 0437-058)
7
3303-805
Fork L Gear Shift
8
3303-806
Shaft Gear Shift Fork Guide
9
3303-807
Spring Fork
10
3303-804
Fork Right Gear Shift
11
3303-808
Guide Right Fork
12
3304-821
Spring-drum
13
3304-051
Dia Washer 17*22
14
3304-154
E Ring 15 Special
15
3304-197
Brg Radial Ball 6303
16
3304-637
Washer Thrust 17.2mm
17
3303-799
Shift Forward
18
3304-638
Cir Clip Ex 22
19
3304-046
Washer Spline 20mm
20
3304-621
Gear Assy Forward
21
3305-553
Washer Thrust 22.2*33*2.6
22
3303-793
Gear Counter
23
3304-042
Washer Thrust 20mm
24
3304-194
Brg Radial Ball 6009
26
3303-801
Gear Bevel Drive
27
3303-784
Shaft Main
28
3304-044
Washer Thrust 25mm
29
3304-622
Gear Assy Lower Driven
30
3304-045
Washer Spline 25mm
31
3304-056
Set Ring 23mm
32
3303-798
Shift Reverse&lower(use 0437-058)
33
3304-043
Washer Thrust 30*20*3
34
3303-797
Gear Backward
35
3304-074
Brg Needle 20*26*16
36
3304-147
Cir Clip Ex 25mm
37
3303-791
Shaft Drive
38
3304-005
Bolt Special 6*10 96600-08010 N.c.
39
3304-041
Plate Brg Hold
40
3304-033
Nut 18mm
41
3304-112
Bolt Hex 6*20
42
3304-067
Brg Ball 6305
43
3304-040
Plate Brg Holder
44
3303-792
Shaft Counter
45
3303-800
Gear Lower Drive
25
3304-525
Shim Drive Bevel Gear A
3304-526
Shim Drive Bevel Gear B
3304-527
Shim Drive Bevel Gear C
3304-528
Shim Drive Bevel Gear D
3304-529
Shim Drive Bevel Gear E
3304-530
Shim Drive Bevel Gear F
3304-531
Shim Drive Bevel Gear G
3304-532
Shim Drive Bevel Gear H
3304-533
Shim Drive Bevel Gear I
3304-534
Shim Drive Bevel Gear J
3304-535
Shim Drive Bevel Gear K
3304-536
Shim Drive Bevel Gear L
6
0437-058
Kit, Transmission 250
17
0437-058
Kit, Transmission 250
32
0437-058
Kit, Transmission 250
