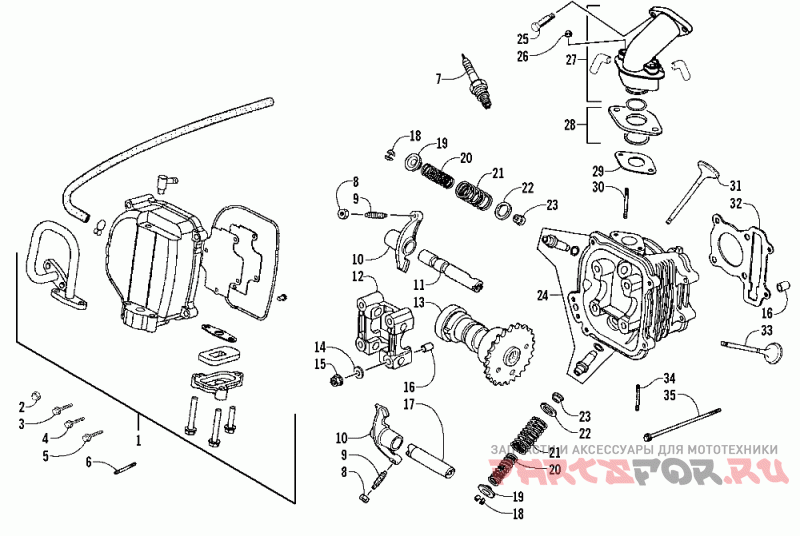

Головка цилиндров

Arctic Cat DVX 90

Arctic Cat
#oem кодцена
1
3303-020
Cover Comp Head
2
3304-031
Гайка 10мм
3
3304-010
Bolt Stud 8*32
4
3303-362
Bolt Flange 6*35
5
3303-363
Bolt Flange 6*50
7
0217-726
Spark Plug, Cr7hsa
8
3304-026
Nut Tappet Adjusting
9
3304-007
Screw Tappet Adjusting
10
3303-031
Arm Valve Rocker
11
3303-032
Shaft Comp In Rocker Arm
12
3303-018
Holder Cam Shaft **(1) C.2004.07.01
13
3303-029
Shaft Comp Cam **9000 C.2002.05.09
14
3304-048
Washer 8mm
15
3303-332
Nut Flange 8mm
16
3303-342
Pin Dowel 10*16
17
3303-033
Shaft Exh Rocker Arm
18
3303-044
Клапан С Чекой
19
3303-042
Retainer Valve Spring
20
3303-041
Spg Valve Inner **kbf-9000 C.2004.11.17
21
3303-040
Spg Valve Outer **kbf-9000 C.2004.11.17
22
3303-043
Seat Valve Spg Outer
23
3303-657
Seal Valve Stem
24
3303-016
Head Comp Cyln
25
3303-384
Bolt Flange Sh 6*25
26
3303-331
Nut Flange 6mm
27
3303-059
Pipe Comp Inlet
28
3303-511
Insulator Carb Assy
30
3303-310
Bolt Stud 6*50
31
3303-039
Valve Exhaust
32
3303-019
Gasket Cylinder Head
33
3303-038
Valve Inlet **(0) C.2001.08.01
35
3303-389
Bolt Flange 6*95
6
3303-249
Bolt Stud 8*32
34
3303-249
Bolt Stud 8*32
