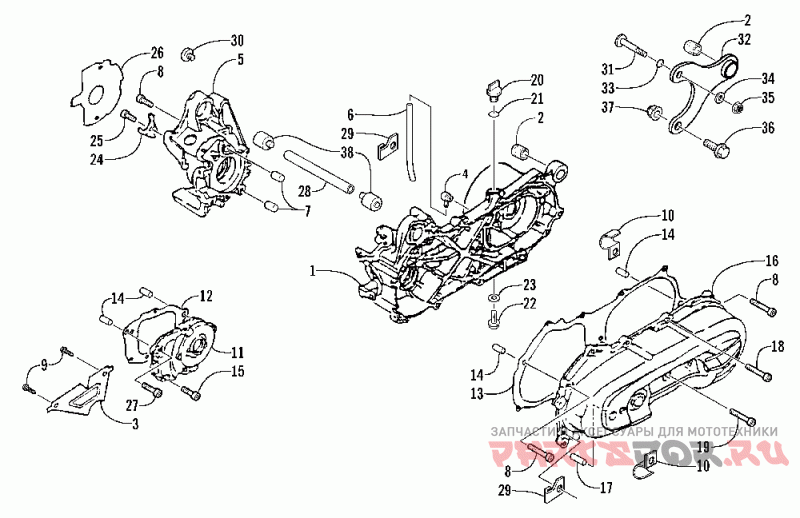

Блок цилиндров

Arctic Cat 50 Y-6

Arctic Cat
#oem кодцена
1
3301-530
Left Crankcase(rev.5)
2
3301-427
Резиновая Втулка
3
3301-011
Plate L Cover
4
3301-057
Breather Hose Head
5
3301-529
Right Crankcase(rev.4)
6
3301-480
Шланг
7
3301-365
Палец
8
3301-292
Hex Socket Bolt
9
3301-321
Tapping Screw Truss Head Phillips
10
3301-013
Зажим
11
3301-097
Mission Cover
12
3301-098
Mission Cover Gasket
13
3301-014
Crankcase Cover Gasket
14
3301-364
Палец
15
3301-289
Hex Socket Bolt
16
3301-010
Left Crankcase Cover
17
3301-426
Shaft Idler
18
3301-290
1hex Socket Bolt
19
3301-293
Hex Socket Bolt
20
3301-037
Oil Plug
21
3301-297
O- Ring
22
3301-394
Hex Washer Face Bolt
23
3301-342
Copper Plain Washer
24
3301-003
Oil Seal Bracket
25
3301-287
Hex Socket Bolt
26
3301-004
Generator Gasket
27
3301-291
Hex Socket Bolt
28
3301-005
Crankcase Fix Shaft
29
3301-012
Carburetor Tube Bracket
30
3301-002
Protect Shroud
31
3301-198
Fix Shaft
32
3301-007
Crankcase Bracket
33
3301-296
O- Ring
34
3301-343
Plain Washer
35
3301-330
Hex Flange Nut With Serration
36
3301-406
Hex Washer Face Bolt
37
3301-332
Hex Flange Nut With Serration
38
3301-008
Втулка
