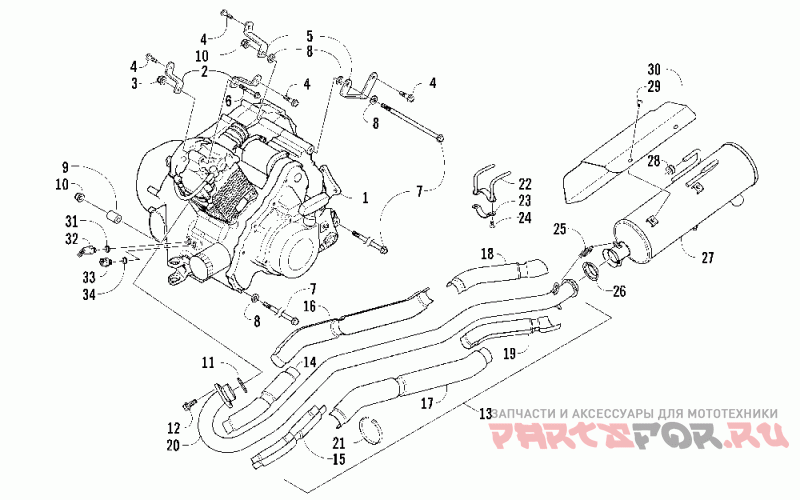

Двигатель и глушитель

Arctic Cat 400 TBX Auto

Arctic Cat
#oem кодцена
1
0462-040
Engine Assy(400afk2 From 0463-040)
2
1506-201
Bracket, Engine Mount - Rh Black (400)
1506-625
Bracket, Engine Mount-lh (painted Black)
3
8424-802
Гайка
4
8408-816
Screw, Cap-hfh M8x1.25x16 Cl8.8 Z&y
5
1506-586
Bracket, Engine Mount-black
6
8408-860
Винт M8x1.25x60
7
0423-405
Screw, Cap-hfh M10x1.25x215 Cl10.9 Z&y
8
0423-426
Washer, Flat-.438x.875x.125
9
0423-042
Втулка
10
8428-002
Гайка M10-1.25
11
0412-007
Seal, Exhaust Pipe
12
8408-820
Винт M8x1.25x20
13
0512-244
Pipe, Exhaust-assembly (inc. 14-24)
14
0412-292
Shield, Exhaust-upper
15
0412-293
Shield, Exhaust-lower
16
0412-294
Shield, Exhaust-inner
17
0412-295
Shield, Exhaust-outer
18
0412-282
Shield, Exhaust
19
0412-283
Shield, Exhaust
20
0512-206
Pipe, Exhaust-black
21
0423-317
Clamp, Hose -32/50 (norma 962)
22
0512-200
Hanger, Pipe-exhaust-black
23
0412-288
Bracket, Pipe-black
24
8477-620
Screw, Mach-tstrh M6x1.0x20 Z&blk
25
0612-668
Пружина
26
0612-188
Gasket, Exh.-tail Pipe
27
0512-195
Muffler, Black
28
0412-215
Bushing, Muffler
29
8477-610
Винт M6x1.0x10
30
0412-218
Кожух защитный глушителя
31
3402-013
Прокладка M16x22x2
32
3430-033
Switch, Cool Fan
33
3530-037
Switch, Oil Lamp
34
3402-556
Прокладка
9
1423-025
Втулка
28
0412-577
Bushing, Muffler
