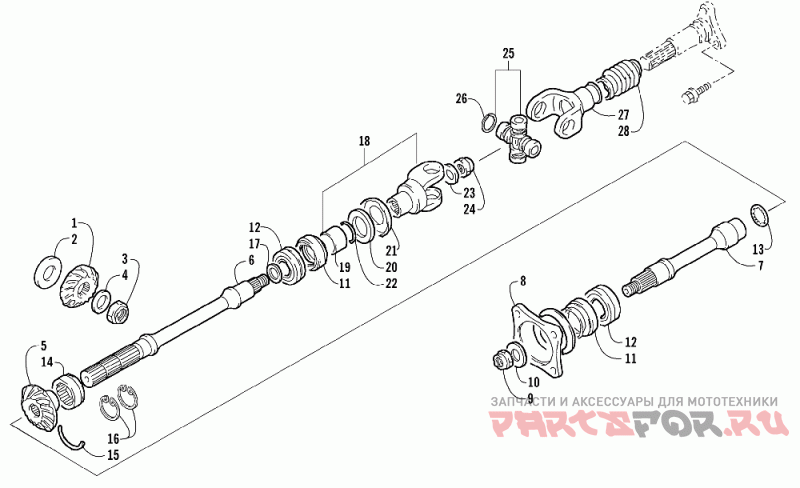

Вторичный привод в сборе

Arctic Cat 500 FIS Auto

Arctic Cat
#oem кодцена
1
3402-551
Gear, Sec Driven Bevel
2
3423-549
Shim Set, Sec Drive Bevel
3
3423-023
Nut 20mm
4
3005-372
Washer, Piston Pin
5
3402-819
Kit, Bevel Gear
6
3402-512
Shaft, Sec Driven Front
7
3402-513
Shaft, Sec Driven Output Rr
8
3402-514
Flange, Rr Output Joint
9
3423-025
Nut, 16mm
10
3423-028
Washer, 16mm
11
3402-072
Oil Seal , M34x52x9
12
3403-210
Bearing, Rear Output Shaft Rr
13
3423-415
Washer, Sec Driven Shaft
14
3402-515
Bearing, Sec Driven Gear,m (30x50x17)
15
3423-072
C Ring, M50
16
3423-908
Circlip, Fastener
18
3435-090
Yoke, Fr Drive Output & Fr Bevel Gear (inc. 19-22)
19
3435-029
Collar, Output Oil Seal
20
3435-030
Plate, Output Yoke Oil Seal
21
3423-035
Washer, 30mm
22
3423-060
O Ring D:1 Id:28
25
3435-011
Joint Set, Universal (inc. 26)
26
3423-067
Circlip, M25
27
3402-516
Yoke, Propeller Shaft Joint
28
0402-967
Boot, Prop Shaft (short)
12
3402-067
Ball Bearing , M25x52x21 (r/b 3403-210)
16
3423-340
Circlip, Fastener (r/b 3423-908)
17
3402-017
Shim, 25mm
3402-018
Shim, 25mm
3402-019
Shim, 25mm
3402-020
Shim, 25mm
3403-217
Тонкая прокладка 25x34x0.8
3402-022
Shim, 25mm
3402-023
Shim, 25mm
3402-024
Shim, 25mm
3423-421
Washer, Shift Shaft (m25x34x1.0)
3402-028
Shim, 25mm
3402-029
Shim, 25mm
3402-030
Shim, 25mm
3402-031
Shim, 25mm
28
3402-518
Boot, Propeller Shaft(r/b 0402-967)
23
3423-028
Washer, 16mm
24
3423-025
Nut, 16mm
