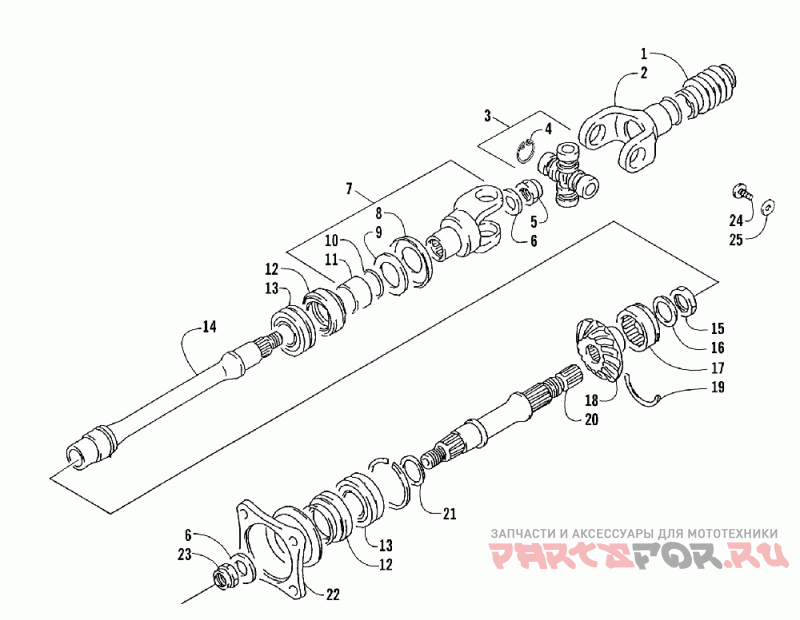

Secondary drive assembly (4x4)

Arctic Cat 400 500 FIS Manual

Arctic Cat
#oem кодцена
1
0402-967
Boot, Prop Shaft (short)
2
3435-002
Yoke Comp, Prop Sft Joint
3
3435-011
Joint Set, Universal (inc. 4)
4
3423-067
Circlip, M25
5
3423-025
Nut, 16mm
6
3423-028
Washer, 16mm
7
3435-090
Yoke, Fr Drive Output & Fr Bevel Gear (inc. 8-11)
8
3423-035
Washer, 30mm
9
3435-030
Plate, Output Yoke Oil Seal
10
3423-060
O Ring D:1 Id:28
11
3435-029
Collar, Output Oil Seal
12
3402-072
Oil Seal , M34x52x9
13
3403-210
Bearing, Rear Output Shaft Rr
14
3446-239
Shaft, Sec.driven, Front
15
3423-136
Nut, Sec Driven Gear,22mm
16
3423-137
Washer, Sec Driven Gear-m22x36
17
3402-515
Bearing, Sec Driven Gear,m (30x50x17)
18
3446-222
Gear, Sec Driven Bevel
19
3423-072
C Ring, M50
20
3446-426
Shaft, Sec Driven Output, Rr
22
3402-514
Flange, Rr Output Joint
24
3007-574
Screw, 6x12
25
3423-135
Retainer, Cntr Shaft Brg-m6x16
1
3402-518
Boot, Propeller Shaft(r/b 0402-967)
13
3402-067
Ball Bearing , M25x52x21 (r/b 3403-210)
20
3446-240
Shaft, Sec.driven Output Rr(r/b 3446-426)
21
3402-017
Shim, 25mm
3402-018
Shim, 25mm
3402-019
Shim, 25mm
3402-020
Shim, 25mm
3403-217
Тонкая прокладка 25x34x0.8
3402-022
Shim, 25mm
3402-023
Shim, 25mm
3402-024
Shim, 25mm
3423-421
Washer, Shift Shaft (m25x34x1.0)
3402-028
Shim, 25mm
3402-029
Shim, 25mm
3402-030
Shim, 25mm
3402-031
Shim, 25mm
24
3004-552
Screw, M6x12 (r/b 3007-574)
23
3423-025
Nut, 16mm
