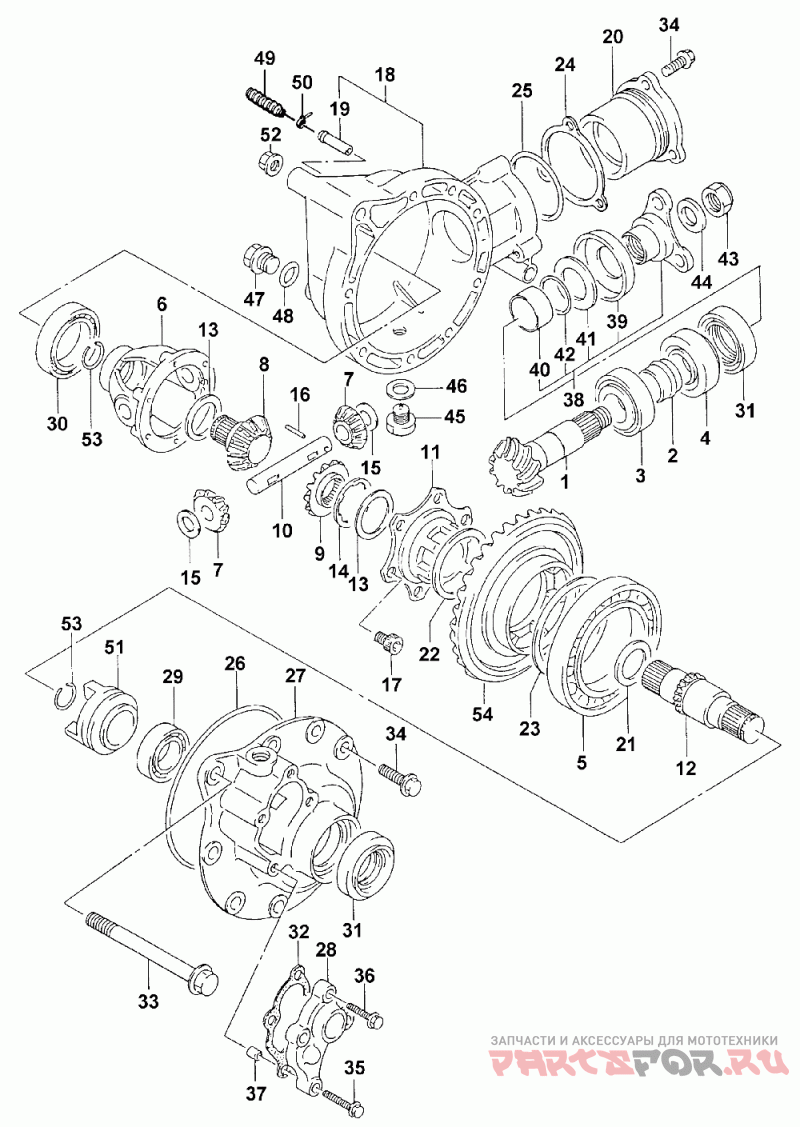

Differential gear assembly (4x4 only)

Arctic Cat 300

Differential gear assembly (4x4 only)

#

oem код

название

цена

1

Gear, Final Bevel

Gear, Final Bevel

2

Spacer, 25mm

Spacer, 25mm

3

Bearing Taper Roller, M25x52x19.25

Bearing Taper Roller, M25x52x19.25

4

Bearing, Taper Roller (m25x52x16.25)

Bearing, Taper Roller (m25x52x16.25)

5

Bearing, Ball (m70x110x13)

Bearing, Ball (m70x110x13)

6

Case, Fr Diff

Case, Fr Diff

7

Шестерня

Шестерня

8

Gear, Fr Dif

Gear, Fr Dif

9

Gear, Rear Diff

Gear, Rear Diff

10

Shaft, Diff Side Pinion

Shaft, Diff Side Pinion

11

Hub, Bevel Gear

Hub, Bevel Gear

12

Shaft, Fr.driven Output

Shaft, Fr.driven Output

14

Washer, M29.1x41x0.4

Washer, M29.1x41x0.4

15

Washer, 13.3x25x0.85

Washer, 13.3x25x0.85

16

Pin, Pinion Shaft, 6mm

Pin, Pinion Shaft, 6mm

17

Bolt (8x16)

Bolt (8x16)

18

Housing, Fr Diff Gear (inc. 19)

Housing, Fr Diff Gear (inc. 19)

19

Union, M8

Union, M8

20

Housing, Fr Drive Bevel Gr

Housing, Fr Drive Bevel Gr

21

Washer, M25x35

Washer, M25x35

22

Shim Set, Fr Driven Bvl Gr

Shim Set, Fr Driven Bvl Gr

23

Shim Set, Driven Gear Bearing

Shim Set, Driven Gear Bearing

25

O Ring D:2.4 Id:62.6

O Ring D:2.4 Id:62.6

26

O Ring D:2.4 Id:131.4

O Ring D:2.4 Id:131.4

27

Case, Fr Driven Gear Brg

Case, Fr Driven Gear Brg

28

Cover, Gear Case

Cover, Gear Case

29

Brg, Fr Driven Output(ball)(6.34mm Dia)

Brg, Fr Driven Output(ball)(6.34mm Dia)

30

Ball Bearing , M40x62x12

Ball Bearing , M40x62x12

31

Oil Seal , M34x52x9

Oil Seal , M34x52x9

32

Gasket, Gear Case

Gasket, Gear Case

33

Bolt, 10x110

Bolt, 10x110

34

Bolt, Bearing Case-m8x25

Bolt, Bearing Case-m8x25

35

Болт

Болт

36

Bolt, Cylinder Head Cover No. 1

Bolt, Cylinder Head Cover No. 1

37

Палец

Палец

38

Flange, Fr Drive Bevel Gr (inc. 39-42)

Flange, Fr Drive Bevel Gr (inc. 39-42)

39

Washer, 30mm

Washer, 30mm

40

Collar, Output Oil Seal

Collar, Output Oil Seal

41

Plate, Output Yoke Oil Seal

Plate, Output Yoke Oil Seal

42

O Ring D:1 Id:28

O Ring D:1 Id:28

43

Nut, Fr Drive Bvl Gr,16mm

Nut, Fr Drive Bvl Gr,16mm

44

Washer, 16mm

Washer, 16mm

45

Пробка, Дренажный

Пробка, Дренажный

46

Gasket, Oil Plug,m13.8x18.8x0.4

Gasket, Oil Plug,m13.8x18.8x0.4

47

Plug, Hex Head,16mm

Plug, Hex Head,16mm

48

O Ring D:2.4 Id:16.8

O Ring D:2.4 Id:16.8

49

Bladder, Case

Bladder, Case

50

Стопорное кольцо

Стопорное кольцо

51

Dog Diff Lock Sliding

Dog Diff Lock Sliding

52

Nut, 10mm

Nut, 10mm

53

Ring, M22

Ring, M22

54

Gear, Driven Bevel

Gear, Driven Bevel

13

Washer, M29x40x0.8

Washer, M29x40x0.8

13

Washer, T:1.0, 29mm

Washer, T:1.0, 29mm

13

Washer, M29x40x1.2

Washer, M29x40x1.2

45

Plug, 14mm (rb 3403-021)

Plug, 14mm (rb 3403-021)

24

Shim Set, Driven Gear Bearing

Shim Set, Driven Gear Bearing

34

Болт

Болт
