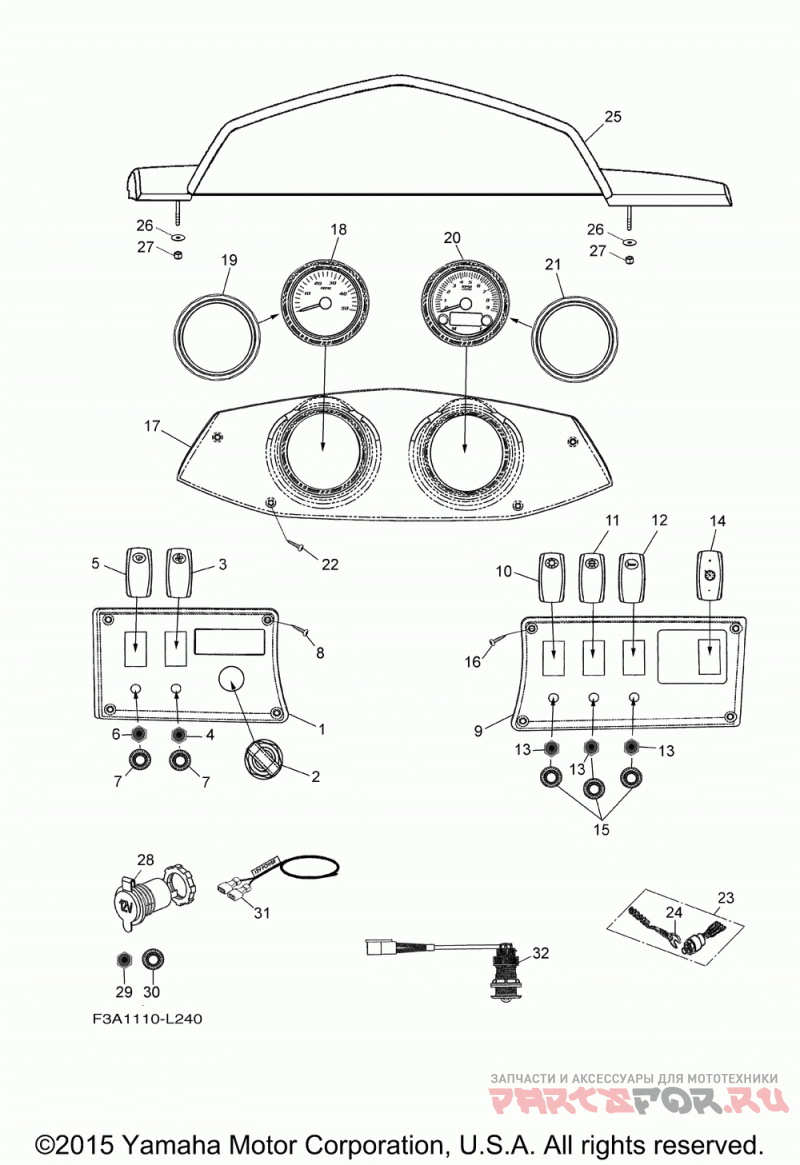

Электрика 4

Yamaha AR190 RX1800ARB

Yamaha
#oem кодцена
2
F3A-U8037-00-00
Key, Switch Assy-sin
3
F1C-U8022-00-00
Switch Assy, Blowe
4
F1C-U8348-20-00
Breaker (4 Amp) 4a
5
F1C-U8012-00-00
Bilge Pump Switch As
6
F1C-U8348-10-00
Breaker (3 Amp) 3a
7
F0R-U8188-10-00
Circuit Breaker Cove
8
90169-08SA3-00
Screw Truss Head
10
F1C-U8026-00-00
R.light Sw.assy 00
11
F1C-U8029-00-00
B.stern Light Sw.
12
F1C-U8011-00-00
Horn Switch Assy
13
F1C-U8348-00-00
Breaker (5 Amp) 5a
14
F3A-U8090-00-00
Реле
15
F0R-U8188-10-00
Circuit Breaker Cove
16
90169-08SA3-00
Screw Truss Head
18
F3A-U822N-00-00
Speedometer
19
F2D-U8238-00-00
Крепление спидометра
20
F3A-U8245-10-00
Tachometer
21
F2D-U8238-00-00
Крепление спидометра
22
90169-08SA3-00
Screw Truss Head
23
F2A-6834C-00-00
Lanyard, Stop Switch
24
682-82556-00-00
Шнур остановки двигателя
25
F3A-U8262-10-00
Cover Meter
26
90201-10S00-00
Washer, #10 Flat (5 Per Pack)
27
90185-08S00-00
Nut, 8-32 Nylox
28
F0K-U8284-00-00
Socket, 12 Acc
29
F1C-U8348-30-00
Breaker (10amp) 10a
30
F0R-U8188-10-00
Circuit Breaker Cove
31
F3A-U8294-00-00
Wire Lead 1
32
F3A-U8K1W-00-00
Speed Sensor
