Электрика 3 для катеров Yamaha 242 LIMITED S CALIFORNIA SAT1800GLP/SAT1800HLP/SAT1800KLP (2015)

Москва и регионы России

Электрика 3

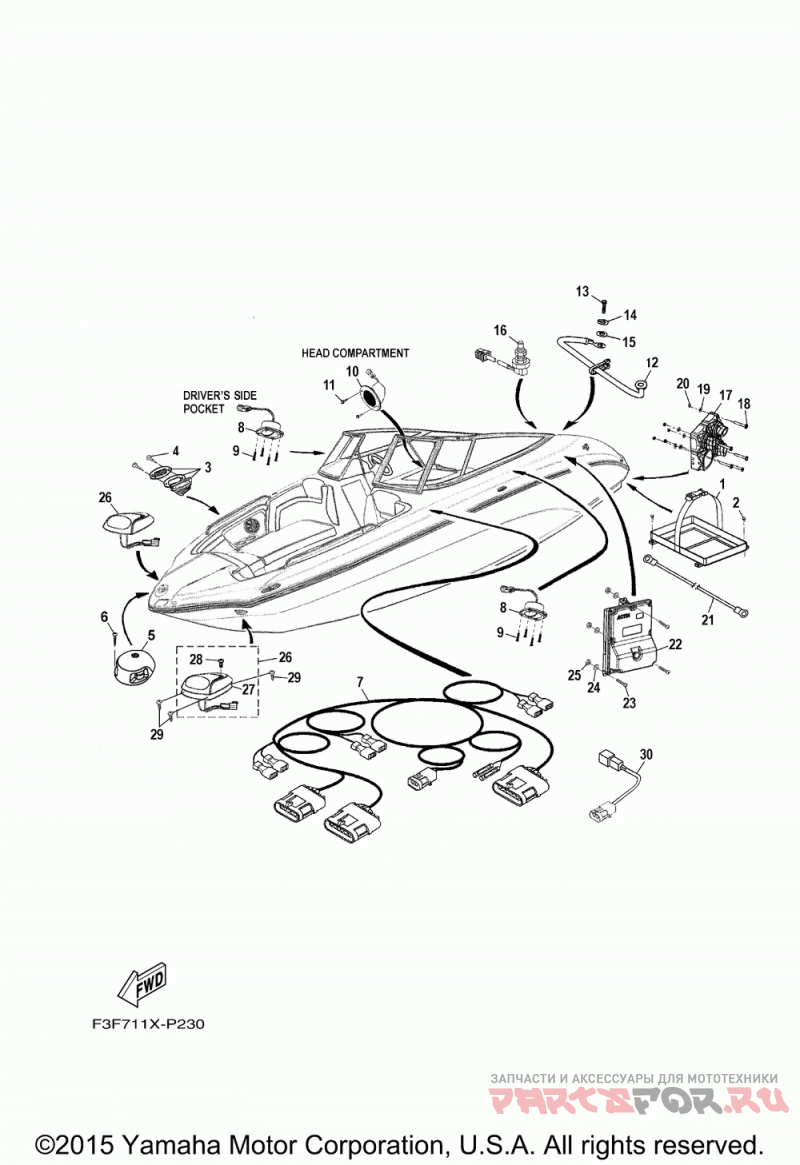

Yamaha 242 LIMITED S CALIFORNIA SAT1800GLP/SAT1800HLP/SAT1800KLP

Электрика 3

#

oem код

название

цена

1

F2D-U8210-00-00

Battery Case Assy

Battery Case Assy

2

Screw, #10 X 3/4"

Screw, #10 X 3/4"

3

F3H-U8304-10-00

Single Horn Assy (st

Single Horn Assy (st

4

Шуруп

Шуруп

5

F3H-U8130-00-00

Bow Light Assy.

Bow Light Assy.

6

Screw, #8 X 5/8"

Screw, #8 X 5/8"

7

F3F-U827L-10-00

Wire Harness 9

Wire Harness 9

8

F3H-U8124-00-00

Light, Room 1

Light, Room 1

9

Screw, #6 X 3/4 Pfh

Screw, #6 X 3/4 Pfh

10

F2A-U8124-00-00

Light, Room 1

Light, Room 1

11

Screw, #8 X 5/8"

Screw, #8 X 5/8"

12

F0R-U827J-00-00

Wire Harness 7

Wire Harness 7

13

Болт

Болт

14

Гровер

Гровер

15

Washer, Plate (10 Per Pack)

Washer, Plate (10 Per Pack)

16

F1C-6834B-00-00

Реле

Реле

17

F3H-U8314-00-00

Switch, Battery

Switch, Battery

18

Винт

Винт

19

Washer, #8 Flat (10 Per Pack)

Washer, #8 Flat (10 Per Pack)

20

Nut, 8-32 Nylox

Nut, 8-32 Nylox

21

F2A-U827J-10-00

Cable, Battery Negat

Cable, Battery Negat

22

F3F-U8353-00-00

Switch, Control

Switch, Control

23

Screw, 1/4-20 X 1

Screw, 1/4-20 X 1

24

Washer, 1/4" Flat

Washer, 1/4" Flat

25

Nut, 1/4-20

Nut, 1/4-20

26

F3F-U8130-00-00

Bow Light Assy.

Bow Light Assy.

28

Винт

Винт

29

Screw, #8 X 3/4" (5 Per Pack)

Screw, #8 X 3/4" (5 Per Pack)

30

F3F-U827E-00-00

Wire, Harness 3

Wire, Harness 3
