Сидения

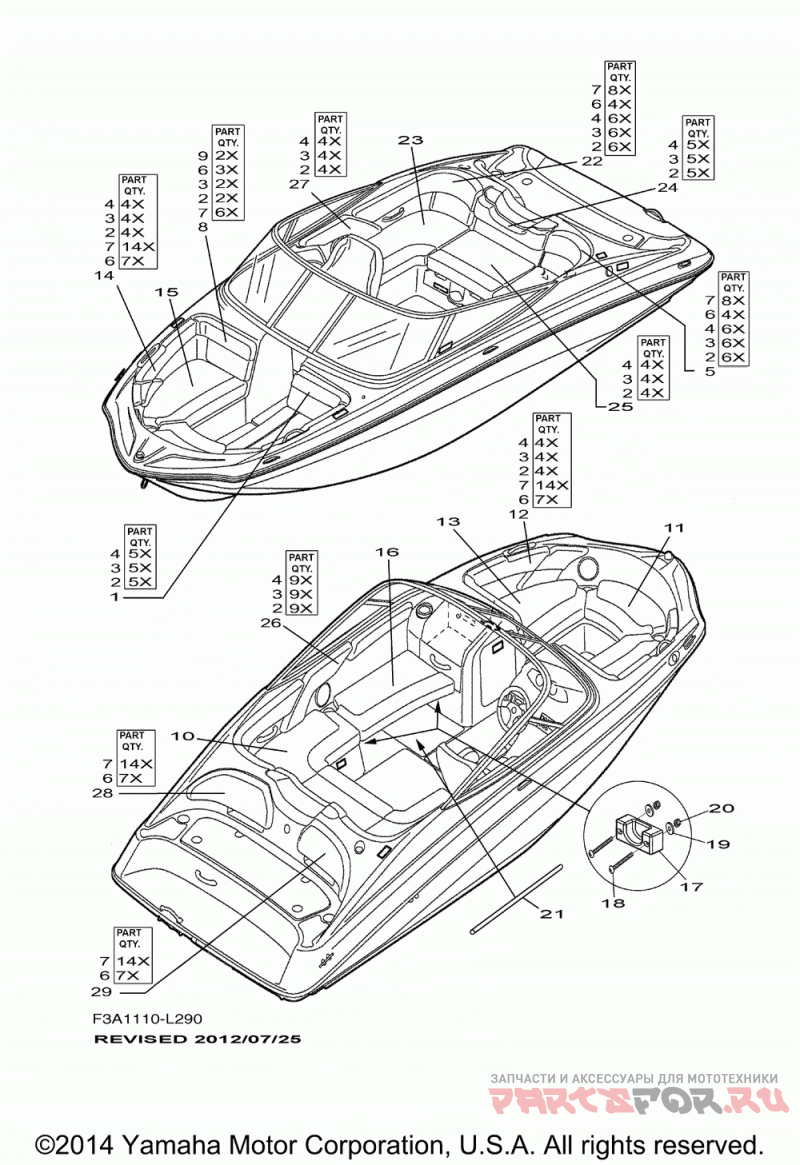

Yamaha AR190 EARLY RX1800BMC/RX1800AMC

Yamaha
#oem кодцена
1
F3A-U3796-01-00
Back Rest 3
2
90209-14SA3-00
Washer, Fender Un
3
90204-14S00-00
Washer, 1/4" Lock Un
4
90170-14S00-00
Nut, 1/4-20 Un
5
F3A-U3791-01-00
Back Rest 1
6
F3A-U5195-00-00
Clip, 1 Un
7
90167-08S10-00
Screw, #8 X 5/8" Un
8
F3A-U3798-01-00
Back Rest, 4
9
90175-14SA2-00
Гайка
10
F3A-U371D-01-00
Cushion 1
11
F3A-U35A3-01-00
Cushion, Fore 3
12
F3A-U35B1-01-00
Backrest Front, Port
13
F3A-U35A1-01-00
Cushion, Fore 1
14
F3A-U35B2-01-00
Backrest Front, Stbd
15
F3A-U35A2-01-00
Cushion Seat, Front
16
F3A-U372D-00-00
Cushion, 3
17
F1C-U3748-30-00
Bracket, Seat Fitt
18
90152-10S36-00
Шуруп
19
90209-10SB1-00
Шайба
20
90185-10S00-00
Гайка
21
F3A-U491F-00-00
Pipe Pole
22
F3A-U3795-01-00
Backrest 2
23
F3A-U371E-01-00
Cushion 2
24
F3A-U3766-01-00
Backrest 1
25
F3A-U3724-10-00
Cushion Seat, Rear
26
F3A-U36A1-01-00
Мягкая набивка
27
F3A-U36A2-01-00
Площадка
28
F3A-U521C-01-00
Pad, 1
29
F3A-U521D-01-00
Pad, 2
